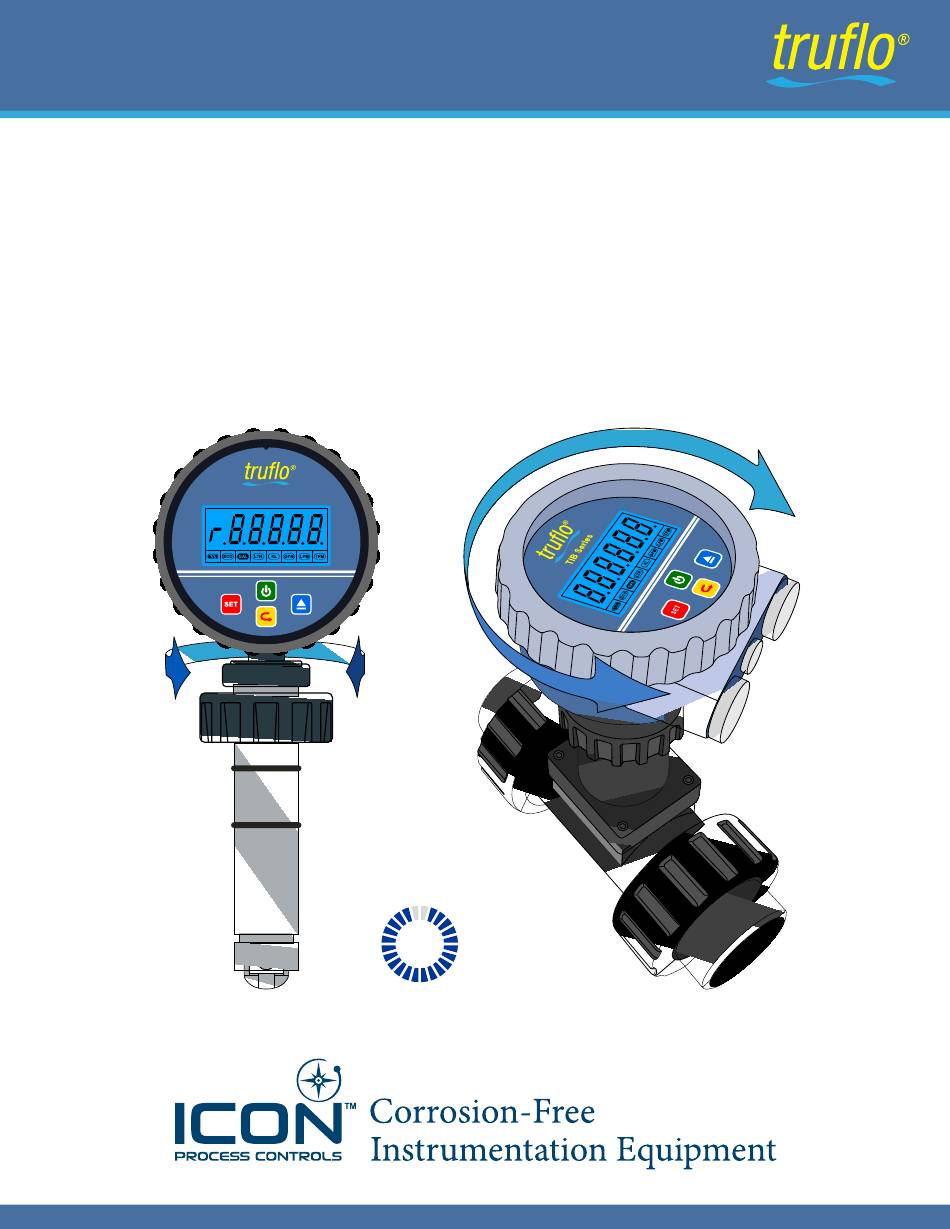

- Page 1 TIB SERIES Battery Operated Paddle Wheel Flow Meter TIB SERIES Battery Operated Flow Meter Operating Manual TIB Series 330° www.iconprocon.com | sales@iconprocon.com | 905.469.9283...
-
Page 2: Table Of Contents
TIB SERIES Battery Operated Paddle Wheel Flow Meter Table of Contents Safety Information ® New ShearPro Design Zirconium Ceramic Rotor | Bushings Technical Specifications Long Service Life Pressure vs. Temperature Display Functions Programming Programming Display Units Min | Max Flow Rates K - Factors Installation Information Sensor Installation... -
Page 3: Safety Information
TIB SERIES Battery Operated Paddle Wheel Flow Meter Safety Information 1. De-pressurize and Vent System Prior to Installation or Removal. 2. Confirm Chemical Compatibility Before Use. 3. DO NOT exceed Maximum Temperature or Pressure Specifications. 4. ALWAYS Wear Safety Goggles or Face-shield During Installation and/or Service. 5. -
Page 4: New Shearpro ® Design
TIB SERIES Battery Operated Paddle Wheel Flow Meter New ShearPro ® Design Superhydrophobic Design Contoured Flow Profile Reduced Turbulence Reduced Friction 78% Less Drag than Old Flat Paddle Design* ® ShearPro Competitor 'A' Zirconium Ceramic Rotor | Bushings Industry’s Highest Impact and Chemical Resistant Properties Up to 15x the Wear Resistance vs. -
Page 5: Long Service Life
TIB SERIES Battery Operated Paddle Wheel Flow Meter Long Service Life Pressure vs. Temperature Note : During system design the specifications of all The TI Series is equipped with a Zirconium Ceramic Rotor Pin components must be considered. | Non-Shock and 2 Bushings. -
Page 6: Programming
TIB SERIES Battery Operated Paddle Wheel Flow Meter Press to Increase Value Press to Decrease Value Programming Press to Save Value Press to Change Value STEPS DISPLAY RANGE OPERATION Step-1 Home Screen Display Current Flow Rate | Total Flashing Press &... -
Page 7: Min | Max Flow Rates
TIB SERIES Battery Operated Paddle Wheel Flow Meter Min | Max Flow Rates Flow Rate (LPM) / USGPM Pipe Size 0.3m/s min. 10m/s max. 2" | DN50 40.0 | 10.5 357.0 | 1350.0 60.0 | 16.0 1850 | 357 2 ½" | DN60 3"... -
Page 8: Installation Information
TIB SERIES Battery Operated Paddle Wheel Flow Meter Installation Information Very Important TIB Series Retention Cap Lubricate O-rings with a Viscous Lubricant Compatible with the Materials of Locating Pin Construction. Ensure O-Rings are well Lubricated Using an Alternating | Twisting Motion Carefully Lower the Sensor into the Lubricate with Silicone Fitting. -
Page 9: Correction Sensor Position
TIB SERIES Battery Operated Paddle Wheel Flow Meter Correction Sensor Position TI Series Flow Meters measure liquid media only. There should be no air bubbles and the pipe must always remain full. To ensure accurate flow Velocity Flow measurement the placement of the flow meters needs to be adhered .This Profile requires a straight run pipe with a minimum number of pipe diameters distance upstream and downstream of the flow sensor. -
Page 10: Battery Replacement V Series
TIB SERIES Battery Operated Paddle Wheel Flow Meter Battery Replacement V Series Remove Polycarbonate Lid Insert Screw Driver into Slot Remove Cover Battery Battery Remove 1st Battery Remove Screws Carefully Remove Display Module Remove Battery Pack Replace Battery Pack Reassemble www.iconprocon.com | sales@iconprocon.com | 905.469.9283... -
Page 11: Battery Replacement H Series
TIB SERIES Battery Operated Paddle Wheel Flow Meter Battery Replacement H Series Remove Polycarbonate Lid Insert Screw Driver into Slot Remove Cover Battery Remove 1st Battery Remove Screws Carefully Remove Display Module Gently Pry Battery Remove Battery Pack Replace Battery Pack Reassemble www.iconprocon.com | sales@iconprocon.com | 905.469.9283... -
Page 12: Rotor Pin | Paddle Replacement
TIB SERIES Battery Operated Paddle Wheel Flow Meter Rotor Pin | Paddle Replacement GENTLY tap Wedge with Tap until Rotor is 50% Out Line up Pin with Rotor Hole Mallet or Hammer Small Pin Spot Point Avoid Damage to 50% Out Pin the Plastic outside Pull out Rotor Pin Insert New... -
Page 13: Dimensions
TIB SERIES Battery Operated Paddle Wheel Flow Meter Dimensions V Series 3.62 in 3.62 in [91.9 mm] [91.9 mm] 4.36 in 4.36 in TIB Series [110.7 mm] [110.7 mm] 3.96 in [100.7 mm] 2.66 in [67.5 mm] 2.66 in [67.5 mm] H Series TIB Series TIB Series... -
Page 14: Warranty, Returns And Limitations
