Truflo
— MF1000 Series
®
In-Line Magnetic Flow Meter
Quick Start Manual
Read the user's manual carefully before starting to use the unit.
Producer reserves the right to implement changes without prior notice.
1
24-0294 © Icon Process Controls Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Truflo MF1000 Series and is the answer not in the manual?

Questions and answers

Randall Parsons
May 9, 2025

Where is the battery in MF-1000 Mag Meter

0

Subscribe to Our Youtube Channel

Related Manuals for ICON Truflo MF1000 Series

Summary of Contents for ICON Truflo MF1000 Series

  • Page 1 Truflo — MF1000 Series ® In-Line Magnetic Flow Meter Quick Start Manual Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. 24-0294 © Icon Process Controls Ltd.

  • Page 2: Table Of Contents

    Flow Range Front Panel Description Parameter Settings Function Settings RS485 Communication Settings Frequency | Pulse Output Settings Diagnostic Settings Data Logging Settings System Settings Calibration Settings Abbreviations & Menu List Straight Pipe Length Requirements Warranty 24-0294 © Icon Process Controls Ltd.

  • Page 3: Product Introduction

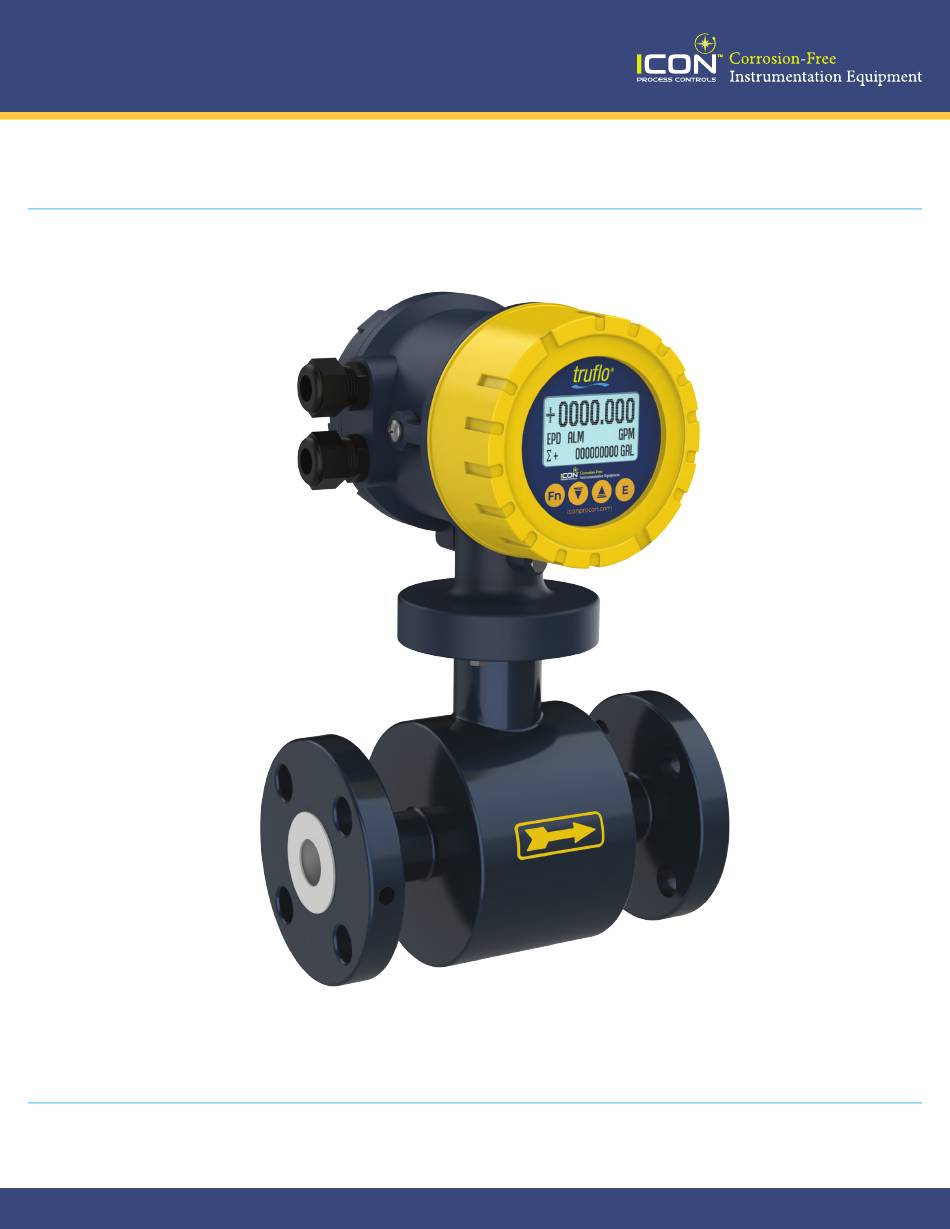

    Defective units must be disconnected and submitted for repairs at an authorized service center. Product Introduction NEMA 4X Housing Cord Grips Display Rotates 90º Left or Right of Center Vibrant LED (default position) Display PTFE Teflon Liner ® 24-0294 © Icon Process Controls Ltd.

  • Page 4: Specifications

    Carbon Steel+PU Coated | SS304/SS316 Connection Box (Remote Type) Standard: Polyurethane Coated Die-cast Aluminum | Standard : SS316L Grounding Rings Hastelloy C or Same Material as Electrode. Grounding Electrodes Same Material as Measuring Electrodes 24-0294 © Icon Process Controls Ltd.

  • Page 5: Converter Circuit Structure

    The function of the converter is to amplify and convert the induced potential signal into a unified standard signal and suppress the main interference signal. Its task is to amplify and convert the induced potential signal detected by the electrode into a unified standard DC signal. 24-0294 © Icon Process Controls Ltd.

  • Page 6: Wiring Diagram

    Exciting Current - Alarm Output Junction ALML: Lower Flow Limit SIG1 Signal 1 Field-effect Transistors Output SIG2 Signal 2 Alarm Outptut Capacity Maximum Voltage: 36 V DC SGND Signal Ground Maximum Current: 250 mA 24-0294 © Icon Process Controls Ltd.

  • Page 7: Dimensions

    Truflo — MF1000 Series ® In-Line Magnetic Flow Meter Converter Dimensions - MF1000 with Local Display Ø65 8-M6X8 2 M20X1 5-6H Converter Dimensions - MF1000 with Remote Display Remote Display Product Dimensions n*Od 24-0294 © Icon Process Controls Ltd.

  • Page 8: Flow Range

    5” 61.4 1145 1321 1541 1717 1937 6” 1100 1365 1673 1937 2201 2510 2774 8” 1497 1981 2466 2950 3478 4359 4402 4843 10” 1541 2334 3082 3875 4403 5283 6164 6604 7885 24-0294 © Icon Process Controls Ltd.

  • Page 9: Front Panel Description

    • Positive Total • Negative Total • Net Total For digital values, move one cursor position to the right or left Note: The display will return to measuring mode automatically after 3 minutes of inactivity 24-0294 © Icon Process Controls Ltd.

  • Page 10: Parameter Settings

    100% (Default) 1/8 PF (Default) Note: ■ For 4-20mA Output, if the FLOW UNIT is changed, then MEASURE RANGE needs to be changed to the same unit accordingly. ■ Refer Page 18 for more details. 24-0294 © Icon Process Controls Ltd.

  • Page 11: Function Settings

    ON | OFF ON | OFF 20% (Default) ALML ALARM THD ALML ALARM ALMH ALARM ALMH ALARM THD ON | OFF 120.00% (Default) ON | OFF Note: ■ Refer Page 18 & 19 for more details. 24-0294 © Icon Process Controls Ltd.

  • Page 12: Rs485 Communication Settings

    ▶ Communication COMMUNICATION COMMUNICATION Settings Communication Menu Structure to Enter Value/Save to Move Cursor MODBUS MODBUS MODBUS DIAG COMMUNICATION ADDRESS MODBUS MODBUS MODBUS CHECKBIT BAUDRATE DELAY Note: ■ Refer Page 19 for more details. 24-0294 © Icon Process Controls Ltd.

  • Page 13: Frequency | Pulse Output Settings

    20mA TUNING 4mA TUNING OUTPUT OUTPUT MODE WIDTH ± 2.9mA ± 1.9mA PULSE WIDTH PULSE POLAR FREQ RANGE PULSE UNIT Auto | Manual Positive | Negative Note: ■ Refer Page 19 for more details. 24-0294 © Icon Process Controls Ltd.

  • Page 14: Diagnostic Settings

    Output Settings ■ See Page 13 ▶ Diagnostic DIAGNOSTIC DIAGNOSTIC Settings Diagnostic Menu Structure to Enter Value/Save to Move Cursor DIAGNOSTIC 4-20mA TEST PULSE TEST FREQ TEST Note: ■ Refer Page 19 for more details. 24-0294 © Icon Process Controls Ltd.

  • Page 15: Data Logging Settings

    ▶ Record Review RECORD REVIEW DATA LOGGING Settings Record Review Menu Structure to Enter Value/Save to Move Cursor RECORD START STOP MONTHLY DAILY RECORD REVIEW RECORD Note: ■ Refer Page 19 for more details. 24-0294 © Icon Process Controls Ltd.

  • Page 16: System Settings

    RECORD CLEAR PASSWORD RESET PRESET PRESET PASSWORD SET SYSTEM DATE SYSTEM TIME SENSOR DATE SENSOR CODE LAST MAINT LAST CAL DATE METER CODE METER DATE DATE Note: ■ Refer Page 20 for more details. 24-0294 © Icon Process Controls Ltd.

  • Page 17: Calibration Settings

    Move Cursor AUTO ZERO SENSOR COEF CALIBRATION ZERO CORRECT AUTO ZERO TIME (K FACTOR) SENSOR COFF CORRECT SET LNT COEF LNT POINT LNT CORRECT CALC FLOW CORRECT Note: ■ Refer Page 20 for more details. 24-0294 © Icon Process Controls Ltd.

  • Page 18: Abbreviations & Menu List

    0 ~ 9.9 S PEAK VALUE 0 ~ 34ft/s | 0 ~ 9.999 m/s PEAK FILTER AUTO | ON | OFF FILTER ENABLE ON | OFF ■ See Page 11 FILTER PARAM 0 ~ 9.9999 24-0294 © Icon Process Controls Ltd.
  • Page 19 00000mm/s (0 ~ 99999 mm/s) PULSE TEST 000.0ms (0 ~ 100.0ms) ■ See Page 14 FREQ TEST 00000Hz (0 ~ 10000Hz) START STOP REC RECORD REVIEW MONTHLY RECORD ■ See Page 15 DAILY RECORD 24-0294 © Icon Process Controls Ltd.
  • Page 20 LNT COEF ±0000mm KALMAN FILTER** ON | OFF CORRECT SET CORRECT UNIT ■ See Page 17 FLOW CORRECT ON | OFF Consult Factory Item is optional for Local Display Type and Standard for Remote Type 24-0294 © Icon Process Controls Ltd.

  • Page 21: Straight Pipe Length Requirements

    2D or More Expander Pipe 10D or more 2D or more 5D or more 2D or More 90 -degree Various Valves bend 10D or more 2D or more 5D or more 2D or More 24-0294 © Icon Process Controls Ltd.

  • Page 22: Warranty

    Icon Process Controls Ltd for a period of one year from the date of sale of such products. Icon Process Controls Ltd obligation under this warranty is solely...
