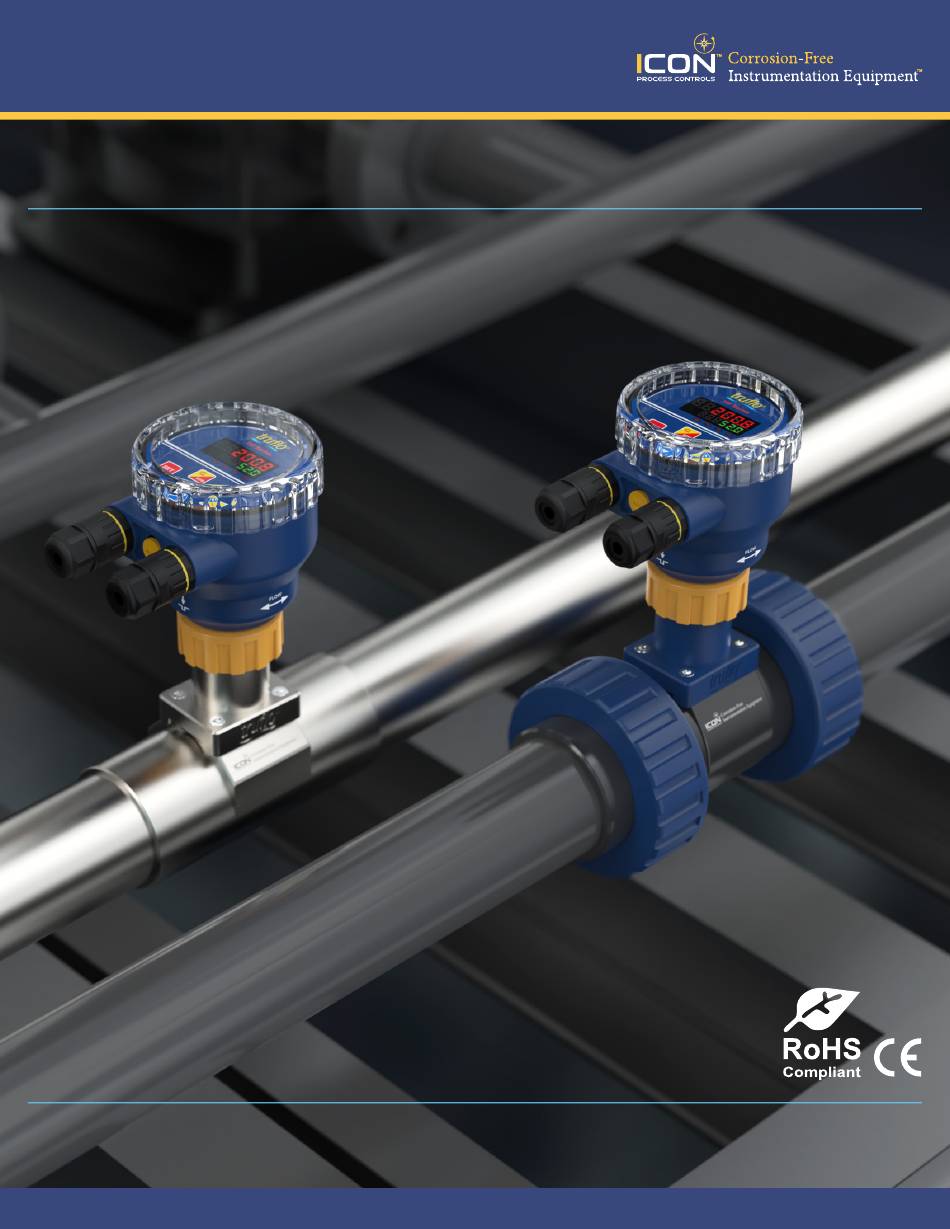

- Page 1 — TIF | TI3F Series ® Insertion Paddle Wheel Flow Meter Sensor Quick Start Manual Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. 24-0545 © Icon Process Controls Ltd.
-
Page 2: Safety Information
Truflo products. Pressurized System Warning Sensor may be under pressure. Take caution to vent system WARNING prior to installation or removal. Failure to do so may result in equipment damage and/or serious injury. 24-0545 © Icon Process Controls Ltd. -
Page 3: Technical Specifications
316 SS 1" - 4" TIF-PP-S Add Suffix - 6" - 24" TIF-PP-L ‘E’ - EPDM Seals 1" - 4" TIF-PF-S PVDF 6" - 24" TIF-PF-L PVDF Add Suffix - ‘E’ - EPDM Seals 24-0545 © Icon Process Controls Ltd. -
Page 4: Display Characteristics
— TIF | TI3F Series ® Insertion Paddle Wheel Flow Meter Sensor Display Characteristics LED Display Flow Total Flow Rate Selected Flow Unit Quick Connect Cord Grips Unit | Output Indicators Dimensions (mm) 91.7 91.7 24-0545 © Icon Process Controls Ltd. - Page 5 Zirconium Ceramic Rotor | Bushings Up to 15x the Wear Resistance Integral Rotor Bushings Reduce Wear and Fatigue Stress TI3F 316 SS 360º Shielded Rotor Design Thermal Plastic Eliminates Finger Spread No Lost Paddles vs. Competitor 24-0545 © Icon Process Controls Ltd.
- Page 6 Terminal Connections Wiring Diagram Power Supply Relay Terminal Description Terminal Description Relay 1 +24VDC Relay 2 -VDC Installation Guidelines ⚠ Ensure locating pin lines up with groove. ⚠ Ensure locating pin lines up with groove. 24-0545 © Icon Process Controls Ltd.
-
Page 7: Installation
• DO NOT use any tools — threads may Locate the flow meter positioning tab is seated in the fitting notch. be damaged tab and clamp saddle notch. Ensure tab is parallel to flow direction. • Ensure meter is firmly in place 24-0545 © Icon Process Controls Ltd. -
Page 8: Installation Positions
Air Bubbles may be Present Air Bubbles may be Present Air Bubbles may be Present SEDIMENT* or AIR BUBBLES may be present *Maximum % of solids: 10% with particle size not exceeding 0.5mm cross section or length 24-0545 © Icon Process Controls Ltd. -
Page 9: Min/Max Flow Rates
6" | DN150 230.0 | 60.0 7590.0 | 1997.0 Note: During system design the specifications of all components 8" | DN200 315.0 | 82.0 10395.0 | 2735.0 316SS PVDF must be considered. | Non-Shock 24-0545 © Icon Process Controls Ltd. - Page 10 Filter Damping Filter Damping ▶ Factory Default: FiL = 10 | Range : 0 ~ 99 Secs (Filter Damping : Smooth out or "Dampen" the response of the Flow Meter to rapid fluctuations in flow.) 24-0545 © Icon Process Controls Ltd.
- Page 11 [SV - Hys] — ▶ Relay OFF: CV > [SV + Hys] or CV < [SV - HyS] — ▶ Relay ON Hys = Hysteresis — Acts like a buffer ± around (OP1) pulse output CV: Current Value (Flow Rate) | SV: Set Value 24-0545 © Icon Process Controls Ltd.
- Page 12 Relay 2 turns OFF once the preset batch value is reached. �� (OP2 LED indicator will go OFF.) 3 Sec . Batching Reset ▶ Relay 2 (Batching) will restart, and the OP2 LED indicator will turn ON again. 24-0545 © Icon Process Controls Ltd.
- Page 13 Tap until pin is 50% out Small Pin Pin Hole Pull out Pull out Insert new paddle in flow meter Paddle Push in pin GENTLY tap Congratulations! approx. 50% Replacement procedure is complete! Ensure holes are aligned 24-0545 © Icon Process Controls Ltd.
-
Page 14: Installation Fittings
8” SWOL8 • Easy to Install Glue-On Adapter 10” SWOL10 • Will Accept 12” SWOL12 Signet Flow Meter ® • 2”-24” Pipe Sizes • Easy to Install • Will Accept Signet Flow Meter ® 24-0545 © Icon Process Controls Ltd. - Page 15 Icon Process Controls Ltd for a period of one year from the date of sale of such products. Icon Process Controls Ltd obligation under this warranty is solely...
