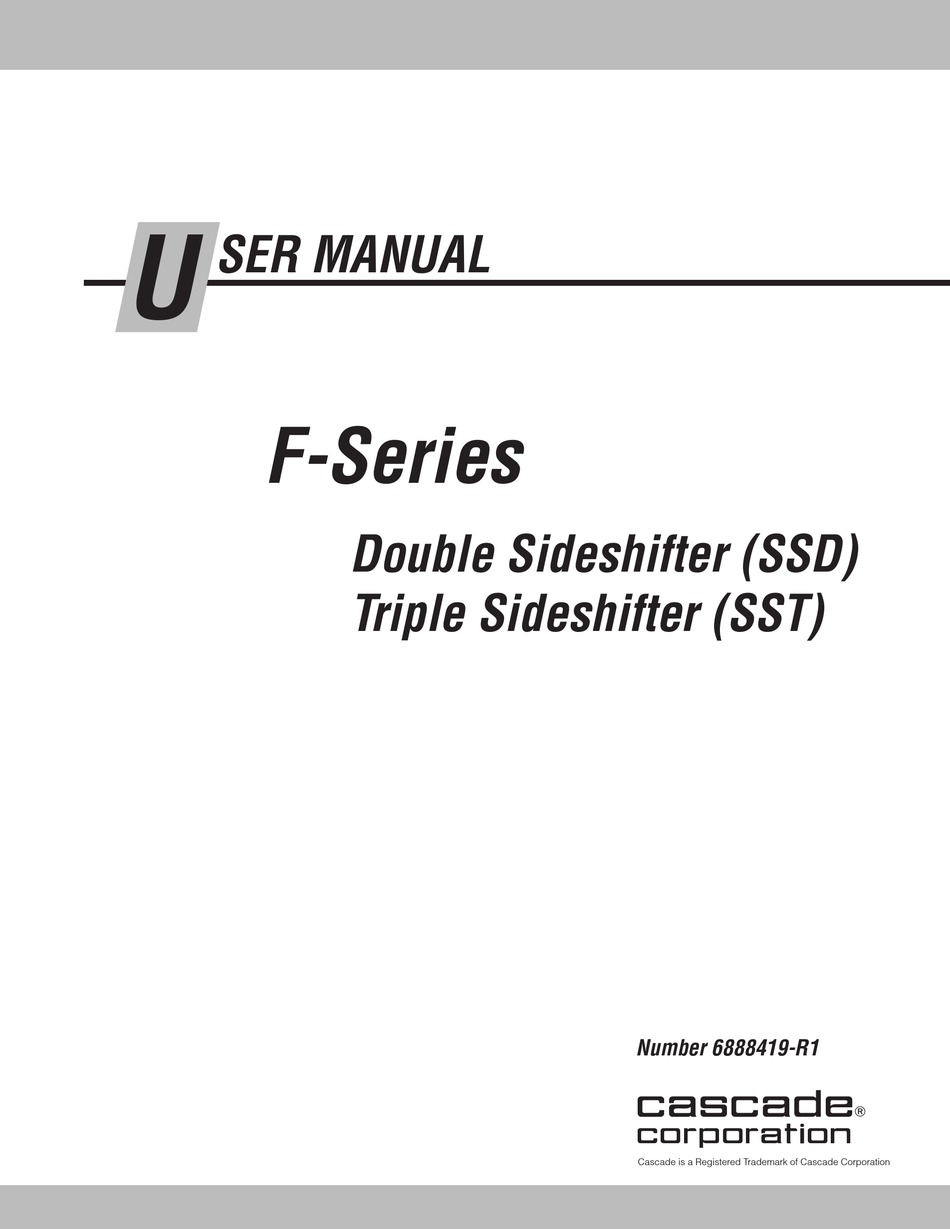

- Page 1 SER MANUAL F-Series Double Sideshifter (SSD) Triple Sideshifter (SST) Number 6888419-R1 cascade corporation Cascade is a Registered Trademark of Cascade Corporation...
-
Page 2: Table Of Contents
CONTENTS Page INTRODUCTION Special Definitions OPERATION Sideshifter Functions Safety Rules Industrial Lift Trucks Handling Loads Safe Operation and Maintenance OSHA Regulations TRUCK REQUIREMENTS HYDRAULIC SUPPLY INSTALLATION PERIODIC MAINTENANCE Daily thru 2000-Hour Maintenance NAMEPLATE ICONS INTRODUCTION This user manual is for Cascade F-Series Double and Triple WARNING: Rated capacity of the truck/ Sideshifters. -
Page 3: Operation
OPERATION This section contains operating instructions for Cascade F-Series Double and Triple Sideshifters. It will help you avoid common errors which often cause damage to the equipment or product being handled. This information is intended to simplify Backrest operator understanding about effective and safe Sideshifter use and operation. - Page 4 OPERATION Triple Sideshifter (SST) Functions AUXILIARY VALVE BASE SIDESHIFTING & FUNCTIONS SIMULTANEOUS OPEN/CLOSE SIDESHIFTING A Base Sideshift Left Tilt forward B Base Sideshift Right C Sideshift Apart Hoist down D Sideshift Together Hoist up GA0425.eps Tilt Back SS1597.eps 6888419-R1...
-
Page 5: Safety Rules
OPERATION Safety Rules – Industrial Lift Trucks No riders No reaching through mast No standing under load SS1398.eps With load Tilt Raise 3 in. (8 cm) No load RAMPS Traveling Motor off, park, lower load empty No parking on ramp No turning on ramp Watch clearances SS1399.eps... -
Page 6: Handling Loads
OPERATION Safety Rules – Handling Loads Top of load should not extend above backrest. Limit mast tilting with raised load. CAUTION: Do not put side loads on forks. Limit sideshifting with raised load. LOAD Limit truck movement WEIGHT with raised load. Center loads prior to SS1397.eps... -
Page 7: Safe Operation And Maintenance
SAFE OPERATION AND MAINTENANCE OSHA Regulations – Industrial Trucks and Attachments (Specific Regulations from OSHA 1910.178) (6) A safe distance shall be maintained from the edge of ramps or WARNING: The safe operation and maintenance of platforms while on any elevated dock or platform or freight car. industrial trucks is regulated by Occupational Safety Trucks shall not be used for opening or closing freight doors. -
Page 8: Truck Requirements
TRUCK REQUIREMENTS Truck Relief Setting 2250 psi (155 bar) Recommended 3500 psi (240 bar) Maximum Truck Flow Volume ➀ Min. Recommended Max. ➁ ➂ 1 GPM 2 GPM 3 GPM F-SSD (4 L/min.) (8 L/min.) (12 L/min.) F-SST ➀ Cascade F-Series Sideshifters are compatible with SAE 10W petroleum base hydraulic fluid meeting Mil. - Page 9 HYDRAULIC SUPPLY Triple Sideshifter (SST) The Triple Sideshifter will require the hydraulic supply arrangements shown below. All hoses and fittings should be at least No. 6 with 9/32 in. (7 mm) minimum ID. Refer to Cascade Hose & Cable Reel Selection Guide, Part No. 212199 to select the correct hose reel for the mast and truck.
-
Page 10: Installation
INSTALLATION Attach overhead hoist WARNING: Check the attachment weight (located on the nameplate) to make sure the overhead hoist and chains or straps are at least the rated capacity of the attachment. Lifting Eye Model, Serial Number, Date Code SS1401.eps Remove lower hooks SS1402.eps Bolt-On... - Page 11 INSTALLATION Mount Sideshifter on truck carriage ITA Class II – .60-.66 in. (15-17 mm) ITA Class III – .72-.78 in. (18-20 mm) Engage locator tab with center notch ITA Class II – .32–.36 in. (8-9 mm) ITA Class III – .39–.43 in. (10-11 mm) Truck Upper Carriage Bar SS1415.eps...
- Page 12 INSTALLATION Install hoses–Double Sideshifter (SSD) Independent Sideshifting (Requires two auxiliary valves or solenoid) SS1416.eps Simultaneous Left/Right Sideshifting SS1417.eps Simultaneous Open/Close Sideshifting Close Open SS1418.eps 6888419-R1...
- Page 13 INSTALLATION Install hoses–Double Sideshifter (SSD) Open/Close Sideshifting with Valve Open Close SS1438.eps Open/Close Sideshifting and Left/Right Sideshifting with Valve (Requires two auxiliary valves or solenoid) SS1439.eps Open Close Install hoses–Triple Sideshifter (SST) Base Sideshifting and Open/Close Sideshifting with Valve (Requires two auxiliary valves or solenoid) Open/Close Sideshifting Open Close...
- Page 14 INSTALLATION Install forks WARNING: If the fork locking Fork Lock Pins pin is not fully engaged, the fork could become disengaged from the carriage. SS1419.eps Install backrests Cascade Backrest – Tighten to 145 ft.-lbs. (195 Nm). For other backrests, see OEM recommendations.
- Page 15 INSTALLATION Inspect fork hooks, carriage bar FORK LOWER HOOKS, CARRIAGE clearance. NOTE: Use go/no-go Wear Gage Part No. 209560 (Class II), 209561 (Class III). Wear Gauge Inspect the fork lower hooks and carriage bar. If the gauge fits between the carriage bar and lower hook, repair or replacement is needed.
-
Page 16: Periodic Maintenance
PERIODIC MAINTENANCE Daily WARNING: After completing any service procedure, always test the sideshifter Check items shown each day. Report problems to your through five complete cycles. First test with supervisor. See Service Manual for troubleshooting, no load, then test with a load to make sure maintenance and repair procedures. - Page 17 ET NIMEPLAADILE IKOONID LV AR NOSAUKUMU, IKONAS SV NAMNSKYLTEN IKONER FI NIMIKYLTTI KUVAKKEET MT NAMEPLATE ICOANE TR BILGI ETIKETI SIMGELERI Cascade Corporation • www.cascorp.com • Icons & Patents: www.cascorp.com/support 6095754 FR PLAQUE ICÔNES NL NAAMBORD ICONEN ZH 铭牌图标 EN MODEL ES MODELO IS MÓDEL...
- Page 18 KOMBINATIONEN GAFFELTRUCK OCH AGGREGAT SKA FÖLJAS. TR ARAÇ KAPASITESI VE DONANIM KOMBINASYONU, GÖSTERILEN DONANIM KAPASITESINDEN DÜŞÜK OLABILIR. ARAÇ BILGI ETIKETINE BAŞVURUN. ARAÇ KAPASITESI VE DONANIM KOMBINASYONU UYUMLU OLMALIDIR. ZH 叉车与叉车属具的综合承载能力可能小于显示的叉车属具承载能力。请参考叉车铭牌。 应符合叉车与叉车属具的综合承载能力。 6888419-R1 © Cascade Corporation 2011 www.cascorp.com 04-2011 No. 6098046-R2...
- Page 19 Blank 6888419-R1...
- Page 20 Pte. Ltd. Rocklea, QLD 4107 East Tamaki, Auckland 18 Tuas South Street 5 Australia New Zealand Singapore 637796 Tel: 1-800-227-223 Tel: +64-9-273-9136 Tel: +65-6795-7555 Fax: +61 7 3373-7333 Fax: +64-9-273-9137 Fax: +65-6863-1368 © Cascade Corporation 2020 01-2020 Part Number 6888419-R1...
