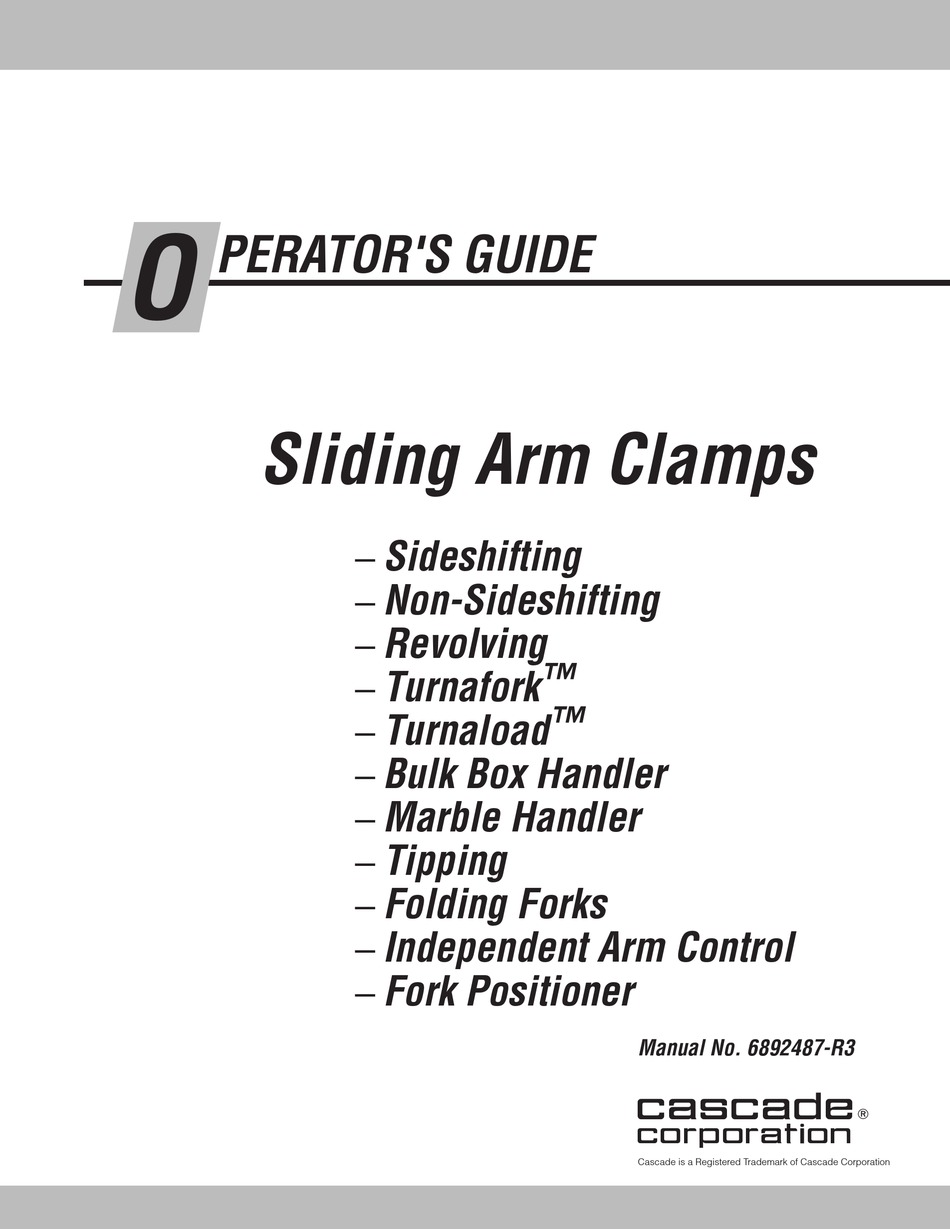

O
PERATOR'S GUIDE
Sliding Arm Clamps
− Sideshifting
− Non-Sideshifting
− Revolving
− Turnafork ™
− Turnaload ™
− Bulk Box Handler
− Marble Handler
− Tipping
− Folding Forks
− Independent Arm Control
− Fork Positioner
Manual No. 6892487-R3
cascade
corporation
Cascade is a Registered Trademark of Cascade Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sideshifting Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for cascade corporation Sideshifting Series

  • Page 1 − Revolving − Turnafork ™ − Turnaload ™ − Bulk Box Handler − Marble Handler − Tipping − Folding Forks − Independent Arm Control − Fork Positioner Manual No. 6892487-R3 cascade  corporation Cascade is a Registered Trademark of Cascade Corporation...
  • Page 2: Table Of Contents

    CONTENTS Page WARNING: Rated capacity of the truck/ Introduction attachment combination is a responsibility Safety Rules of the original truck manufacturer and may Daily Inspection be less than shown on the attachment nameplate. Consult the truck nameplate. Attachment Operation Load Handling WARNING: Do not operate this attachment Bale and Multi-Purpose Clamps unless you are a trained and authorized lift...
  • Page 3: Introduction

    INTRODUCTION Cascade Sliding Arm Clamp attachments are available in a wide variety of types designed to handle a wide variety of loads. About this Guide – This guide is prepared to simplify your understanding about efficient and safe attachment use and operation. Please read this guide thoroughly before operating the attachment.
  • Page 4: Safety Rules

    SAFETY RULES Industrial Lift Trucks No riders No reaching through mast No standing under load CL1209.eps Tilt With load Raise 3 in. (8 cm) No load RAMPS Traveling Motor off, park, lower load Empty Watch clearances No parking on ramp No turning on ramp CL1210.eps TRAFFIC...
  • Page 5 SAFETY RULES Handling Loads: Loads must be secure prior to lifting and transporting. Limit sideshifting Load weight must not exceed combined truck/attachment with raised load. capacity (see truck nameplate). Prior to lift or travel, verify load is stable and safely arranged. Backrest Refer to WARNING below.
  • Page 6: Daily Inspection

    DAILY INSPECTION Check items each day. Report problems to your supervisor. Check clamp force prior to each operational shift. Refer to attachment service manual for troubleshooting, maintenance and repair procedures. Cylinders and Hoses for leaks Upper hook engagement Safety decals &...
  • Page 7: Attachment Operation

    ATTACHMENT OPERATION AUXILIARY VALVE FUNCTIONS NON-SIDESHIFTING CLAMPS A Release Arms Tilt forward B Clamp Arms Hoist down C (not used) D (not used) CL1186.eps GA0005.eps Hoist up Tilt back FORK POSITIONERS SIDESHIFTING CLAMPS A Spread Forks A Sideshift Left B Close Forks B Sideshift Right C (not used) C Release Arms...
  • Page 8: Load Handling

    LOAD HANDLING − BALE & MULTI-PURPOSE CLAMPS Tilt back for transport A) Mast vertical, position Transport load arms parallel to floor. 3–4° centered (not sideshifted) B) Move forward, position load against backrest. C) Align bottom of load with bottom of 12 in.
  • Page 9: Drum Clamps

    LOAD HANDLING – DRUM CLAMPS A) Align drums squarely 3–4° Tilt back for transport before clamping, all drums same size. Position contact pads under upper chines. CL1211.eps 12 in. (30 cm) B) Use correct clamping force. CL1201.eps CL1212.eps CL1213.eps CL0035.eps FORWARD DRUM DUMPER Watch clearances while dumping.
  • Page 10: Tipping Clamps

    LOAD HANDLING – TIPPING CLAMPS A) Tilt mast to square pads with load. B) Drive forward, position load against backrest. CL5418.eps C) Clamp load. Reference line for easy height Raise load high positioning. enough for the load Tip load forward. to fully tip forward.
  • Page 11: Fold-Up Forks

    LOAD HANDLING – FOLD-UP FORKS USING FOLD-UP FORKS Tilt back for transport Transport load A) Tilt mast to 3–4° centered. position forks parallel to floor. 12 in. (30 cm) CL6938.eps CL6939.eps B) Drive forward, position load against bumper. CL6940.eps 6892487-R3...
  • Page 12 LOAD HANDLING – FOLD-UP FORKS USING WITH FORKS FOLDED UP A) Mast vertical, position arms parallel to floor. Fold up forks CL6942.eps CL6941.eps B) Drive forward, position load against forks and bumper Tilt back for transport 3–4° Transport load centered. 12 in.
  • Page 13: Revolving Clamps

    LOAD HANDLING – REVOLVING CLAMPS Position load parallel to ground before rotating . Check overhead clearance . (Tilt back if 4° Clamp mounting is used) Check ground clearance . CL1207.eps CL1191.eps CL1208.eps CL1192.eps Position the load center of gravity as close as possible to the center of rotation to minimize...
  • Page 14 LOAD HANDLING – REVOLVING CLAMPS (CONTINUED) A) Make sure container or unitized load has captive fork slots If elevated loads before rotating. must be rotated, rotate slowly. B) Position forks to outside edge of slots. CL0045.eps CL1193.eps CL0046.eps 6892487-R3...
  • Page 15: Clamps

    LOAD HANDLING – TURNALOAD CLAMP ™ CLAMPS WITH TOP ARM SHUTOFF Pick up empty pallet with top arm, A) Drive forward, pick up load . rotate 180 ° to position pallet on top. Check clearance B) Raise load to 4 in. clamp against (10 cm) top pallet.
  • Page 16: Bulk Box Handler

    LOAD HANDLING – BULK BOX HANDLER Tilt back for transport. A) Tilt mast to 3–4° position forks parallel to Transport load floor. centered. 12 in. (30 cm) B) Drive forward, CL3876.eps CL3877.eps position load with arm pads. Check overhead clearance. CL3878.eps Position load parallel to ground...
  • Page 17: Marble Handler

    LOAD HANDLING – MARBLE HANDLER WARNING: Use arms to stabilize the load only. They are not designed to clamp and carry. Approach the load and position the foot under CAUTION: Inspect trailer the bundle. Clamp and load for damage before stabilizing arms on the loading or unloading.
  • Page 18 LOAD HANDLING – MARBLE HANDLER (CONTINUED) Carefully raise and transport the bundle. Remove the security strap from the arms. Back the Marble Handler away from the bundle. CL3149.eps 6892487-R3...
  • Page 19: Load Troubleshooting

    LOAD TROUBLESHOOTING IF LOAD IS SLIPPING: Reclamp load against bumper Check for bent contact pads or forks, straighten or replace Check hydraulics for low supply pressure. Refer to Service Manual CL1177.eps Check for worn contact pad surfaces, replace surface or pads 6892487-R3...
  • Page 20: Safe Operation And Maintenance

    SAFE OPERATION AND MAINTENANCE OSHA Regulations – Industrial Trucks and Attachments (6) A safe distance shall be maintained from the edge of ramps or WARNING: The safe operation and maintenance platforms while on any elevated dock or platform or freight car. of industrial trucks is regulated by Occupational Trucks shall not be used for opening or closing freight doors.
  • Page 21 BLANK...
  • Page 22 Pte. Ltd. Darra QLD 4076 East Tamaki, Auckland 18 Tuas South Street 5 Australia New Zealand Singapore 637796 Tel: 1-800-227-223 Tel: +64-9-273-9136 Tel: +65-6795-7555 Fax: +61 7 3373-7333 Fax: +64-9-273-9137 Fax: +65-6863-1368 © Cascade Corporation 2020 07-2020 Part Number 6892487-R3...
