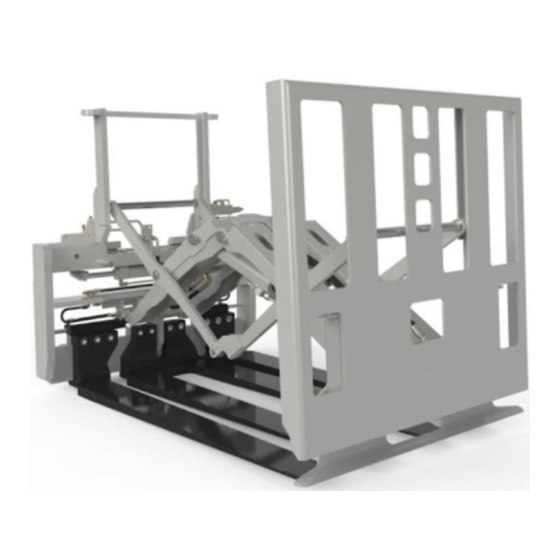

cascade corporation 35E Operator's Manual

cascade corporation 35E Operator's Manual

Qfm,™ push/pull and load push

Advertisement

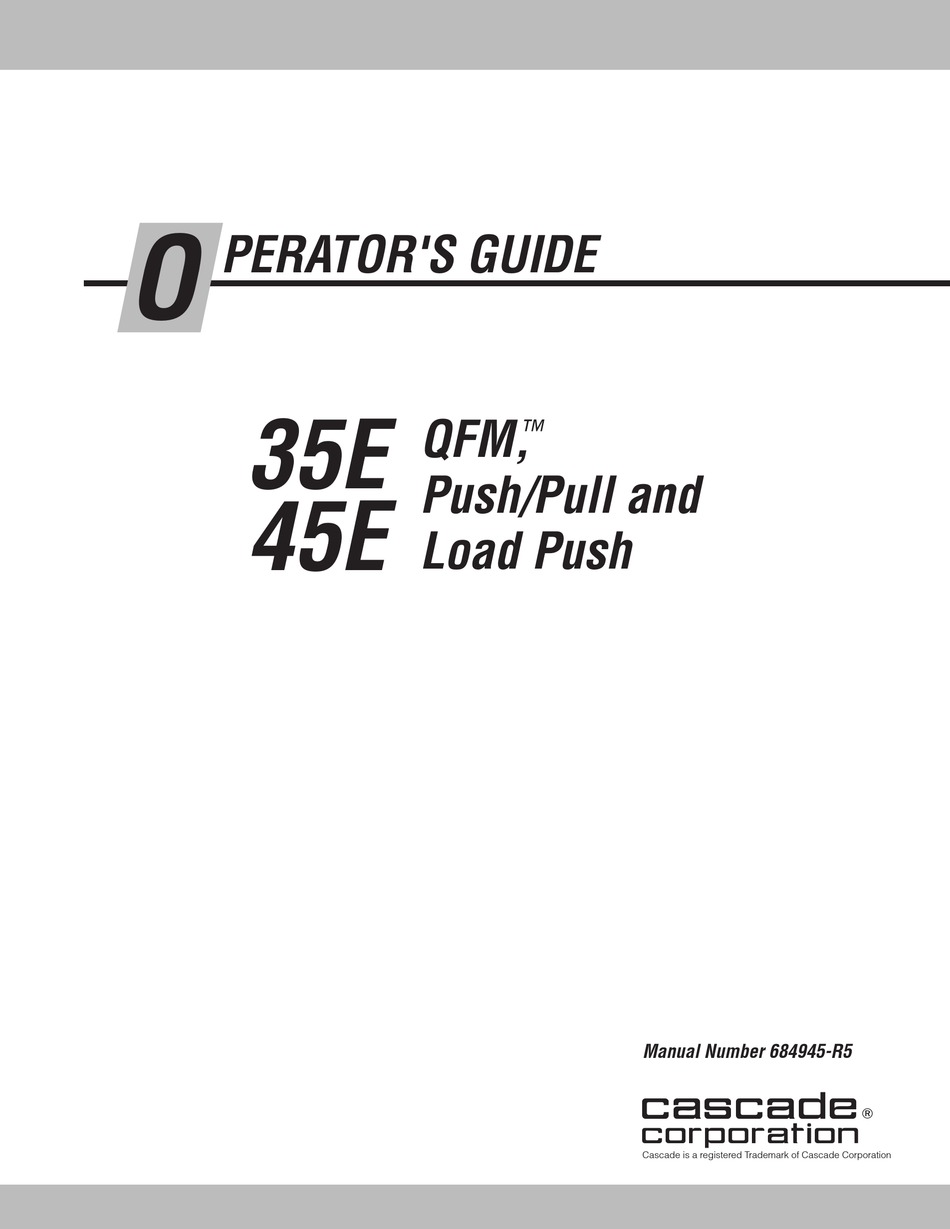

O
PERATOR'S GUIDE
35E
45E
QFM,
Push/Pull and
Load Push
Manual Number 684945-R5
cascade
corporation
Cascade is a registered Trademark of Cascade Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 35E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for cascade corporation 35E

  • Page 1 PERATOR'S GUIDE QFM, ™ Push/Pull and Load Push Manual Number 684945-R5 cascade  corporation Cascade is a registered Trademark of Cascade Corporation...
  • Page 2: Table Of Contents

    Faceplate Stop Adjustment Safe Operation and Maintenance OSHA Regulations ntroduction This guide contains operating instructions for cascade 35E/45E Load Push/Pulls. It will help avoid common errors which often cause damage to the equipment or loads being Faceplate handled. Read this manual thourghly before operating the attachment.
  • Page 3: Safety Rules

    afety rules No riders No reach through mast No standing under load PP0125.eps With load Tilt Raise 3in. No load RAMPS Motor off, park, lower load Traveling No park on ramp No turn on ramp Watch clearance PP0383.eps TRAFFIC STOP Observe Workers Stops...
  • Page 4: Daily Inspection

    aily inspection Check items each day. Report problems to your supervisor. See Service Manual 686455 Leaks for maintenance and repair procedures. Fasteners Nicks and burrs Mounting engagement PP0127.eps 684945-R5...
  • Page 5: Attachment Operation

    ttachment operation SOLENOID EQUIPPED ATTAChMENTS PUSh/PULL WITh ShEET-SAV  A Sideshift left PUSh/PULL B Sideshift right LOAD PUSh PUSh/PULL WITh SIDEShIFT C Faceplate push LOAD PUSh WITh SIDEShIFT A Sideshift left C Sheet-Sav -lift (press button)  A Sideshift left A Faceplate push (press button 1) D Faceplate retract/pull B Sideshift right...
  • Page 6: Slipsheet Loads

    lipsheet loads Nonskid coating recommended Transport Stack behind fold Banding OR Stretchwrap PP0129.eps Tilt Unitized loads Loads with Torn Slipsheet Tab Wall 3-4° Second Tilt Load Wedge both tips under slipsheet. Drive forward. Position load 6 in. over new slipsheet. Push off load.
  • Page 7: Loading

    oading from floor Square tips to load Tilt Sheet tab in gripper 3-4° Tilt PP0131.eps Pull load OPTIONAL: Pull and drive forward oading from pallets Tilt 3-4° Sheet tab in gripper tilt Pull Load. OPTIONAL: Pull and drive forward PP0132.eps Raise platens 1 in.
  • Page 8: Loading From Stacks

    oading from stacks Tilt 3-4° Square tips to load Lower Sheet tab in gripper and tilt Pull load Platen tip just below tab OPTIONAL: Pull and drive forward. PP0133.eps Raise platens as load is pulled on. oading from truck trailers CAUTION: Level trailer with dock.
  • Page 9: Unloading

    nloading on stacks Position load 6 in. from load edge, 1/2 in. above load. Tilt 6 in. Drive in reverse and lower 1-2° slightly as load is pushed Lower and tilt PP0135.eps Match load corners nloading on pallets Pallet Boards in line with Push Direction Position load 6 in.
  • Page 10: Unloading On Pallets

    nloading on pallets Pallet Boards Opposite Push Direction Position load 4 in. from pallet edge, Tilt 4 in. 1/2 in. above pallet 3-4° Drive in reverse as Push load to pallet edge load is pushed PP0137.eps nloading into truck trailers CAUTION: Level trailer with dock.
  • Page 11: Sheet-Sav ® Operation

    heet-saV operation  Raise Sheet-SavT foot. Pull load Sheet tab positions OPTIONAL: Pull and drive forward under foot Press Knob Button to Push-Pull Sheet-Sav Lower Sheet-Sav foot. PP0139.eps ttachment remoVal QFM™ (Quick Fork Mount) Attachments Extend faceplate and raise ¾ 2 ft.
  • Page 12: Attachment Installation - Qfm

    ttachment installation QFM™ (Quick Fork Mount) Attachments Adjust forks Engage 20.5- upper 25.5 in. hooks Attachment on center A Drive forks under attachment B Engage upper forks A Turn up lower hooks B Adjust hook clearance and tighten Quick disconnect couplers 1/16 in.
  • Page 13: Faceplate Stop Adjustment

    aceplate stop adjustment Attachments equipped with faceplate stop option Pull out to adjust PP1248.eps PP1249.eps 38 in. Maximum Setting 684945-R5...
  • Page 14: Safe Operation And Maintenance

    afe operation and maintenance OShA Regulations – Industrial Trucks and Attachments (Specific Regulations from OShA 1910.178) (6) A safe distance shall be maintained from the edge of ramps WARNING: The safe operation and maintenance of or platforms while on any elevated dock or platform or freight industrial trucks is regulated by Occupational Safety car.
  • Page 15 BLANK...
  • Page 16 15 Ra Ora Drive Pte. Ltd. Rocklea, QLD 4107 East Tamaki, Auckland 18 Tuas South Street 5 Australia New Zealand Singapore 637796 Tel: 1-800-227-223 Tel: +64-9-273-9136 Tel: +65-6795-7555 Fax: +61 7 3373-7333 Fax: +64-9-273-9137 Fax: +65-6863-1368 Cascade Corporation 2010 07-2010 Part No. 684945-R5...
