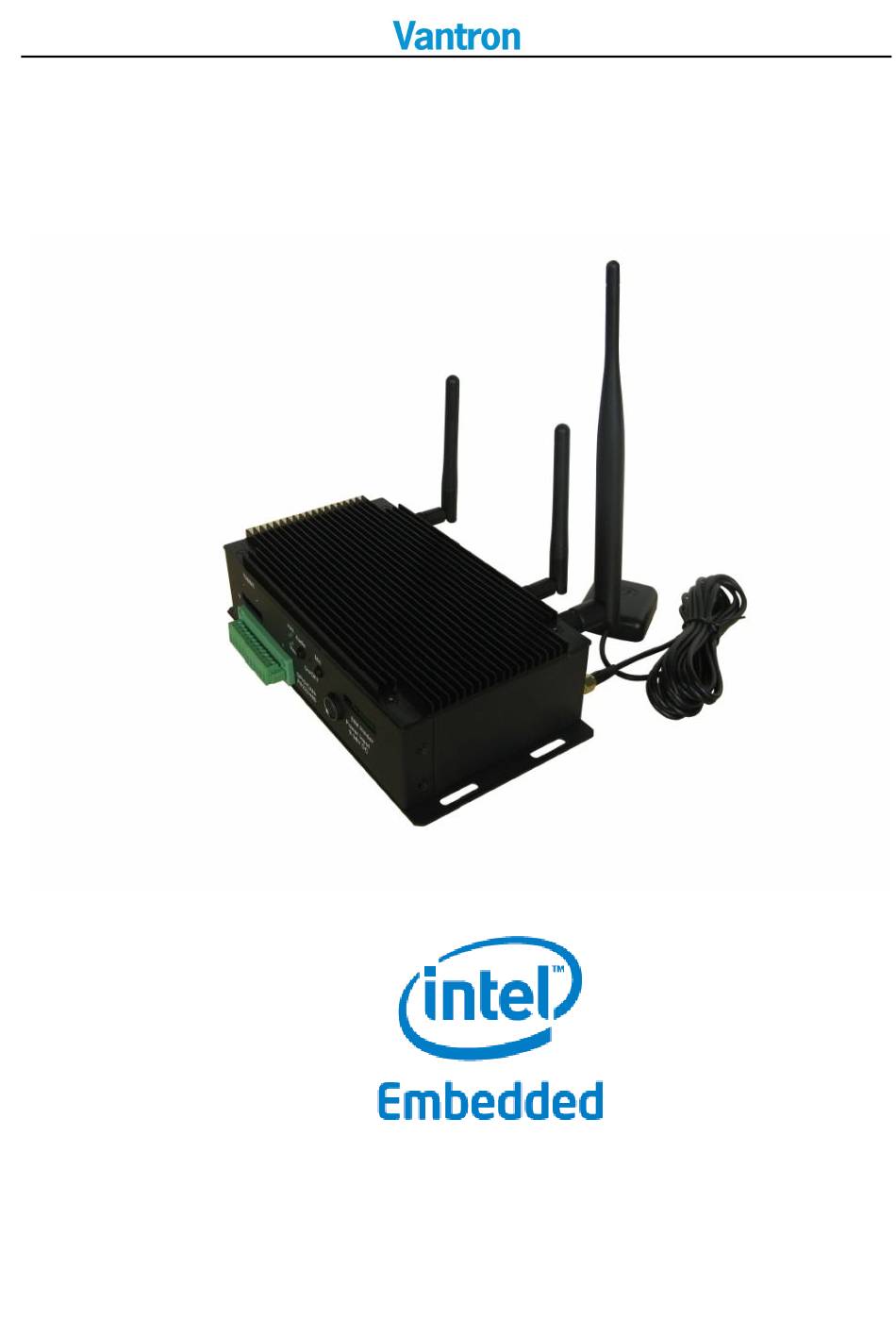

VT-M2M-BTA-DE User’s Manual Vantron Technology www.vantrontech.com All Rights Reserved...
Page 2
VT-M2M-BTA-DE Revision History: Version Description Date V1.0 First release June.17, 2014 V1.1 Modify description of COM June.23, 2014 V1.2 Add software part December 18, 2014 1. Update the safety Instructions V1.3 Feb 11,2015 2. Add antenna description...
VT-M2M-BTA-DE Table of Contents Part I:Hardware Platform ..............4 Foreword..................5 Copyright Notice ..............5 Notes ..................6 Statement ................6 Disclaimer................6 Limitation of Liability/Non-warranty........6 Safety Instructions ..............6 Precautions................7 Safety Instructions for Power Cables and Accessories .... 8 Cleaning Instructions ............
Page 4
Part II:Software Reference ..............29 1. Introduction .................. 30 1.1 About This Manual ............... 30 1.2 Windows OS Support ............30 1.3 VT-M2M-BTA-DE Features ............ 31 2. Base Control ..................35 2.1 CAN Control ................. 35 2.2 GPIO Control ................ 37 2.3 Serial COM Control ...............
1.1 Copyright Notice While all information contained herein have been carefully checked to assure its accuracy in technical details and printing, Vantron assumes no responsibility resulting from any error or features of this manual, or from improper uses of this manual or the software. Please contact our technical department for relevant operation solutions if there is any problem that cannot be solved according to this manual.
1.5 Limitation of Liability/Non-warranty For direct or indirect damage to this device or other devices of Vantron caused by failure of conforming to this manual or the safety instructions on device label, Vantron assumes neither warranty nor legal liability even if the device is still under warranty.
VT-M2M-BTA-DE information. Pay attention to warnings on this device. Read the following precautions so as to decrease the danger of injury, electric shock, fire, or any damage to the device. Operations and Service instructions are provided with the equipment.
Proper power source only Start only with power source that satisfies voltage label and the voltage necessary according to this manual. Please contact technical support personnel of Vantron for any uncertainty about the requirements of necessary power source. Use tested power source This product still contains a button...
VT-M2M-BTA-DE Overview 2.1 Introduction Thank you for choosing Vantron. It is our commitment to provide our valued customers with the embedded devices equipped with the state-of-the-art technology and the best product services. Vantron’s M2M products are based on the most advanced ARM and Intel Atom processors and have low-power consumption and high integration.
VT-M2M-BTA-DE 3.2 Specifications Specifications Intel® ATOM™, E3827/1.75GHz, E3845/1.91GHz, Processor E3815/1.46GHz On Board DDRIII 1333MT/s(E3845&E3827)/ 1066MT/s On Board Memory (E3815), up to 2GB 1.8”SATA SSD Module Internal (16GB, or others) ROM Internal On board SATA2.0 SSD 8GB(OPTIONAL) Support LVDS/HDMI/VGA, simultaneous/dual view...
Page 18
VT-M2M-BTA-DE Buzzer Out Alarm 1xSD card Slot (Optional ) SD card Supported Reset Button in the front,Power button in the back Control Reserved GPIO (Terminal) GPIO 1x CAN2.0b On board Registration Serial Number, and SHA-1 security Security Encrypt/Decrypt Chip DS28E01 (Optional)
VT-M2M-BTA-DE 3.5 Interface Description 3.5.1 Wide-Range Power Interface Power JACK with lock Description DGND (ground pin) Power (+12 DC,UP to 36V) 3.5.2 Ethernet Interface Standard RJ45 interface, supporting 10M/100M/1000M self-adaptation, this is a standard RJ45 ethernet port...
VT-M2M-BTA-DE 3.5.3 D Sub-9 RS232 Connector Standard vertical DB-9 male connector Remarks Description BIOS set DCD1/422TX+/485_A BIOS set RXD1/422TX-/485_B BIOS set TXD1/422RX+ BIOS set DTR1/422RX- DGND (ground pin) DSR1 RTS1 CTS1...
VT-M2M-BTA-DE 3.5.5 VGA Interface Standard vertical DB-15 Female VGA connector Description GREEN BLUE N.C. +5VDC N.C. SD_DDC HSYNC VHYNC SC_DDC 3.5.6 USB Host Connector Dual vertical USB A type interface, USB2.0...
VT-M2M-BTA-DE 3.6 Operation Notice 3.6.1 Change SIM Card Push the small button on the left of SIM Card Holder, and install the SIM card to the holder. Then push the holder into the Slot. 3.6.2 Power Supply Please make sure using adapter in the accessory, or the power is not...
VT-M2M-BTA-DE Tips Waste Disposal It is recommended to disassemble the device before abandoning it in conformity with local regulations. Please ensure that the abandoned batteries are disposed according to local regulations on waste disposal. Do not throw batteries into fire (explosive) or put in common waste canister.
Page 29
In the aim of avoiding accidents as far as possible, it is not allowed to replace the system or change components unless with permission and certification. Please contact the technical department of Vantron or local branches for help. Pay attention to caution signs.
Page 30
Vantron reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in forms of photocopy, tape, broadcast, e-document, etc.
VT-M2M-BTA-DE 1. Introduction Thank you for choosing Vantron. It is our commitment to provide our valued customers with the embedded devices equipped with the state of the art technology and the best product services. Vantron’s M2M products are based on the most advanced ARM and Intel Atom processors and have low power consumption and high integration.
VT-M2M-BTA-DE 1.3 VT-M2M-BTA-DE Features The below table lists VT-M2M-BTA-DE features. Device Description Name Maximum resolution up to 2560x1600@60 Hz Driver: CD\\WIN7 Driver\\Graphic\\ Intel_EMGD.WIN7_PC_Version_36_15_0_1073.7z COM1~5 default RS232 Ports COM1 : DB9, support RS232/RS422/RS485, baud rate up to 115200bps COM2 : Green terminal pin 1 and 2, support RS232/RS485...
Page 34
VT-M2M-BTA-DE Guide\\VT-M2M-BTA GPIO Programming.pdf Support CAN V2.0B protocol Green Terminal Pin 4 - CANH Green Terminal Pin 5 - CANL Test by tool: CD\\SW Guide\\CAN Test\\ Test_COM2CAN_Net20_v1.0.zip Test Guide: CD\\SW Guide\\CAN Test\\ Test_COM2CAN_Net20_v1.0.zip Ethernet 2 x Intel 82574 Audio Realtek ALC269 Driver: CD\\WIN7 Driver\\Audio \\32bit_Win7_Win8_Win81_R273.exe...
Page 35
VT-M2M-BTA-DE User Guide: CD\\SW Guide\\Accelerometer test\\Test_ADXL345_BayTrail_Net20_v1.0.zip WIFI Intel N62205 Driver: CD\\WIN7 Driver\\Intel WIFI 62205ANHMW\\intel_wireless_14.2.0.10_s64.exe Telit HE910 User Guide: CD\\WIN7 Driver\\Telit HE910\\HE910 Use guide.pdf Driver: CD\\WIN7 Driver\\Telit HE910\\Telit_xE910_HE863_USB-Driver_Win_desktop_OS_ U8.00.04.zip Telit DE910 User Guide: CD\\WIN7 Driver\\Telit DE910\\DE910 Use guide.pdf Driver: CD\\WIN7 Driver\\Telit DE910\\ Telit_UC_CC_DE_CE_USB_Driver_WinDesktop_2000_XP_Vis ta_Seven_U8_00_03.zip...
Page 36
VT-M2M-BTA-DE User Guide:CD\\SW Guide\\DIGI Zigbee\\ZigBee ZGB XB24 user guide.pdf USB HUB SMSC 4604 Driver: CD\\WES7 Driver\\Smsc USB HUB 4604\\smsc_protouch_mpt_4.1.9.0_setup.exe.zip...
VT-M2M-BTA-DE 2. Base Control Turn on the product, boot to Windows. 2.1 CAN Control This test application use to test COM2CAN communication, it support 32bits system. Please install Microsoft .Net 2.0 or above version and USB2COM Driver in advance before run the application .
Page 38
VT-M2M-BTA-DE Step Details: 1. Prepare 2 devices, and connect CAN. 2. Enter windows7, look up COM number of USB2COM in device manager. 3. According to the step2, select COM14 and set CAN speed to 500k(support 20k,50k,100k,125k,250k,500k,1M), Open device. 4. Input data in first TextBox in “CAN Tx” GroupBox, Click “Send String”...
VT-M2M-BTA-DE 55555555 Fixed value, ID, use 3 Send data Hexadecimal string, present send decimal Length Represent data “uuuu” data char 2.2 GPIO Control Configure by BIOS option: Advanced >> Onboard Devices Configuration >> GPIO Configguration 2.3 Serial COM Control a. Run TestCommPC V2.3.3.exe...
Page 40
VT-M2M-BTA-DE b. Select PORT COM1 or COM2, select BAUD 115200, click ”Open”. c. Click “AutoTx”, COM1 transmit the data below cyclically. If connect the pin2 and pin3 of COM1, it will receive the data, and show on the right.
VT-M2M-BTA-DE 2.5 SD card Control a. Insert SD card , then look over device: 2.6 ADXL345 Control a. Run Test_ADXL345_BayTrail_Net20.exe, click “start Detect”.
Page 44
VT-M2M-BTA-DE b. Shake the product, the value of X,Y,Z will change.
VT-M2M-BTA-DE 3.2 3G Control HE910 only support WCDMA. a. Click the network icon, choose the HE910, click the connect icon. b. Click dial icon. Tip: If it fail, try again.
Page 47
VT-M2M-BTA-DE DE910 only support CDMA2000. a. Fill the Username: “card”, Password: “card”, Number: “#777”.
VT-M2M-BTA-DE 4. GPS Module a. Click RCT-1[1].1.0BETA.exe, use the right key of the mouse, choose Run as administrator. b. Click COM icon, choose COM3, 38400.
Page 49
VT-M2M-BTA-DE c. Click OPEN icon, starting receive data.
VT-M2M-BTA-DE 5. ZigBee Control a. Install 40003002_B.exe, when it finish, it will generate X-CTU. b. Run X-CTU, choose Communication port(COM4). c. choose Terminal...
Page 51
VT-M2M-BTA-DE 1. Input “+++”, ZigBee respond “OK”. 2. Input “atce 1”, ZigBee respond “OK”. 3. Input “atcn”, Zigbee respond “OK”. 4. Wait a few seconds, Zigbee enter since the resumption of spontaneous mode. For an example, input ”a”, when Zigbee respond “a”.
Page 52
VT-M2M-BTA-DE US Office: Vantron Technology, Inc. Address: 1292 Kifer Road #807, Sunnyvale, CA 94086 Tel: 510-304-7666 Email: sales@vantrontech.com China Office: Chengdu Vantron Technology,Ltd Address: 3rd floor, 3rd building, No.9, 3rd WuKe East Street, WuHou District, Chengdu, P.R. China 610045 Tel: 86-28-8512-3930/3931, 8515-7572/6320 Email: sales@vantrontech.com.cn...
