Parts and Their Functions

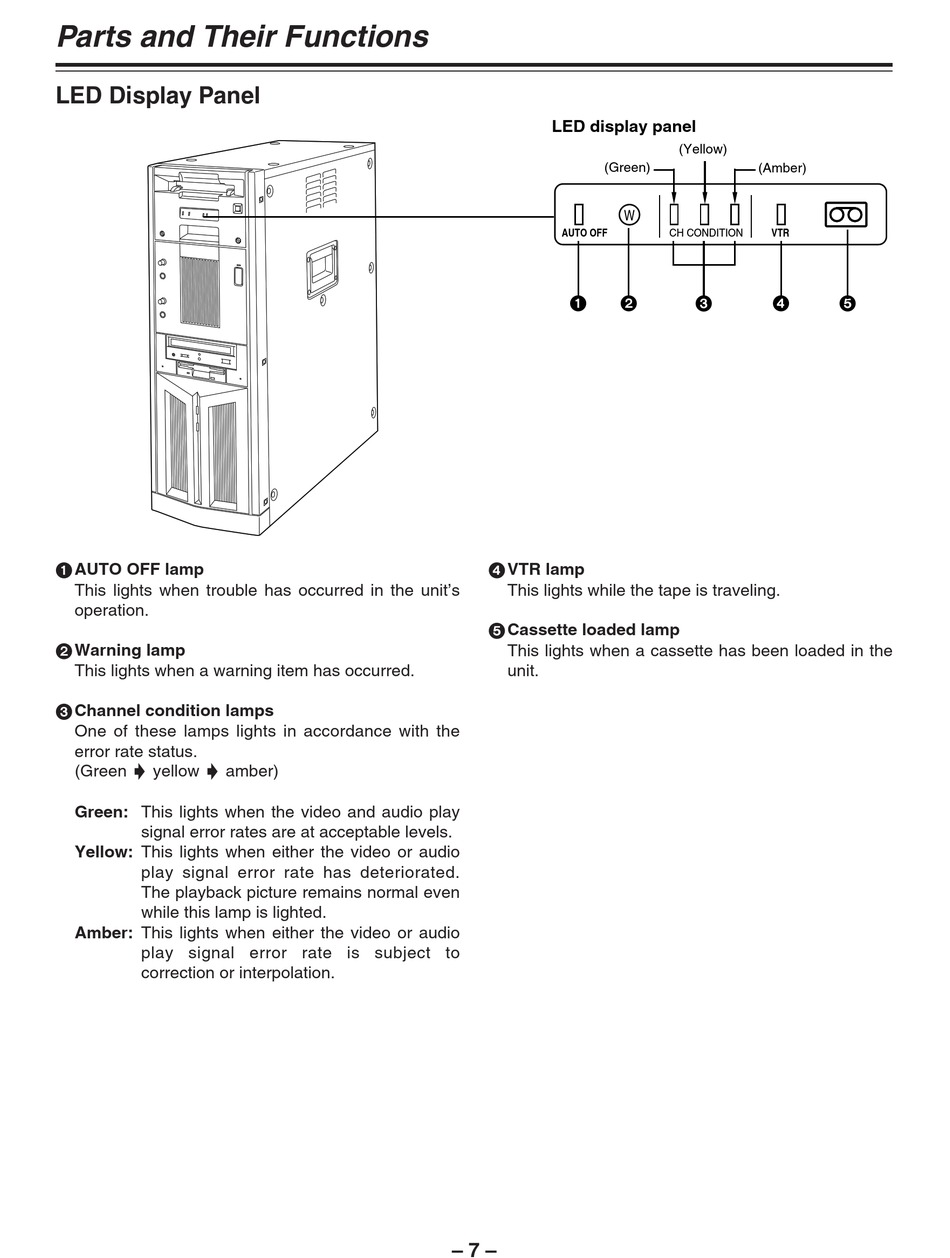

LED Display Panel

1 AUTO OFF lamp
This lights when trouble has occurred in the unit's
operation.
2 Warning lamp
This lights when a warning item has occurred.
3 Channel condition lamps
One of these lamps lights in accordance with the
error rate status.
(Green 5 yellow 5 amber)
Green: This lights when the video and audio play
signal error rates are at acceptable levels.
Yellow: This lights when either the video or audio
play signal error rate has deteriorated.
The playback picture remains normal even
while this lamp is lighted.
Amber: This lights when either the video or audio
play signal error rate is subject to
correction or interpolation.
LED display panel
(Green)
W
AUTO OFF
1
2
4 VTR lamp
This lights while the tape is traveling.
5 Cassette loaded lamp
This lights when a cassette has been loaded in the
unit.
– 7 –
(Yellow)
(Amber)
CH CONDITION
VTR
3
4
5
