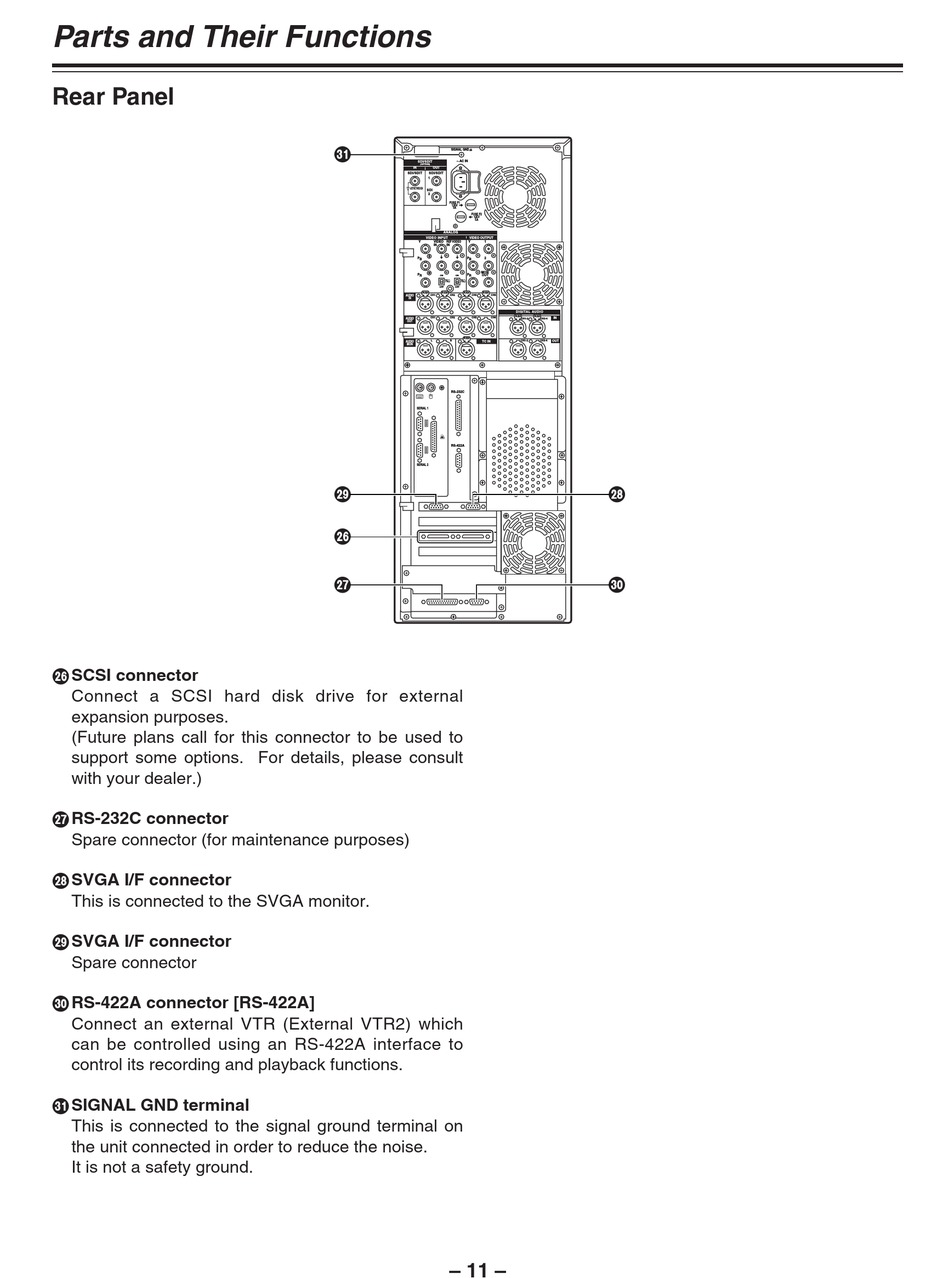

Parts and Their Functions
Rear Panel
J SCSI connector
Connect a SCSI hard disk drive for external
expansion purposes.
(Future plans call for this connector to be used to
support some options. For details, please consult
with your dealer.)
K RS-232C connector
Spare connector (for maintenance purposes)
L SVGA I/F connector
This is connected to the SVGA monitor.
M SVGA I/F connector
Spare connector
N RS-422A connector [RS-422A]
Connect an external VTR (External VTR2) which
can be controlled using an RS-422A interface to
control its recording and playback functions.
O SIGNAL GND terminal
This is connected to the signal ground terminal on
the unit connected in order to reduce the noise.
It is not a safety ground.
O
SIGNAL GND
SDI/SDIT
AC IN
(OPTION)
IN
OUT
SDI/SDIT
SDI/SDIT
1
ACTIVE THROUGH
SDI
2
FUSE F1
125V
5A
FUSE F2
125V
5A
ANALOG
VIDEO INPUT
VIDEO OUTPUT
Y
VIDEO
REF VODEO
Y
1
IN
IN
P B
P B
2
MON
P R
P R
ON
ON
OUT
75≠
75≠
OFF
OFF
PUSH
PUSH
PUSH
PUSH
AUDIO
CH1
CH2
CH3
CH4
IN
PUSH
AUDIO
CH1
CH2
CH3
CH4
OUT
PUSH
L
R
AUDIO
TC IN
MON
RS-232C
SERIAL 1
RS-422A
SERIAL 2
M
J
K
– 11 –
DI G I TAL AUDI O
PUSH
IN
CH1-2
CH3-4
CH1-2
CH3-4
OUT
L
N
