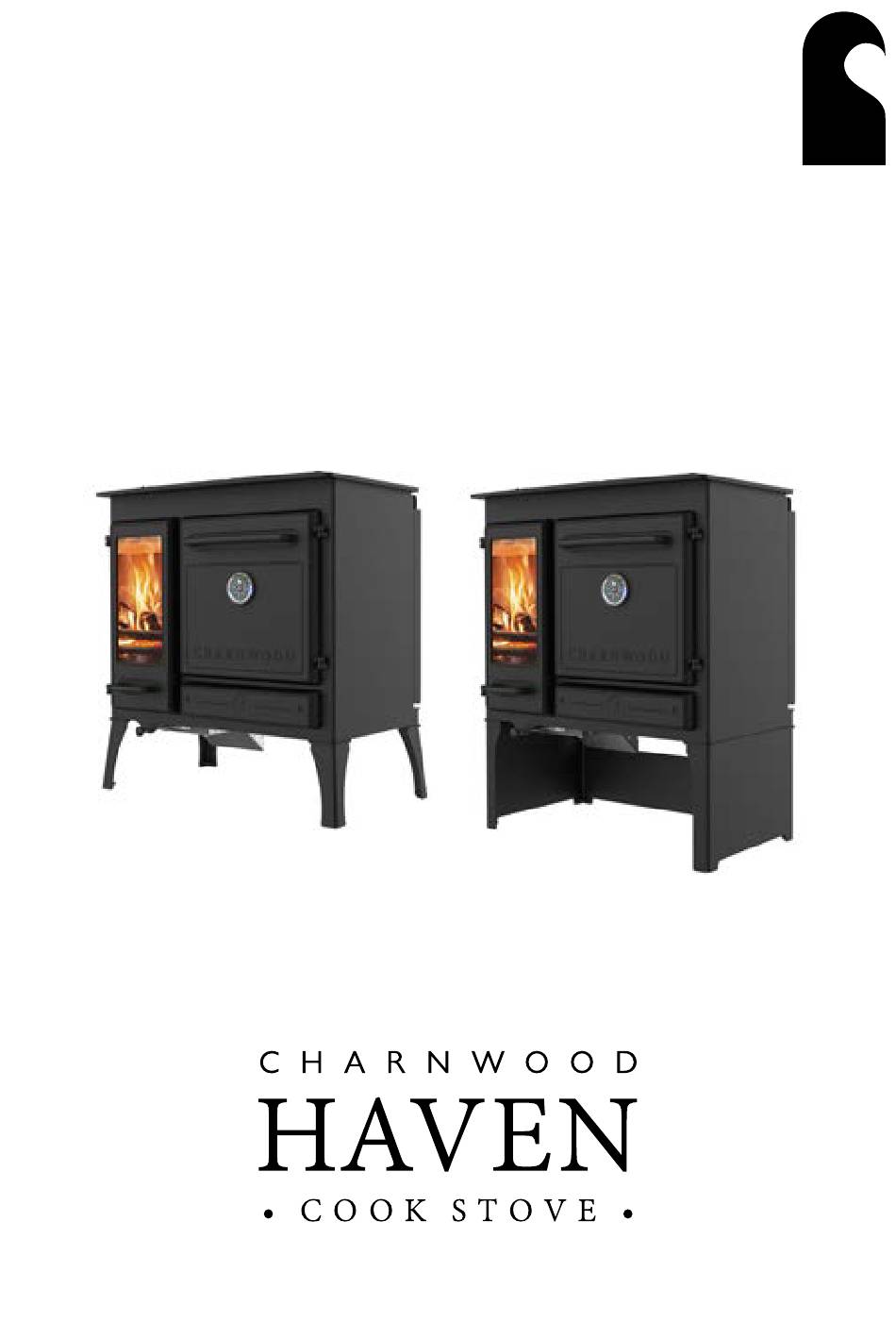

- Page 1 ® Operating & Installation Instructions...
-
Page 3: Table Of Contents
INSTALLATION INSTRUCTIONS UNPACKING THE STOVE HEALTH AND SAFETY PRECAUTIONS SPECIFICATION CO ALARMS CHIMNEY HEARTH AND FIRE SURROUND CONNECTIONS TO FLUES SOOT DOORS PRE LIGHTING CHECK COMMISSIONING CAA AND SMOKE CONTROL HAVEN DIMENSIONS HAVEN PARTS LIST CERTIFIC ATION Ref.Haven v4 11.2022... -
Page 4: Quick Guide
SERVICING Stove should be serviced by a professional at least once a year. LIGHTING AND CONTROLLING THE FIRE Rotate the tool clockwise. (into position 1) Suitable fuels for your Charnwood: Wood logs Unsuitable fuels: Petroleum coke Rotate the tool anti-clockwise. -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS ® Congratulations on becoming the owner of a Charnwood Haven Approximate suitable log sizes are: Stove. Your stove has been approved in smoke controlled areas to 180mm(7in) - 210mm (8.25”) long and 75mm (3in) diameter burn wood logs if it is used in accordance with these instructions. It is very important that you read and understand these instructions Log moisture content of less than 20% is recommended. -
Page 6: Controlling The Fire
Charnwood. The rate of burning and hence the output is controlled by the air The Charnwood Haven is fitted with an air control stop for use in a control (see Fig.1) smoke control area. -
Page 7: Refuelling
(this will help to reduce tar deposits in the may be purchased from your supplier or, in case of difficulty, from chimney). Some experimentation may be necessary to find the Charnwood. setting most suitable for the type of fuel being used and the draw on the chimney. -
Page 8: Throat Plate And Flueway Cleaning
It is necessary to let the fire out to carry out these operations. The Haven throat plate is one brick. To remove the throat plate, slide it forwards so that it clears the back brick, then lift and rotate so that the opposite side clears the top of the remaining side brick and can be gently lowered. -
Page 9: Chimney Sweeping
OPERATING INSTRUCTIONS ® door by unscrewing the 2 x countersunk Allen screws, then by using kept clean in most situations: a brush or a vacuum cleaner, clean out all accessible areas. Once all areas are thoroughly cleaned, replace the flue gas diverter ensuring a) Wet or unseasoned wood, or logs overhanging the front fence will the ‘R’... -
Page 10: Co Alarm
“Warning Note” above. IF YOU NEED FURTHER HELP If you need further help with your Charnwood then your Installer will be able to provide the answers to most questions. Your Local Charnwood Premier Dealer has a great deal of experience and will also be able to provide helpful advice. -
Page 11: Installation Instructions
Once in place, the cook plate should be firmly pushed External air supply kits are available please contact Charnwood for down onto the rope seal to bed it in. more information. Instruction sheet ref: TIS 120... -
Page 12: Co Alarms
Single wall flue pipe is suitable for connecting the stove to the chimney The Haven must be connected to the flue using flue pipe of 125mm but is not suitable for using for the complete chimney. If it is found (5”) diameter. -
Page 13: Soot Doors
INSTALLATION INSTRUCTIONS ® SOOT DOORS Soot door inside or rear of chimney In most back outlet installations it will be necessary to have a soot door to enable the chimney to be swept. Soot doors may either Register plate be in the actual brickwork of the chimney, the register plate or the connecting flue pipe. - Page 14 1993 including designation and supervision of smoke control areas and you can contact them for details of Clean Air Act requirements. The Haven has been been recommended as suitable for use in smoke control areas when burning wood logs. The stove includes a factory- fitted modification to the air control to prevent complete closure of the air supply.
-
Page 15: Haven Dimensions
HAVEN DIMENSIONS ® VERTICAL REAR FLUE ADAPTOR To suit 125mm (5”) flue pipe Plan View Front View Side View Rear View... -
Page 16: Haven Parts List
Charnwood Haven Parts List HAVEN PARTS LIST Issue A ® Item Part No. Description Item Part No. Description 008/DB136 Cook Plate Rope Seal 008/FFM091 Door Catch Roller 008/DB005 Fire Door Rope Door Seal 008/DB071 Door Insulation 008/FW29 Door Seal Adhesive... -
Page 17: Certific Ation
Bishops Way, Newport, Isle Of Wight PO30 5WS, United Kingdom A Division of A.J.Wells & Sons Limited Registered In England No. 03809371 CE certificate for compliance with EN13240:2001 EN13240:2001 ROOMHEATERS FIRED BY SOLID FUEL Model: HAVEN DB11-CPD-2022 EC Certificate of conformity no: Fuel type: WOOD LOGS EN13240:2001 In accordance with Standard: 6.6kW... - Page 18 ErP (EU 2015/1187) EN - PRODUCT FICHE IT - SCHEDA PRODOTTO FR - FICHE DE PRODUIT PL - KARTA PRODUKTU MANUFACTURER MARQUE MARCHIO Bishops Way, Newport, Isle of Wight PO30 5WS, United Kingdom MARCA A Division of A.J.Wells & Sons Limited Registered in England No. 03809371 MODEL MODÈLE MODELLO...
- Page 20 your premier dealer...
