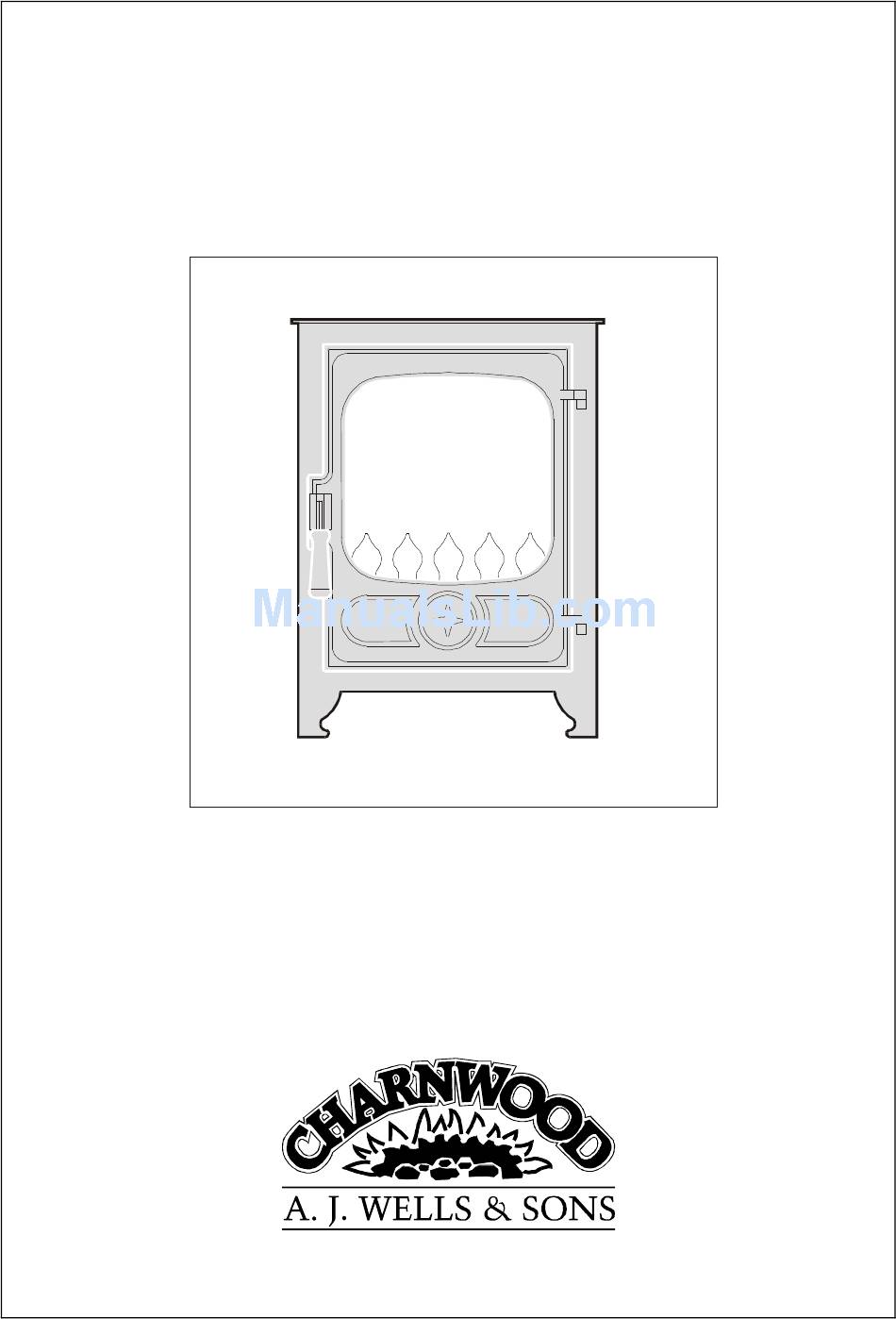

Page 1: Installation Instructions
CHARNWOOD GROSVENOR Operating Installation Instructions Bishops Way, Newport, Isle Of Wight, PO3O 5WS, U.K. Tel: (01983) 537799 Fax: (01983) 5377887... -
Page 2: Safety Reminders
Safety Reminders Charnwood stoves are efficient appliances giving off convected, conducted and radiated heat. All the surfaces of the stove (except the controls,) are working surfaces and become hot in use. They must not be touched or have any combustible objects or material placed on or near them. -
Page 3: General Notes
Switching On/ Ignition. Depress the control knob and turn counter clockwise. Gas will flow to the pilot burner, the piezo igniter will give off a high voltage spark & the pilot burner will light. (More than one attempt may have to be made on first lighting the fire.) Keep the control knob depressed for approximately... - Page 4 Should the stove burner cut out for any reason you should not try to re-light it for at least 5 minutes. If you are then unable to re-light the pilot as described earlier you should contact your stove supplier or engineer.
-
Page 5: Problem Solving
Ideally a vacuum cleaner should be used, but if not a soft brush will do. 2. Check the condition of the coals. Any damaged ones will affect the efficient operation of the stove and should be replaced with new ones available from your stove supplier. -
Page 6: Connection To The Chimney
Flue Spillage Monitoring System. Charnwood Grosvenor stoves are fitted with an oxygen depletion sensitive pilot. Location And Recommended Hearth Charnwood Grosvenor... -
Page 7: Gas Connection
Pressures to be as stated on the data plate. Before any coals are placed in position make sure that the burner is operating correctly. The flame should be fairly even across the burner top. Under normal circumstances no additional room ventilation is needed. - Page 8 1st Layer below shown dotted Air Tunnel Air Tunnel Air Tunnel Fig. 3. Coal Layer 1 Natural Gas Fig. 4. Coal Layer 2 Natural Gas Page 8 SV 2/00 ø8.0 Holes...
- Page 9 1st Layer below, shown dotted 3rd Layer Fig. 5. Coal Layer 1 LPG Fig. 6. Coal Layers 2 & 3 LPG Page 9 SV 2/00 ø8.0 Holes...
