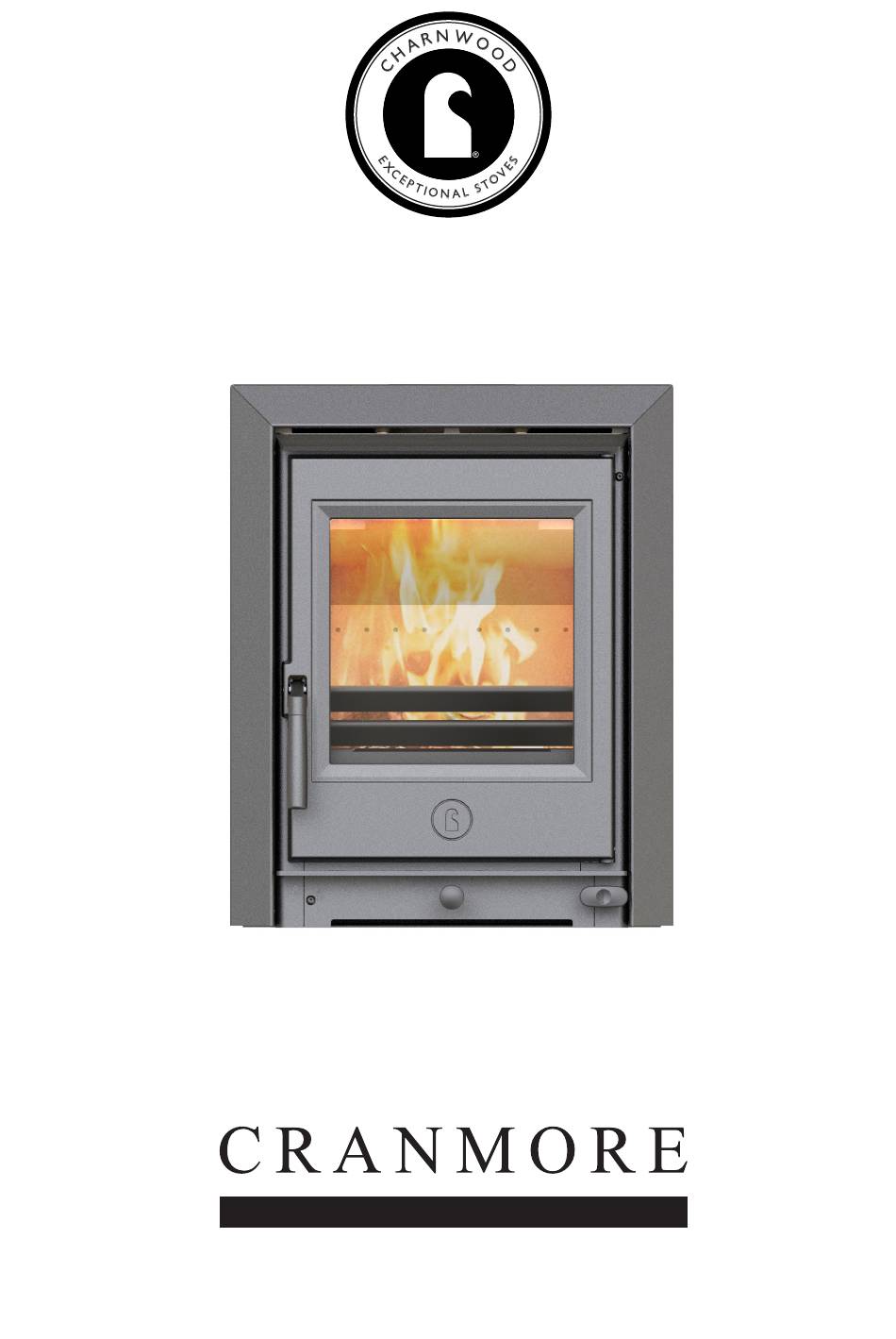

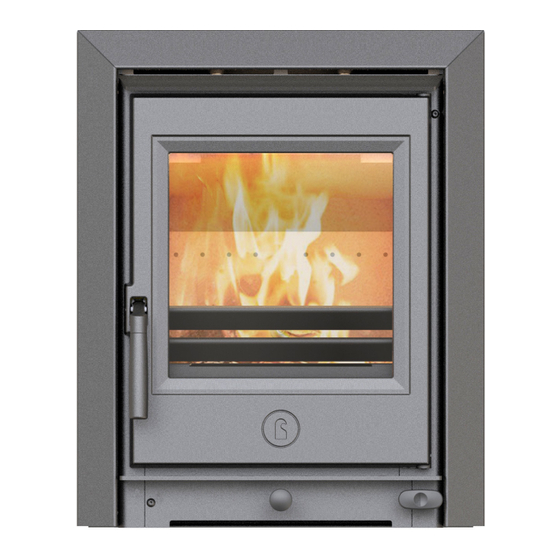

- Page 1 INSERT Operating & Installation Instructions...
-
Page 3: Table Of Contents
CO ALARMS CHIMNEY HEARTH AND FIRE SURROUND PREPARATION OF FIREPLACE PRE LIGHTING CHECK COMMISSIONING CAA AND SMOKE CONTROL MARKET SURVEILLANCE CRANMORE INSERT DIMENSIONS CRANMORE 5 PARTS LIST CERTIFICATION EUROPEAN INFORMATION SHEET MARKING AND TECHNICAL DATASHEET Ref. Cranmore Insert v1 05.2024... -
Page 4: Quick Guide
Have chimney swept twice a year. Chimney can be swept through stove. Boost SERVICING Stove should be serviced by a professional at least once a year. LIGHTING AND CONTROLLING THE FIRE Suitable fuels for your Charnwood: Wood logs Unsuitable fuels: Petroleum coke Liquid fuel Household waste... -
Page 5: Operating Instructions
RIDDLING GRATE Before lighting the stove, check with the installer that the work and Your Charnwood stove is fitted with a riddling grate to enable easy checks described in the Installation Instructions have been carried ash removal. The grate has two positions:... -
Page 6: Lighting
OPERATING INSTRUCTIONS Open the air control fully (boost position) when lighting or when LIGHTING rapid burning is required. It should not be left fully open for long periods as this can cause over-firing or excessive smoke production. On initial lighting, the stove may smoke and give off an odour as the For a higher burning rate move the air control to the ‘Nominal’... -
Page 7: Cleaning And Maintenance
To make ash be cleaned with a damp lint-free cloth when the stove is cold. Should removal easier there is a special Charnwood ash carrier available. re-painting become necessary, high temperature paints are available This may be purchased from your supplier or, in case of difficulty, from your supplier or from stove shops. -
Page 8: Throat Plate And Flueway Cleaning
OPERATING INSTRUCTIONS THROAT PLATE AND FLUEWAY CLEANING after sweeping. In situations where it is not possible to sweep through the appliance It is important that the throat plate and all the stove flueways are kept the installer will have provided alternative means, such as a soot clean in order to prevent potentially dangerous fume emission. -
Page 9: Troubleshooting
IF YOU NEED FURTHER HELP If blackening of the glass still occurs check that all flue connections are If you need further help with your Charnwood then your Installer well sealed. It is also important that the chimney draw is sufficient and will be able to provide the answers to most questions. -
Page 10: Health And Safety Precautions
Document J is to have a permanently open air vent into the room. Stove weight 105kg The Cranmore Insert has a 5kW output and therefore a permanent Flue gas temperature 279°C air vent is not normally required. If the air permeability is less than Flue gas mass flow 4.4g/s... -
Page 11: Chimney
INSTALLATION INSTRUCTIONS Fig. 7 Minimum distances from combustibles can be used either internally or externally. It might be appropriate to prove the chimney function to EN13384-2:2015+A1:2019. National installation and building regulations should be met, often T400 G is required. Single wall flue pipe is suitable for connecting the stove to the chimney but is not suitable for using for the complete chimney. -
Page 12: Preparation Of Fireplace
INSTALLATION INSTRUCTIONS flat area around the opening. Details are shown in Fig. 9. fireback and any loose in-fill material. The surround and opening for the appliance must conform with Fig.9. The flat area around the opening should be a minimum of 500mm wide and 600mm high. - Page 13 INSTALLATION INSTRUCTIONS Fig. 13 Flue collar more than five 90º bends and two 45º elbows. The 80mm diameter spigot, provided with the stove should be fitted on the outside of the Upper flue collar convection case, using two self tapping screws and the duct should Collar can be positioned as necessary Flue liner be terminated on the spigot with a jubilee clip.
- Page 14 INSTALLATION INSTRUCTIONS excess air ducting still in the opening can be pulled out at the external casing ensuring that a good seal is made with the side flanges. It is termination point and trimmed to fit the grille selected. Ensure that recommended to use heat resistant plaster on the wall surrounding the air supply duct is not kinked during the fitting process.
- Page 15 INSTALLATION INSTRUCTIONS Fig. 19 Connect inner flue collar Fig. 22 Lower trim Flue pipe Convection casing Upper flue collar Inner flue collar Stove wall Sealed with 8mm self-adhesive fibreglass webbing Secure with 2 x M6 nuts Fig. 20 Attach trim Fig.
-
Page 16: Pre Lighting Check
(i.e. worst conditions). Warm the appliance and flue before carrying The Cranmore Insert has been been recommended as suitable for out the spillage test. Light a smoke match from the middle of a bed use in smoke control areas when burning wood logs. -
Page 17: Market Surveillance
MARKET SURVEILLANCE To replicate the nominal performance results obtained in the type test, the following parameters must be used: Air Setting: Nominal (1 click in from max out). Basic Firebed: 0.48kg. Kindling: 0.28kg, small section pine kindling started with door cracked to start Heavy Kindling: 1.73kg of heavier section Beech wood. -
Page 18: Cranmore Insert Dimensions
CRANMORE INSERT DIMENSIONS To fit 5inch (125mm) flue... -
Page 19: Cranmore 5 Parts List
Charnwood Cranmore Insert Parts List CRANMORE 5 PARTS LIST Issue A 41 42 25 26 22 21 Item Part No. Description Item Part No. Description 008/FW29 Door adhesive 008/TR047 DEFRA Stop 008/BR058 Door Seal 008/AY37 Air Control Knob 006/PV19 Glass... -
Page 20: Certification
Bishops Way, Newport, Isle Of Wight PO30 5WS, United Kingdom A Division of A.J.Wells & Sons Limited Registered In England No. 03809371 CE certificate for compliance with BS EN16510-2-2:2022 BS EN16510-2-2:2022 ROOMHEATERS FIRED BY SOLID FUEL Cranmore Insert Model: EC Certificate of conformity no: TT11-CPD-2024 WOOD LOGS... -
Page 21: European Information Sheet
(EU)2015/1185 - (EU)2015/1186 EUROPEAN INFORMATION SHEET Model identifier(s): Charnwood Cranmore Insert Test laboratory: RRF Indirect heating functionality: No Notified body no: 1625 Direct heat output: 5(kW) Test report no: 1021 24 3639 Indirect heat output: - (kW) Harmonized standard: EN 16510-2-1:2022... -
Page 22: Marking And Technical Datasheet
BS EN 16510-1:2022 EN 16510-1:2022 (E) MARKING AND TECHNIC AL DATASHEET Model identifier(s): Charnwood Cranmore Insert Test laboratory: RRF Notified body no: 1625 Designation of Room Leakage Combustion air Door closure Tightness Test report no: RRF – 1021 24 3639... - Page 23 BS EN 16510-1:2022 EN 16510-1:2022 (E) MARKING AND TECHNIC AL DATASHEET Parameter Unit Explanation Value slow Particulate matter emission at 13 % oxygen content at heat output at slow combustion if specified, rounded mg/m (13 % O to the nearest integer Minimum flue draught at nominal heat output, rounded to the nearest integer part Minimum flue draught at part load heat output if specified, rounded to the nearest integer...
- Page 24 BS EN 16510-1:2022 EN 16510-1:2022 (E) MARKING AND TECHNIC AL DATASHEET Please see table on Page 2 of 3 for for figures. Page 3 of 3...
- Page 25 EN - PRODUCT FICHE FR - FICHE DE PRODUIT MANUFACTURER MARQUE MARCHIO Bishops Way, Newport, Isle of Wight PO30 5WS, United Kingdom MARKA A Division of A.J.Wells & Sons Limited Registered in England No. 03809371 MODEL MODÈLE MODELLO MODEL EFFICIENCY CLASS CLASSE D’EFFICACITÉ...
- Page 26 your premier dealer...
