Summary of Contents for Charnwood Country 8B
-

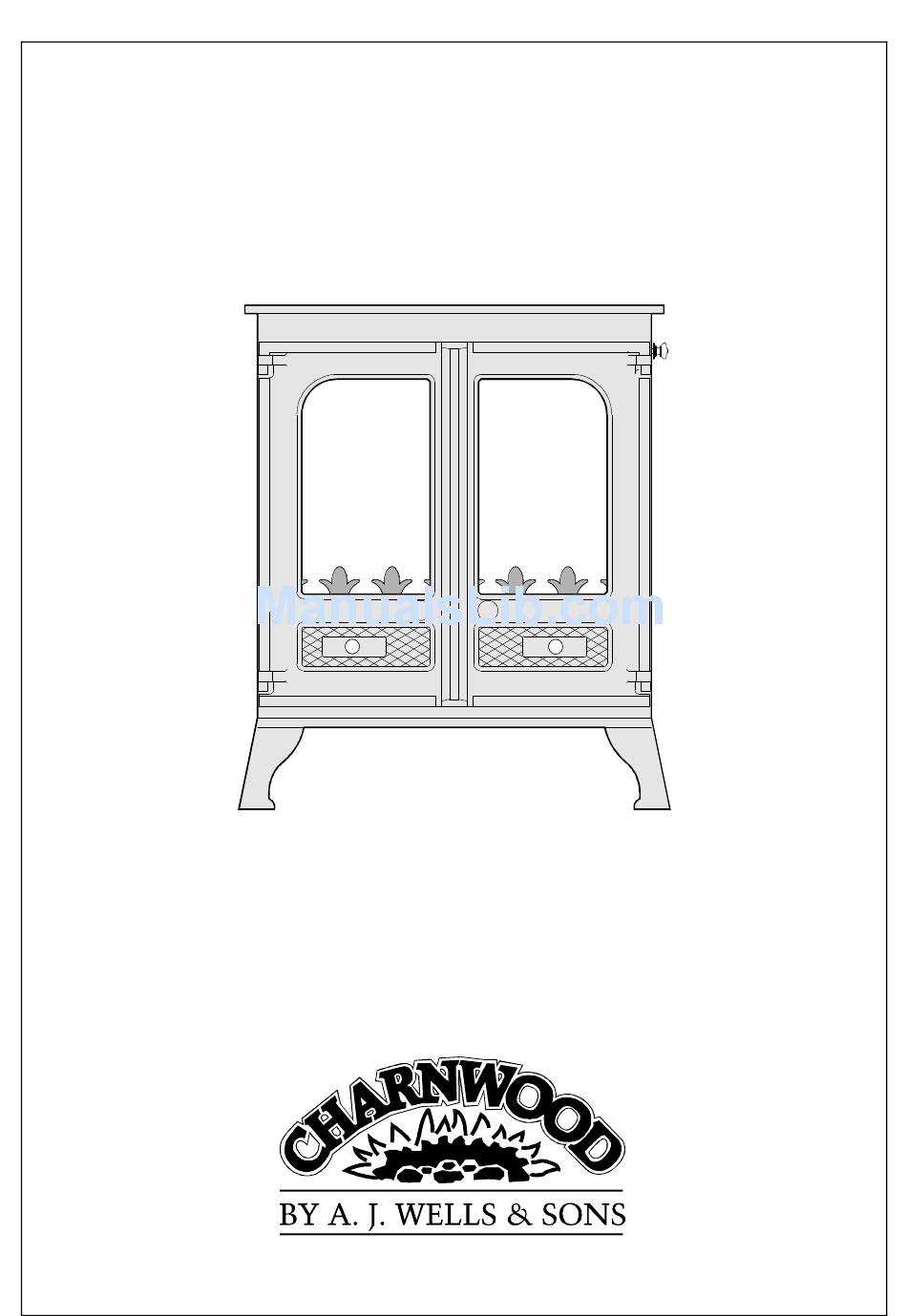

Page 1: Installation Instructions
CHARNWOOD COUNTRY 8B WOODBURNER WITH BOILER Operating Installation Instructions Bishop's Way, Newport, Isle Of Wight, PO3O 5WS, U.K. Tel: (01983) 527552 Fax: (01983) 821267... -
Page 2: Door Operation
CHARNWOOD COUNTRY 8B WOODBURNER OPERATING INSTRUCTIONS Before lighting the stove check with the installer that the work and checks described in the Installation Instructions have been carried out correctly and that the chimney has been swept, is sound and free from any obstructions. -
Page 3: Overnight Burning
To make ash removal easier, when burning coal or smokeless fuel, there is a special Charnwood ash carrier available. This enables the whole ashpan to be placed in the sealed carrier and taken outside. These may be purchased from your supplier or, in case of difficulty, from ourselves. -
Page 4: Cleaning And Maintenance
Check that: a) the air inlet is not obstructed in any way, Page 4 Country 8B WB 10/00 b) chimneys and flueways are clear, c) that a suitable fuel is being used, d) that there is an adequate air supply... -
Page 5: Chimney Fires
A suitable fuel is being used. e) Door seals and airwash slide are intact. Page 5 Country 8B WB 10/00 Over-Firing If the fire is over-fired it will cause premature failure of the internal fire parts. Overfiring is occurring when any parts of the fire begin to glow red. -
Page 6: Health And Safety Precautions
Solid Fuel burning appliances, flues and chimneys must also be observed. PERFORMANCE The output of the Country 8B WB is 7.0 kW (23,800 Btu/h) to water and 2.5 kW (8,500 Btu/h) to the room. These outputs are based on a 2 hourly... -
Page 7: Central Heating System
Central Heating Flow Injector Tee Common Return to Boiler (28mm Pipe) Page 7 Country 8B WB 10/00 inches) each side and 300mm (12 inches) above the appliance should give sufficient air circulation. If a wooden mantelpiece or beam is used... -
Page 8: Connections To Flues
Figs. 8 to 11. PRE LIGHTING CHECK Ensure that the throat plate is fitted Page 8 Country 8B WB 10/00 Soot Door In Side or Rear Of Chimney Register Plate Fig. 8. Vertical Register Plate... - Page 9 Also check all joints and seals. On completion of the installation and commissioning please leave the operating instruc- tions with the customer and advise them on the use of the appliance. Page 9 Country 8B WB 10/00...
