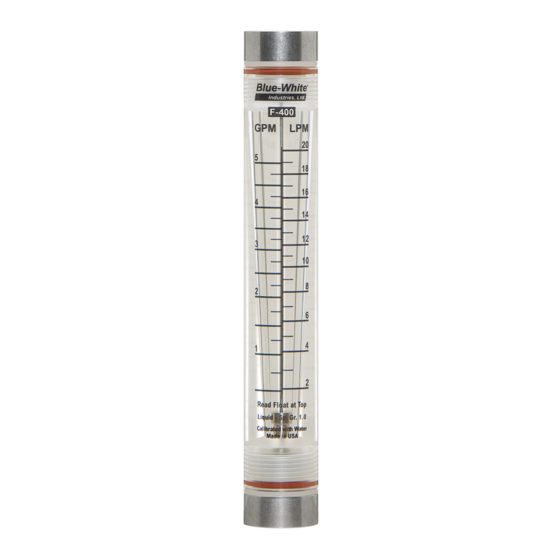

- Page 1 ® F-400 Flowmeter Instruction Manual Industries, Ltd. Building Reliable Products that Enhance the Quality of Life ® Your Blue-White F-400 Series In-Line Flowmeter This flowmeter was designed to be easily installed. Please read this Instruction guideline before installing your flowmeter.
- Page 2 F-400 Page 2 INSTALLATION GUIDE 1 The flowmeter must be installed in a vertical plane to ensure accuracy. Misalignment may damage the flowmeter and also may cause the o-ring seals to leak. 2 Use only PTFE tape on the threaded adapters.
- Page 3 F-400 Page 3 EXPLODED VIEW, PARTS LIST AND SPECS EXPLODED VIEW PARTS LIST Item Catalog Number Description F-4019 1/4” FPT Adapter (PP) F-4001NS 3/8” FPT Adapter (PP) F-4003NS 1/2” FPT Adapter (PP) 90003-119 O-ring, 117, (Viton)** Float (SS)* F-4004 Guide wire, (SS)*...
- Page 4 12 months from the date of factory shipment. Warranty coverage is limited to repair or replacement of the defective flowmeter only. Blue-White Industries does not assume responsibility for any other damage that may occur.
