Blue-White
®
F-462 Flowmeter
Instruction Manual
Industries, Ltd.
Building Reliable
Products that
Enhance the
Quality of Life
®

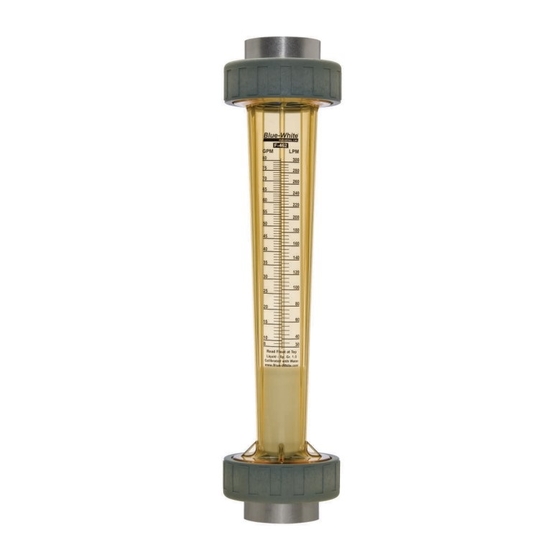

Your Blue-White F-462 Series
In-Line Flowmeter
This flowmeter was designed to be easily
installed. Please read this Instruction guideline
before installing your flowmeter.
Do not install the meter in direct sunlight.
The meter can be damaged by UV light.
Advertisement
Table of Contents
Related Manuals for Blue-White industries F-462 Series
Summary of Contents for Blue-White industries F-462 Series
- Page 1 Building Reliable Products that Enhance the Quality of Life ® Your Blue-White F-462 Series In-Line Flowmeter This flowmeter was designed to be easily installed. Please read this Instruction guideline before installing your flowmeter. Do not install the meter in direct sunlight.
- Page 2 F-462 Page 2 Installation Guideline 1 The flowmeter must be installed in a vertical plane to ensure accuracy. Misalignment may damage the flowmeter and also may cause the o-ring seals to leak. 2 Use only PTFE tape on the threaded adapters.
- Page 3 F-462 Page 3 Exploded View and Parts List EXPLODED VIEW PARTS LIST Item Catalog Number Description F-452004N Union Nut (Nylon) F-452330N 2.0” Adapter FNPT (PSF) F-452002 Float Stop (PSF) F-452043N O-Ring (Viton)* Float (PTFE) Meterbody (PSF) Shading indicates item not sold separately *EP Option Available PSF= polysulfone METER SPECS...
- Page 4 12 months from the date of factory shipment. Warranty coverage is limited to repair or replacement of the defective flowmeter only. Blue-White Industries does not assume responsibility for any other damage that may occur.
