Meter Body:
Floats:
Adapters:
O-Rings:
Union Nuts:
Float Stop: Polysulfone
Scale:

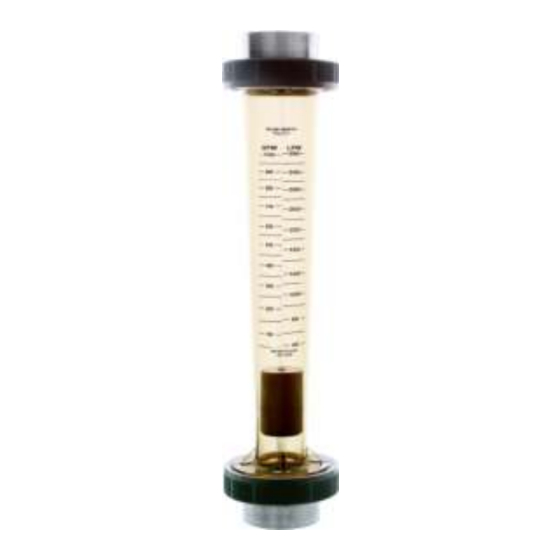

Your Blue-White F-452 Series In-Line Flowmeter
®
Your Blue-White flowmeter was designed to be easy to install.
Please read the Instruction Guideline on the next page before installing your flowmeter.
This flowmeter is an instrument, and special care should be taken when installing.
Check for damage while unpacking the flowmeter.
Remove the plastic tube that has been inserted during packaging for shipping reasons.
Be sure the meter is suitable for your application.
The maximum temperature and pressure is shown on the following page.
Although the meter may be suitable for other chemicals, Blue-White meters are tested
with water and air only. If you are unsure of the meters compatibility with your chemical,
consult the factory.
®
Blue-White guarantees the meter is suitable with air and water only.
BLUE-WHITE INDUSTRIES
F-452
Materials of Construction
Polysulfone
#316 Stainless Steel (optional: Teflon, Hastelloy C-276)
Polysulfone
Viton
Nylon
Permanent Silkscreen
®
Unpacking the Flowmeter
4-1/2 in.
(114.3 mm)
BLUE-WHITE
18-7/8 in.
(479.4 mm)
®
80000-368
Rev. 06/08/2001
Advertisement
Table of Contents
Related Manuals for Blue-White industries F-452 Series
Summary of Contents for Blue-White industries F-452 Series

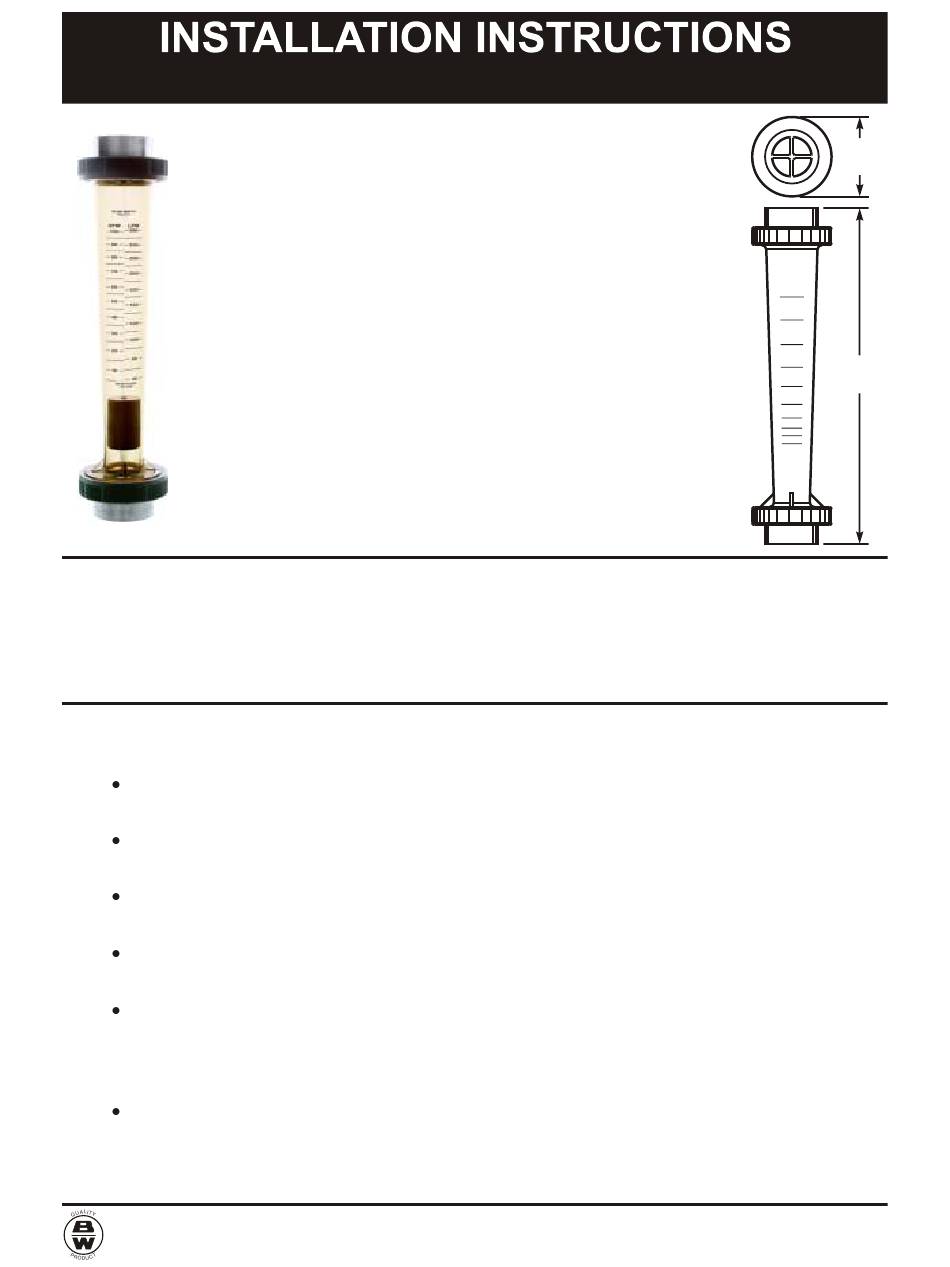

- Page 1 Scale: Permanent Silkscreen (479.4 mm) ® Your Blue-White F-452 Series In-Line Flowmeter ® Your Blue-White flowmeter was designed to be easy to install. Please read the Instruction Guideline on the next page before installing your flowmeter. This flowmeter is an instrument, and special care should be taken when installing.
- Page 2 Solenoid valves, or other quick opening valves cannot be used unless meter is protected against sudden bursts of flow. 5. Maximum working pressure not to exceed recommended psi at fluid temperature (see Temperature Vs. Pressure chart). BLUE-WHITE INDUSTRIES...
- Page 3 Flowmeters are tested and calibrated for water or air only. Although meters may be suitable for other chemicals, Blue-White cannot guarantee their suitability. It is the responsibility of the user to determine the suitability of the flowmeter in their application. BLUE-WHITE INDUSTRIES...
- Page 4 Maintenance The “Exploded View” drawing illustrates assembly of the F-452 series meter. If your flowmeter needs to be cleaned refer to this drawing when reassembling the unit. The tapered tube may be cleaned with a soft bottle brush. Use a MILD soap and water solution for cleaning purposes.
