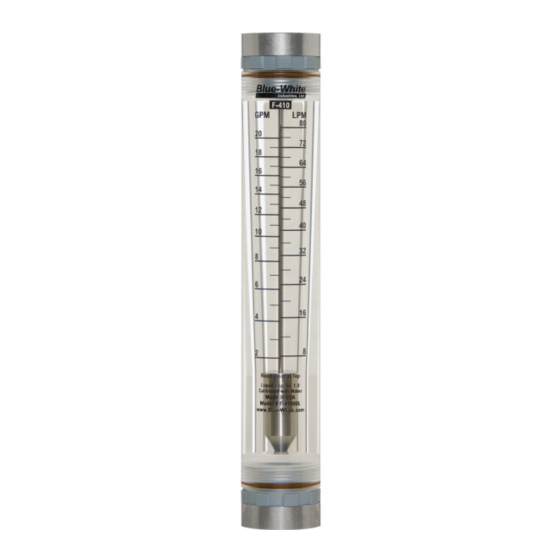

Blue-White industries F-410 Instruction Manual

Flowmeter

Blue-White

F-410 Flowmeter

Instruction Manual

Industries, Ltd.

Building Reliable

Products that

Enhance the

Quality of Life

Your Blue-White F-410 Series

In-Line Flowmeter

This flowmeter was designed to be easily

installed. Please read this Instruction guideline

before installing your flowmeter.

Table of Contents

Need help?

Do you have a question about the F-410 and is the answer not in the manual?

Page 1 ® F-410 Flowmeter Instruction Manual Industries, Ltd. Building Reliable Products that Enhance the Quality of Life ® Your Blue-White F-410 Series In-Line Flowmeter This flowmeter was designed to be easily installed. Please read this Instruction guideline before installing your flowmeter.
Page 2 F-410 Page 2 Installation Guideline 1 The flowmeter must be installed in a vertical plane to ensure accuracy. Misalignment may damage the flowmeter and also may cause the o-ring seals to leak. 2 Use only PTFE tape on the threaded adapters.
Page 3 F-410 Page 3 Exploded View and Parts List EXPLODED VIEW PARTS LIST Item Catalog Number Description F-4009 3/4” FPT Adapter (PP) F-4011 1” FPT Adapter (PP) F-4010K O-ring, 127 (Viton)** F-4013PP Wire holder (PP) Float (SS)* F-4012 Guide Wire (SS)*...
Page 4 12 months from the date of factory shipment. Warranty coverage is limited to repair or replacement of the defective flowmeter only. Blue-White Industries does not assume responsibility for any other damage that may occur.
