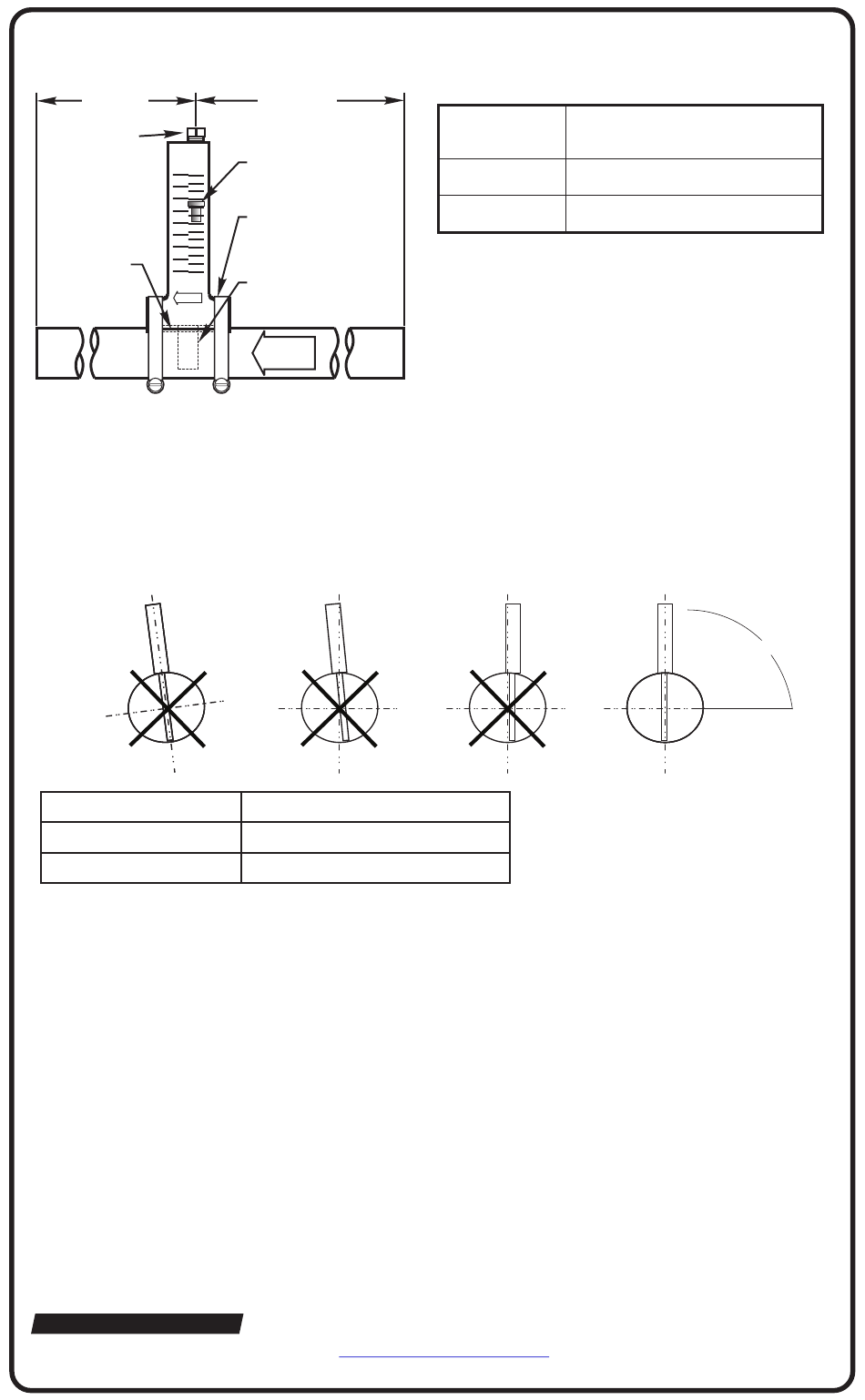

F-300 Flowmeter Installation Instructions
A
Cleaning
Access
Cap
Gasket
FLOW
Installation: To prevent debris from entering the meter, install the flowmeter
downstream from the filter if possible with at least the minimum straight pipe
dimensions called for in the above drawing. Drill the pitot tube hole in the top (12
o'clock position) of the horizontal pipe. Carefully remove all burrs. Insert the pitot
tube, with the gasket in place, into the drilled hole. Tighten the clamps alternately,
a little at a time. Make certain the flow direction is towards the pitot tube opening.
Examples:
WRONG
Not horizontal
within 2 degrees
Flowmeter size
1" thru 4"
6" thru 8"
Troubleshooting: Should the meter fail to read, make certain the openings in the
front and rear of the pitot tube are not clogged, that the pitot tube opening faces
the direction of the flow, and that you have installed the meter on the correct IPS
(ASTM-D-1785) type and size pipe. Note that the top of the float is the largest
diameter.
Accuracy = +/- 5% (L2), +/- 10% (L3)
Max Temperature = 190°F / 87.7°C
Maximum Pressure = 75 psi (5.2 bar)
Headloss = Maximum 1 psi across all pipe sizes
Note: Pressure and temperature limits are inversely proportional
®
Blue-White flowmeters are tested and calibrated for water only.
*NSF 50 listed for 1", 1.25", 1.5", 2" (L2), 2.5", 3", 4", and 6" (L3)
Blue-White
Industries, Ltd.
5300 Business Drive
Huntington Beach, CA 92649
B
Read Float
at Top
Stainless Steel
Clamp
Pitot Tube
DIRECTION
OF FLOW
WRONG
Not plumbed
thru centerline
Drill size for pitot tube
5/8" to 41/64"
3/4" to 49/64"
at 0 Psi (0 Bar)
Phone: 714-893-8529
®
Fax: 714-894-9492
E-mail: TechSupport@Blue-White.com
E-mail:
Sales@Blue-White.com
web: www.blue-white.com
Dimension
A
B
* Minimum acceptable dimensions.
Must be straight horizontal piping.
Models w/ suffix "P" = PVC pipe, SCH 40
and SCH 80 (IPS pipe, ASTM - D-1785)*
Models w/ suffix "T" = Copper Tubing, Type "K" or "L"
Models w/ suffix "M" = PVC pipe, PN10 and Pn16
WRONG
Not on vertical
centerline
Note: Incorrect installation may
result in a damaged pitot tube.
Accuracy (L2 and L3)
Outlet pipe length = 2 x Pipe I.D.*
Inlet pipe length = 5 x Pipe I.D.*
12 o'clock
RIGHT
Horizon
90º
+/- 2º
80000-557
11302017
Advertisement
Table of Contents
Related Manuals for Blue-White industries F-300
Summary of Contents for Blue-White industries F-300
- Page 1 F-300 Flowmeter Installation Instructions Dimension Accuracy (L2 and L3) Cleaning Access Read Float Outlet pipe length = 2 x Pipe I.D.* at Top Inlet pipe length = 5 x Pipe I.D.* Stainless Steel Clamp * Minimum acceptable dimensions. Gasket Must be straight horizontal piping.
- Page 2 Maintenance: The flowmeter body and all other parts can be cleaned by washing in a mild soap and water solution. A soft bristle brush will simplify cleaning inside the meter body. Note the float’s up position for re-assembly. Maximum Temperature = 190°F at 0 Psi (87.8°C at 0 Bar) Maximum Pressure = 75 PSI at 70°F (5.2 Bar at 21.1°C) Accuracy = +/- 5% (L2), +/- 10% (L3)
