Blue-White
®
F-451 Flowmeter
Instruction Manual
Industries, Ltd.
Building Reliable
Products that
Enhance the
Quality of Life
®

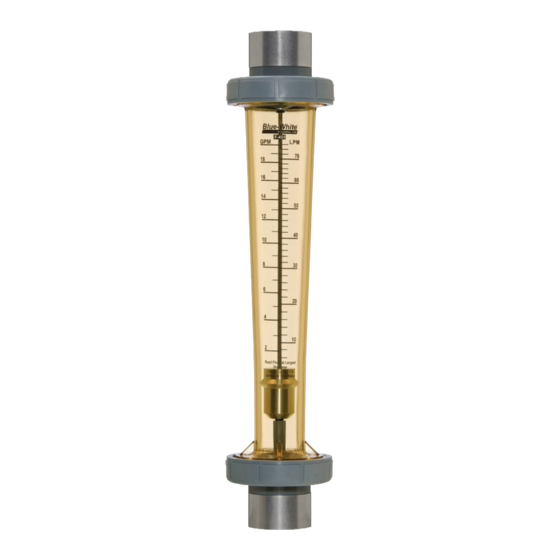

Your Blue-White F-451 Series
In-Line Flowmeter
This flowmeter was designed to be easily
installed. Please read this Instruction guideline
before installing your flowmeter.
Do not install the meter in direct sunlight.
The meter can be damaged by UV light.
Advertisement
Table of Contents
Related Manuals for Blue-White industries F-451
Summary of Contents for Blue-White industries F-451
- Page 1 Building Reliable Products that Enhance the Quality of Life ® Your Blue-White F-451 Series In-Line Flowmeter This flowmeter was designed to be easily installed. Please read this Instruction guideline before installing your flowmeter. Do not install the meter in direct sunlight.
- Page 2 F-451 Page 2 INSTALLATION GUIDE 1 The flowmeter must be installed in a vertical plane to ensure accuracy. Misalignment may damage the flowmeter and also may cause the o-ring seals to leak. 2 Use only PTFE tape on the threaded adapters.
- Page 3 F-451 Page 3 EXPLODED VIEW, PARTS LIST AND SPECS EXPLODED VIEW PARTS LIST Item Catalog Description F-45038N Union Nut F-45030N Adapter, vertical, 1” F/NPT (PSF) F-45036 Adapter, vertical, 1-1/2” M/NPT (PVC) F-45025 Wireholder 1-10, 2-20 (PSF) F-45025-2 LG Wireholder 3-30, 4-40...
- Page 4 12 months from the date of factory shipment. Warranty coverage is limited to repair or replacement of the defective flowmeter only. Blue-White Industries does not assume responsibility for any other damage that may occur.
