1
Introduction

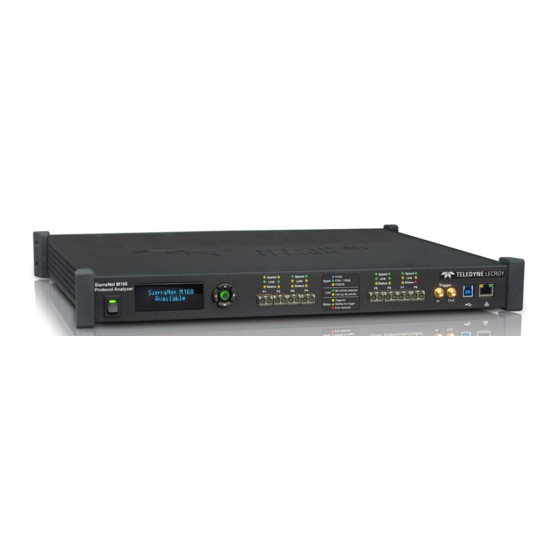

The SierraNet M168 is Teledyne LeCroy's 10 Gigabit Ethernet and 16 Gigabit Fibre Channel Analyzer and Jammer
platform. It has eight SFP+ 10 GigE / 16G FC ports. Up to 64 GB of capture memory allows for capturing of extensive
line-speed data.
The SierraNet M168 ports allow signals to pass through without re-timing, ensuring that the test platform is as transparent
as possible. The analyzer can be controlled either via a one (1) Gigabit Ethernet connection to the local network or via a
USB connection. The SierraNet M168 provides the user with easy-to-understand control panel and LED indicators.
Major features of the M168 include triggering on back-to-back events, use of counters within trigger conditions, and
multi-state (up to 24) triggering and filtering state machines with four transitions per state.
The Net Protocol Suite software for controlling the analyzer and displaying the captured data installs on the latest
Microsoft
Windows
. See the Readme file for the latest information on host-machine requirements.
®
®
2
Components
The analyzer package includes the following components:
SierraNet M168 Analysis platform
USB 3.0 cable, 1 meter
USB 2.0 cable, 1.8 meter
1 Gigabit Ethernet cable, 10 feet
Please see the SierraNet M168 User Manual on the installation DVD-ROM for component specifications and further
3
Unpacking the Analyzer
Inspect the received shipping container for any damage. Unpack the container and account for each of the system
components listed on the accompanying packing list. Visually inspect each component for absence of damage.
In the event of damage, notify the shipper and Teledyne LeCroy. Retain all shipping materials for shipper's inspection.
SierraNet
Quick Start
Before Starting
Use this document for quick installation and setup. If you
experience problems or need more information, see the
SierraNet M168 User Manual on the Installation DVD-ROM or at
the Teledyne LeCroy web site. For details about the latest
software version, see the Readme file on the
Installation DVD-ROM.
SierraNet M168 Protocol Analyzer
Three prong AC power cord
C13-C14 10A power cord, 2 meter
Installation DVD-ROM with software and documenta-
tion
M168

Advertisement

loading
Need help?

Need help?

Do you have a question about the Everywhereyoulook SierraNet M168 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teledyne Lecroy Everywhereyoulook SierraNet M168

  • Page 1 Inspect the received shipping container for any damage. Unpack the container and account for each of the system components listed on the accompanying packing list. Visually inspect each component for absence of damage. In the event of damage, notify the shipper and Teledyne LeCroy. Retain all shipping materials for shipper’s inspection.
  • Page 2 Front Panel Description Features The Analyzer has the following features on the front: Please see the SierraNet M168 User Manual for details on the Speed, Link and Status LEDs. [1] LED Indicators for P1-P4 and P5-P8 for Speed, Link and Status: [2] Power Switch Speed LEDs...
  • Page 3 Setting Up and Connecting 3. Connect your devices using SFP+ optics and a fiber cable suitable for your setup. Note: You must install the software before connecting the 4. Connect the Ethernet or Fibre Channel devices to port analyzer to the host machine for the first time. pairs P1/P2, P3/P4, P5/P6 and/or P7/P8.
  • Page 4 Product specifications are subject to change without notice. Microsoft and Windows are registered trademarks of Microsoft Inc. Teledyne LeCroy reserves the right to revise the information in this All other trademarks are property of their respective companies. document without notice or penalty.
