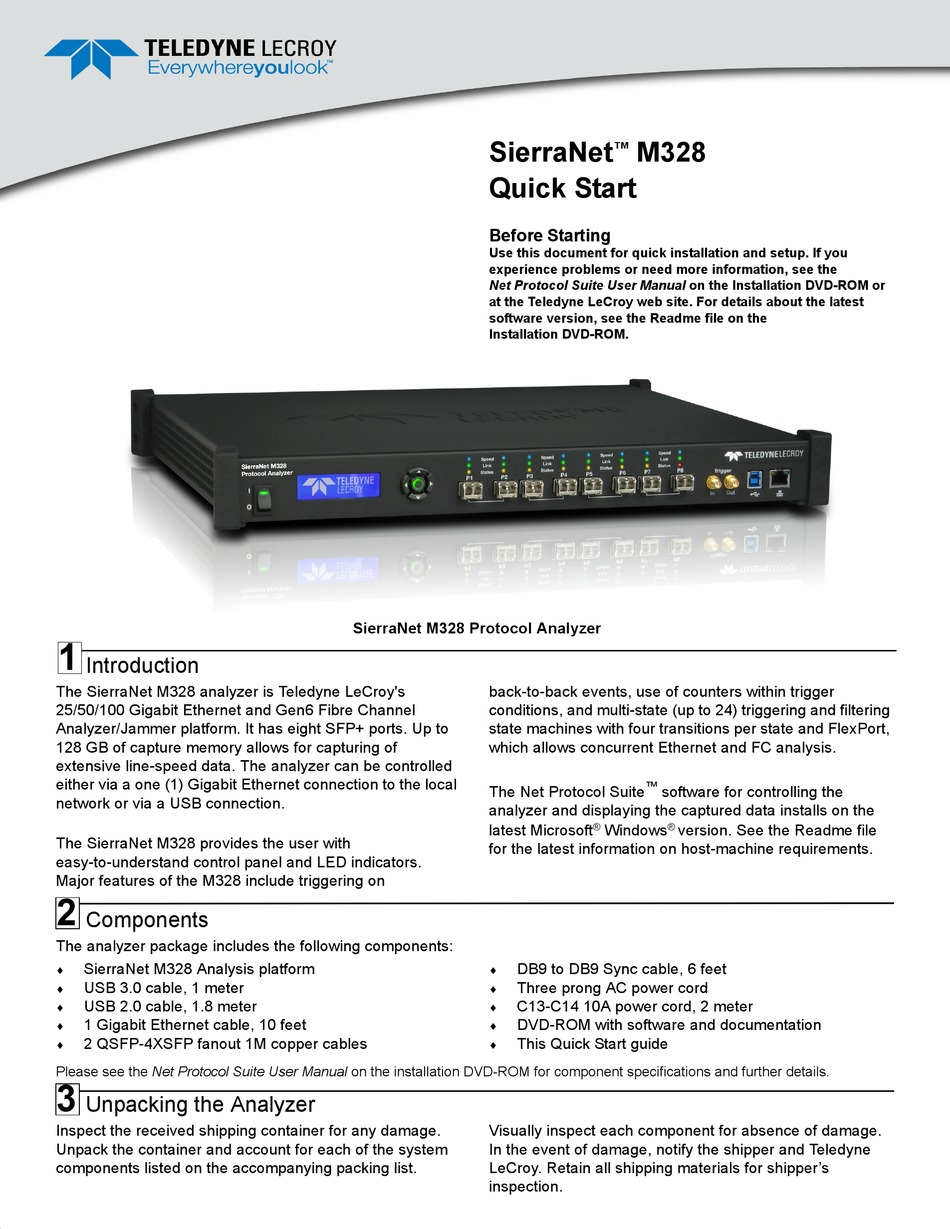

Teledyne Lecroy SierraNet M328 Quick Start

1
Introduction
The SierraNet M328 analyzer is Teledyne LeCroy's
25/50/100 Gigabit Ethernet and Gen6 Fibre Channel
Analyzer/Jammer platform. It has eight SFP+ ports. Up to
128 GB of capture memory allows for capturing of
extensive line-speed data. The analyzer can be controlled
either via a one (1) Gigabit Ethernet connection to the local
network or via a USB connection.
The SierraNet M328 provides the user with
easy-to-understand control panel and LED indicators.
Major features of the M328 include triggering on
2
Components
The analyzer package includes the following components:
SierraNet M328 Analysis platform

USB 3.0 cable, 1 meter

USB 2.0 cable, 1.8 meter

1 Gigabit Ethernet cable, 10 feet

2 QSFP-4XSFP fanout 1M copper cables

Please see the Net Protocol Suite User Manual on the installation DVD-ROM for component specifications and further details.
3
Unpacking the Analyzer
Inspect the received shipping container for any damage.
Unpack the container and account for each of the system
components listed on the accompanying packing list.
SierraNet

Quick Start

Before Starting
Use this document for quick installation and setup. If you
experience problems or need more information, see the
Net Protocol Suite User Manual on the Installation DVD-ROM or
at the Teledyne LeCroy web site. For details about the latest
software version, see the Readme file on the
Installation DVD-ROM.
SierraNet M328 Protocol Analyzer
back-to-back events, use of counters within trigger
conditions, and multi-state (up to 24) triggering and filtering
state machines with four transitions per state and FlexPort,
which allows concurrent Ethernet and FC analysis.
The Net Protocol Suite
analyzer and displaying the captured data installs on the
latest Microsoft
for the latest information on host-machine requirements.
DB9 to DB9 Sync cable, 6 feet

Three prong AC power cord

C13-C14 10A power cord, 2 meter

DVD-ROM with software and documentation

This Quick Start guide

Visually inspect each component for absence of damage.
In the event of damage, notify the shipper and Teledyne
LeCroy. Retain all shipping materials for shipper's
inspection.
M328
™
™
software for controlling the
Windows version. See the Readme file
® ®
