Editing Network Setting

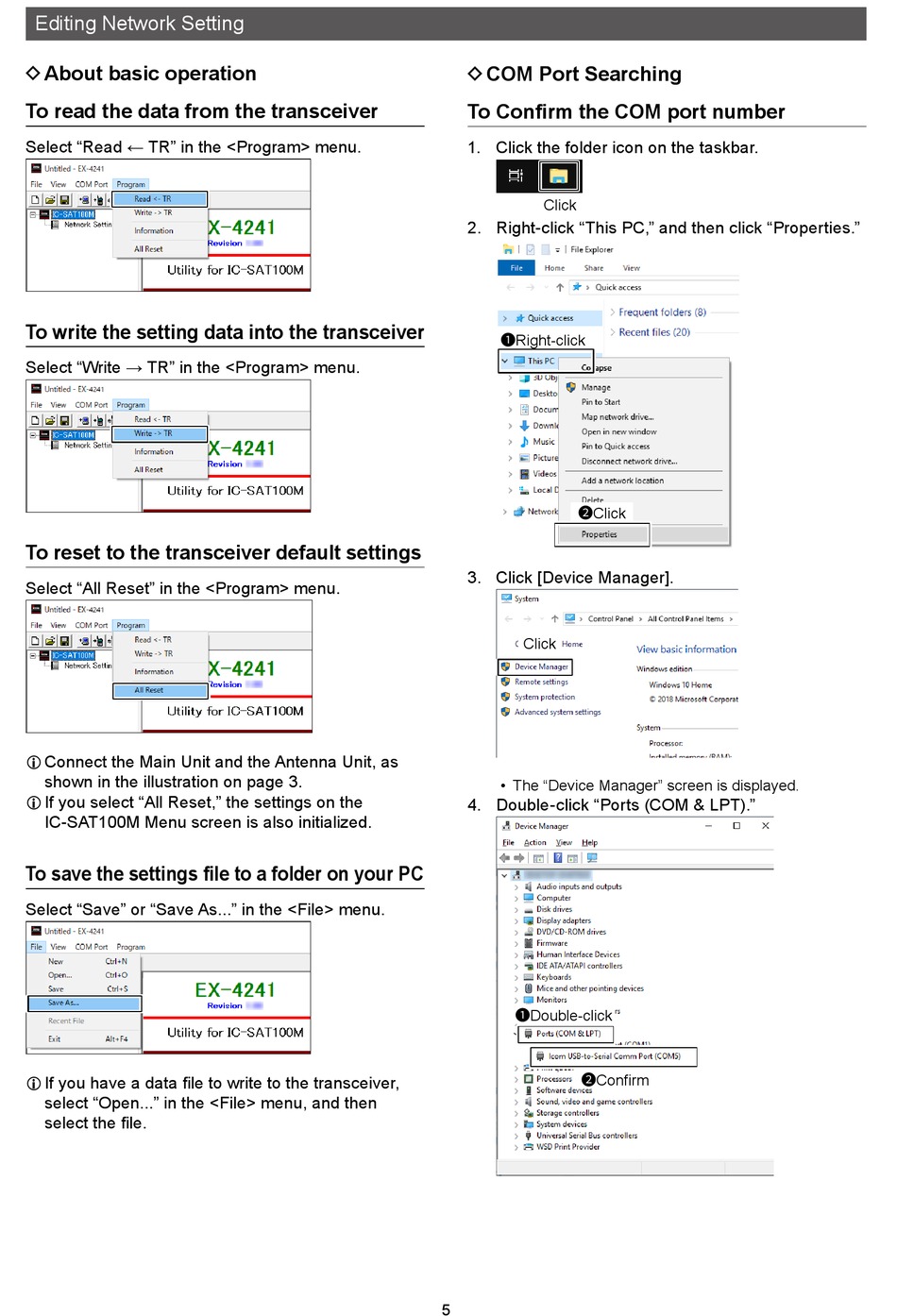

D About basic operation

To read the data from the transceiver

Select "Read ← TR" in the <Program> menu.

To write the setting data into the transceiver

Select "Write → TR" in the <Program> menu.

To reset to the transceiver default settings

Select "All Reset" in the <Program> menu.

L Connect the Main Unit and the Antenna Unit, as

shown in the illustration on page 3.

L If you select "All Reset," the settings on the

IC-SAT100M Menu screen is also initialized.

To save the settings file to a folder on your PC

Select "Save" or "Save As..." in the <File> menu.

L If you have a data file to write to the transceiver,

select "Open..." in the <File> menu, and then

select the file.

To Confirm the COM port number

1. Click the folder icon on the taskbar.

Click

2. Right-click "This PC," and then click "Properties."

1Right-click

2Click

3. Click [Device Manager].

Click

• The "Device Manager" screen is displayed.

4. Double-click "Ports (COM & LPT)."

1Double-click

2Confirm
