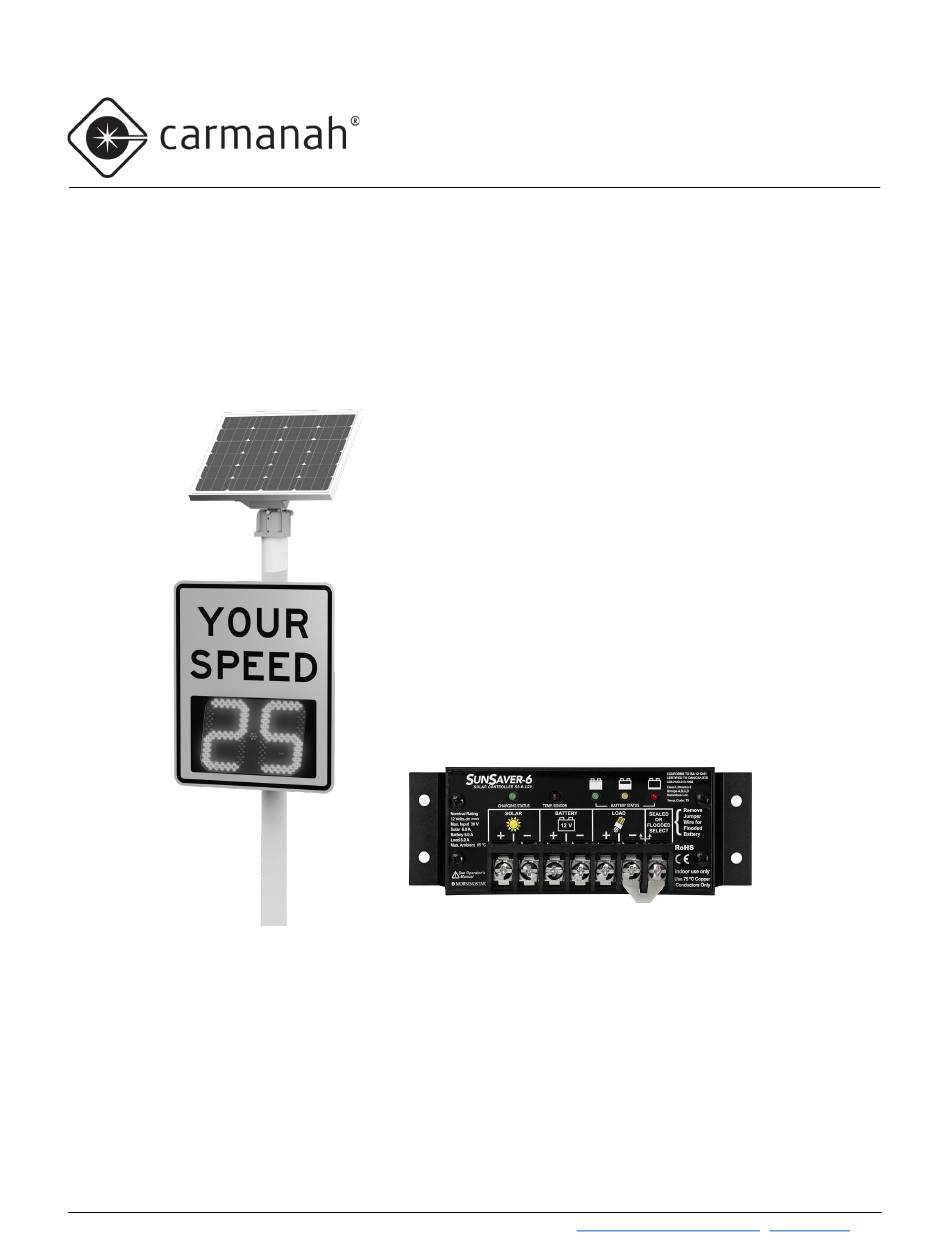

- Page 1 SpeedCheck ® SOLAR CHARGE CONTROLLER REPLACEMENT GUIDE For the solar-powered SPEEDCHECK-12 90065_REPLACEMENT-GUIDE_SPEEDCHECK-12-CC_RevA Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 2: Table Of Contents
Opening Rear Enclosure ..........................6 Removing Solar Panel ..........................7 Removing Solar Charge Controller ......................8 Installing Solar Charge Controller .......................9 Reinstalling Solar Panel........................... 10 System Reassembly ..........................11 Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 3: Warnings And Precautions
Warranty Disclaimer This manual will familiarize you with the features, operation standards and installation of Carmanah’s SPEEDCHECK-12 solar charge controller. Failure to comply with the use, storage, maintenance, installation or placement instructions detailed in this manual could void the warranty. - Page 4 This guide is specific to the SPEEDCHECK-12 replacement solar charge controller installation and is not a replacement for the complete SPEEDCHECK-12 product user manual. Visit support.carmanah.com to download the complete product user manual. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 5: System Components
1. Drill and drill bit set 2. Socket set 3. Crescent wrench 4. Multi-bit screwdriver 5. Rivet installation tool with nosepiece for 3/16” diameter rivet Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 6: Installation
5. Disconnect all 2-pin connections at the display enclosure bracket. 6. Temporarily lock the SPEEDCHECK-12 by pushing the display enclosure against the rear enclosure then PUSH the lock to secure in place. This will secure the system while working on the solar kit. -
Page 7: Removing Solar Panel
1. Locate the top four mounting bolts for the solar panel and remove the top two while leaving the bottom two loose. 2. Disconnect solar panel power harness. 3. Remove the bottom two bolts and set hardware aside and solar panel aside. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 8: Removing Solar Charge Controller
2. Remove the wiring on the Solar and Battery terminals connected to the charge controller. Take note of where the wiring was originally terminated. 3. Disconnect the power harness that goes down to the pole to the SPEEDCHECK-12 display. 4. Drill out the two rivets securing the charger controller and remove the controller from the system. Remove all metal chips from the solar housing. -
Page 9: Installing Solar Charge Controller
4. Reinstall the plastic cover plate and secure with the two previously used screws. 5. Reconnect the power harness that goes down the pole to the SPEEDCHECK-12 display. For systems with StreetHub, you will have an extra yellow wire terminated to Solar+. -
Page 10: Reinstalling Solar Panel
2. Lift other end of solar panel up and connect power harness, ensuring connector is fully engaged. 3. Lower solar panel, taking care not to pinch solar panel harness, and install remaining bolts. Tighten all 4 bolts. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 11: System Reassembly
2. To close, push the display enclosure against the rear enclosure and then apply diagonal pressure in the bottom right corner of the sign face. Once fully closed then PUSH the lock to secure in place. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com... - Page 12 REPLACEMENT GUIDE © 2021 Carmanah Technologies Corporation Technical Support: Email: customersupport@carmanah.com Toll Free: 1.877.722.8877 (US & Canada) Worldwide: 1.250.380.0052 Fax: 1.250.380.0062 Web: carmanah.com Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
