- Page 1 SPEEDCHECK ® SOLAR CHARGE CONTROLLER REPLACEMENT GUIDE For the solar-powered SPEEDCHECK-15/18 radar speed signs 85831_REPLACEMENT_GUIDE_SPEEDCHECK-15_18_CC_REVB1 Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 2: Table Of Contents
2.0 Solar Charge Controller Kit Overview ......................5 3.0 Installation Procedure ............................6 Wiring Overview ............................6 SPEEDCHECK-15/18 ..........................7 4.0 Capacitor Removal .............................8 SPEEDCHECK-15 Capacitor Removal ......................8 SPEEDCHECK-18 Capacitor Removal ......................9 Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 3: Warnings And Precautions
NOTE suggests optimal conditions and provides additional information. Warranty Disclaimer This guide will familiarize you with the installation of Carmanah's replacement SpeedCheck charge controller kit. Failure to comply with the use, storage, maintenance, installation or placement instructions detailed in this guide could void the warranty. - Page 4 Changes or modifications to Carmanah equipment not expressly approved by Carmanah could void both the user's authority to operate the equipment and the warranty. This guide is specific to the SpeedCheck charge controller installation and is not a replacement for the complete SPEEDCHECK-15/18 product user manual.
-

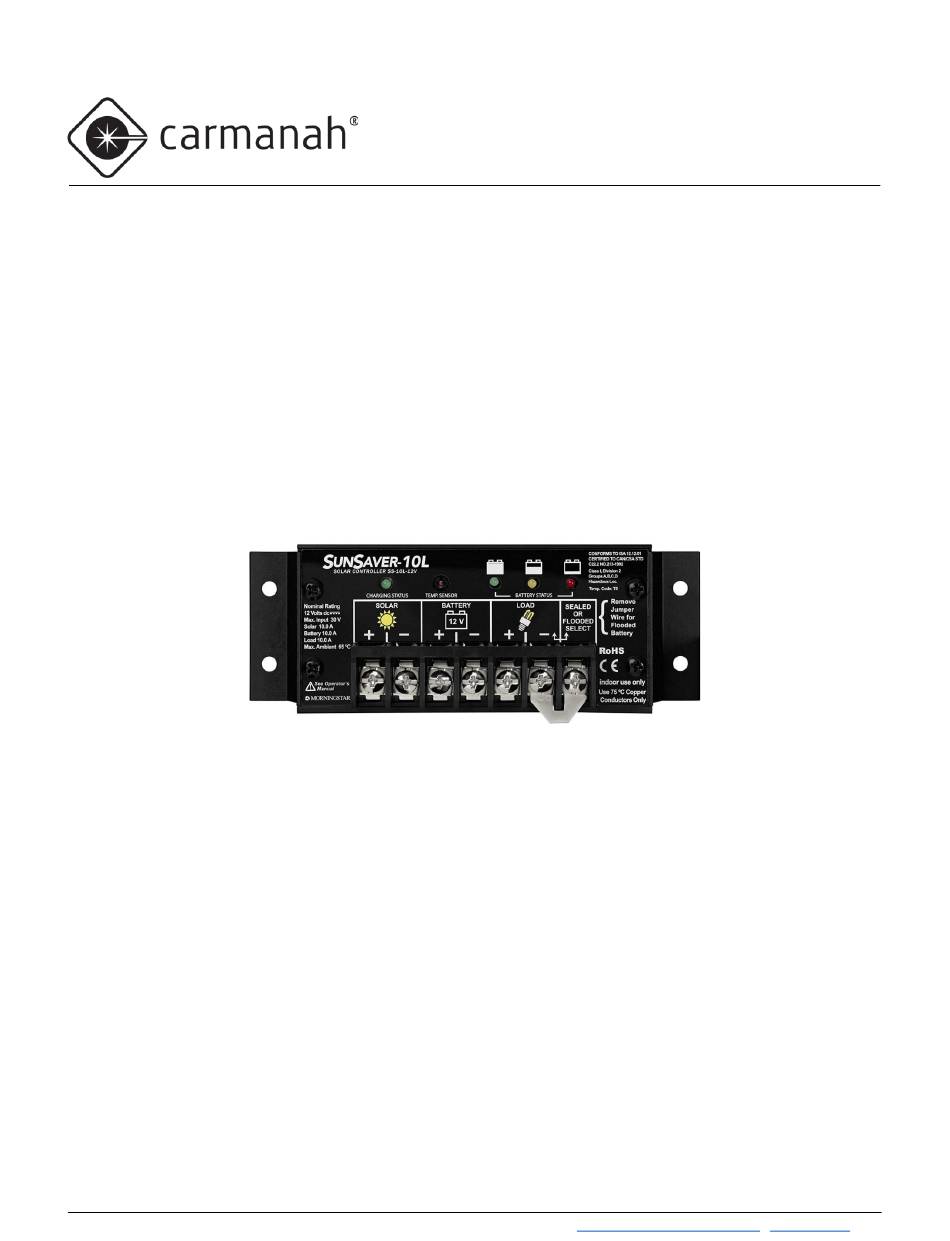

Page 5: Solar Charge Controller Kit Overview
This would replace a legacy charge controller by ASC. 2. All six mounting screws only required when using the retrofit mounting bracket. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com... -
Page 6: Installation Procedure
Refer to Section 4 to confirm if your system contains a large capacitor that needs to be removed. The images in this guide may differ from your SpeedCheck radar speed sign. They are for illustrative purposes only. Wiring Overview Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com... -
Page 7: Speedcheck-15/18
SOLAR CHARGE CONTROLLER REPLACEMENT GUIDE SPEEDCHECK-15/18 1. Disconnect power to the SPEEDCHECK-15/18 sign by removing the fuse(s) in the associated battery cabinet. 2. Disconnect the wiring and remove the existing charge controller from the battery cabinet. Remove the solar panel wires last and cap off temporarily with wire nuts. -
Page 8: Capacitor Removal
1. Remove the capacitor wires from the terminal blocks. Cap off each wire one at a time with wire nuts after they are removed. 2. Remove the nyloc nut and fully remove the capacitor from the system. 3. Close all fuse blocks and ensure battery voltage is passing through to the SpeedCheck control board inside the SPEEDCHECK-15. 4. Reassemble system. -
Page 9: Speedcheck-18 Capacitor Removal
6. Reassemble system. Cut wires here and splice the two Capacitor Cut cable tie and positive (red) and negative (black) remove capacitor wires together respectively Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... - Page 10 REPLACEMENT GUIDE © 2021 Carmanah Technologies Corporation Technical Support: Email: customersupport@carmanah.com Toll Free: 1.877.722.8877 (US & Canada) Worldwide: 1.250.380.0052 Fax: 1.250.380.0062 Web: carmanah.com Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
