10 M I C R O G U A R D ™ S O L U T I O N | M I C R O G U A R D | U M/ M I C R O G U A R D - E N R E V. B
. . .3 System Hardware

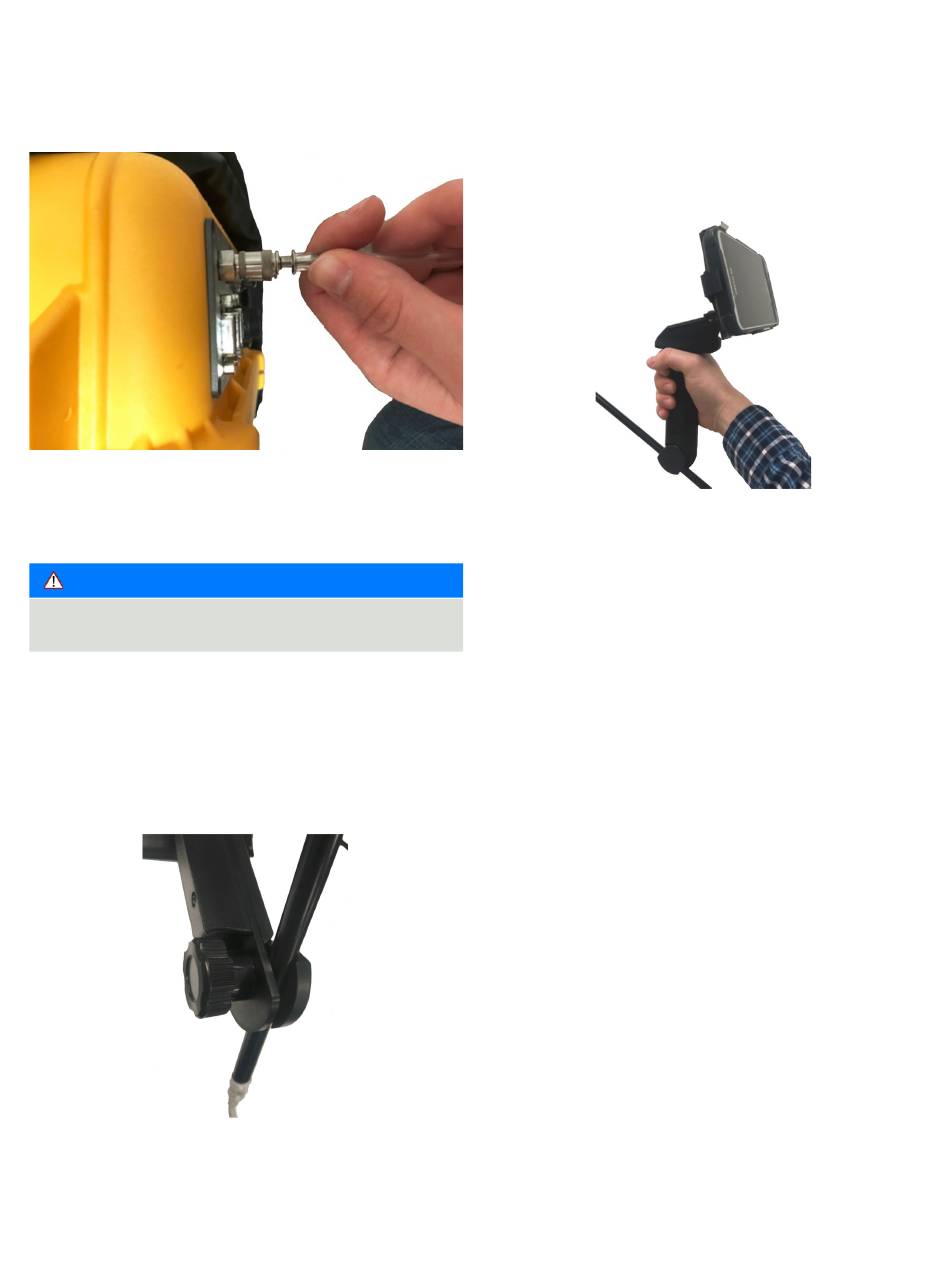

Figure 14 Insert Inlet Tubing in Port
5 Turn on the analyzer .
6 Put on the backpack .
NOTE
If the backpack does not fit, adjust the backpack shoulder
straps so that the backpack fits properly .
7 Take the end of the wand (the other end has been attached
to the inlet of the analyzer) and secure it into the handle with
the screw . Unscrew the clip at the bottom of the handle to
loosen the clip .
The clip does not have to be unscrewed all the way .
Figure 15 Secure Wand in Handle
8 Once loose, insert the wand and screw the clip until the
handle sits firmly .
Figure 16 Secure handle
You are now ready to begin using the MicroGuard™ mobile
application on the NX6 .

Analyzer Power-On

Turn on the analyzer . Refer to GLA131 Series Microportable user
manual, document #3KXG167001R4601 .
