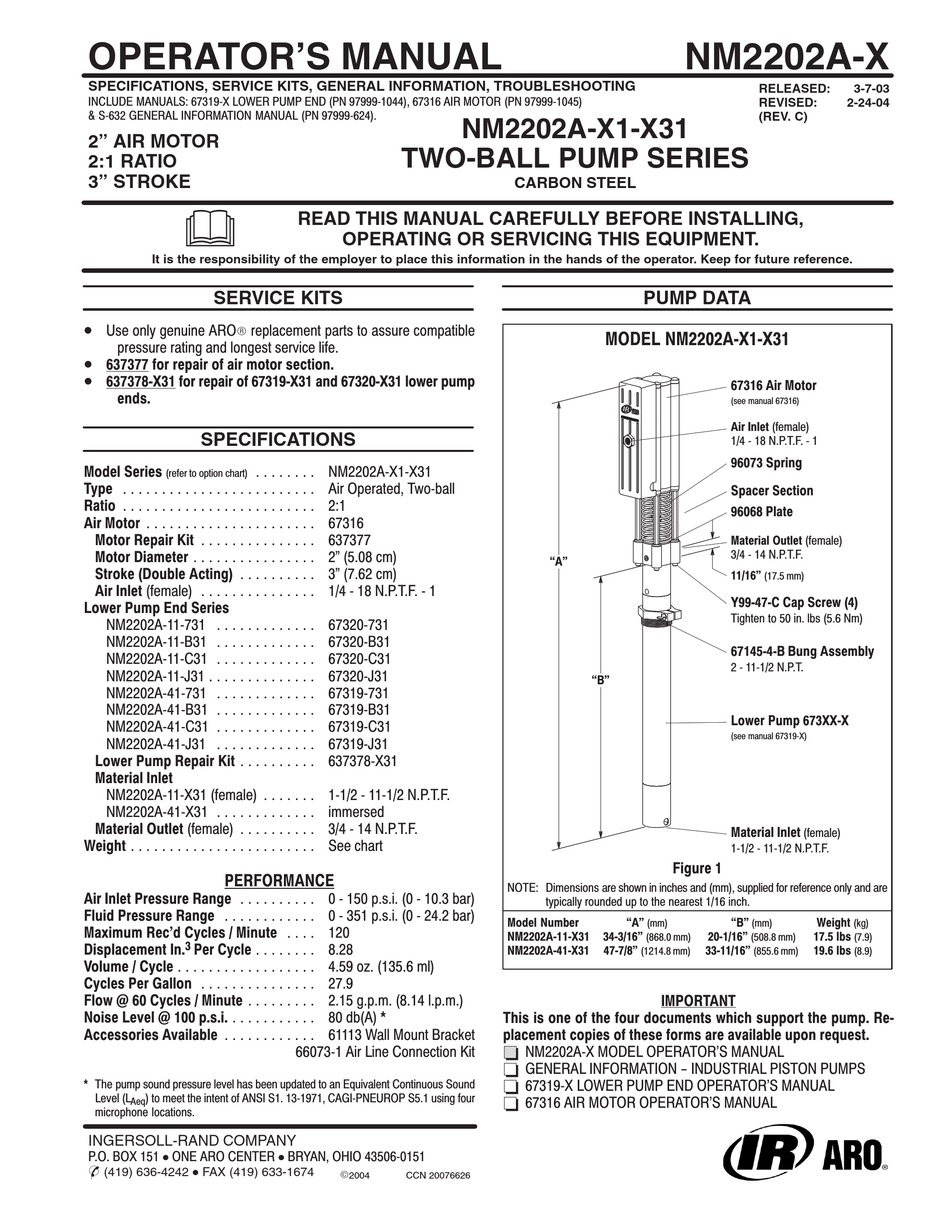

OPERATOR'S MANUAL
SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, TROUBLESHOOTING
INCLUDE MANUALS: 67319 X LOWER PUMP END (PN 97999 1044), 67316 AIR MOTOR (PN 97999 1045)
& S 632 GENERAL INFORMATION MANUAL (PN 97999 624).
2" AIR MOTOR
2:1 RATIO
3" STROKE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
•
Use only genuine ARO replacement parts to assure compatible
R
pressure rating and longest service life.
•
637377 for repair of air motor section.
•
637378 X31 for repair of 67319 X31 and 67320 X31 lower pump
ends.
SPECIFICATIONS
Model Series . . . . . . . .
(refer to option chart)
Type . . . . . . . . . . . . . . . . . . . . . . . . .
Ratio . . . . . . . . . . . . . . . . . . . . . . . . .
Air Motor . . . . . . . . . . . . . . . . . . . . . .
Motor Repair Kit . . . . . . . . . . . . . . .
Motor Diameter . . . . . . . . . . . . . . . .
Stroke (Double Acting) . . . . . . . . . .
Air Inlet (female) . . . . . . . . . . . . . . .
Lower Pump End Series
NM2202A 11 731 . . . . . . . . . . . . .
NM2202A 11 B31 . . . . . . . . . . . . .
NM2202A 11 C31 . . . . . . . . . . . . .
NM2202A 11 J31 . . . . . . . . . . . . . .
NM2202A 41 731 . . . . . . . . . . . . .
NM2202A 41 B31 . . . . . . . . . . . . .
NM2202A 41 C31 . . . . . . . . . . . . .
NM2202A 41 J31 . . . . . . . . . . . . .
Lower Pump Repair Kit . . . . . . . . . .
Material Inlet
NM2202A 11 X31 (female)
NM2202A 41 X31 . . . . . . . . . . . . .
Material Outlet (female) . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . . .
PERFORMANCE
Air Inlet Pressure Range . . . . . . . . . .
Fluid Pressure Range . . . . . . . . . . . .
Maximum Rec'd Cycles / Minute
3
Displacement In. Per Cycle . . . . . . . .
Volume / Cycle . . . . . . . . . . . . . . . . . .
Cycles Per Gallon . . . . . . . . . . . . . . .
Flow @ 60 Cycles / Minute . . . . . . . . .
Noise Level @ 100 p.s.i. . . . . . . . . . . .
Accessories Available . . . . . . . . . . . .
* The pump sound pressure level has been updated to an Equivalent Continuous Sound
Level (L ) to meet the intent of ANSI S1. 13 1971, CAGI PNEUROP S5.1 using four
Aeq
microphone locations.
INGERSOLL-RAND COMPANY
P.O. BOX 151 ONE ARO CENTER
D
&
D
(419) 636-4242 FAX (419) 633-1674
TWO-BALL PUMP SERIES
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
NM2202A X1 X31
Air Operated, Two ball
2:1
67316
637377
2" (5.08 cm)
3" (7.62 cm)
1/4 18 N.P.T.F. 1
67320 731
67320 B31
67320 C31
67320 J31
67319 731
67319 B31
67319 C31
67319 J31
637378 X31
. . . . . . . 1 1/2 11 1/2 N.P.T.F.
immersed
3/4 14 N.P.T.F.
See chart
0 150 p.s.i. (0 10.3 bar)
0 351 p.s.i. (0 24.2 bar)
. . . . 120
8.28
4.59 oz. (135.6 ml)
27.9
2.15 g.p.m. (8.14 l.p.m.)
80 db(A) *
61113 Wall Mount Bracket
66073 1 Air Line Connection Kit
BRYAN, OHIO 43506 0151
D
E
2004 CCN 20076626
NM2202A-X1-X31
CARBON STEEL
MODEL NM2202A X1 X31
A"
B"
NOTE: Dimensions are shown in inches and (mm), supplied for reference only and are
typically rounded up to the nearest 1/16 inch.
Model Number A"
NM2202A 11 X31 34 3/16"
NM2202A 41 X31 47 7/8"
(1214.8 mm)
This is one of the four documents which support the pump. Re
placement copies of these forms are available upon request.
= NM2202A X MODEL OPERATOR'S MANUAL
- GENERAL INFORMATION - INDUSTRIAL PISTON PUMPS
- 67319 X LOWER PUMP END OPERATOR'S MANUAL
- 67316 AIR MOTOR OPERATOR'S MANUAL
NM2202A-X
RELEASED:
REVISED:
(REV. C)
PUMP DATA
67316 Air Motor
(see manual 67316)
Air Inlet (female)
1/4 18 N.P.T.F. 1
96073 Spring
Spacer Section
96068 Plate
Material Outlet (female)
3/4 14 N.P.T.F.
11/16"
(17.5 mm)
Y99 47 C Cap Screw (4)
Tighten to 50 in. lbs (5.6 Nm)
67145 4 B Bung Assembly
2 11 1/2 N.P.T.
Lower Pump 673XX X
(see manual 67319 X)
Material Inlet
(female)
1 1/2 11 1/2 N.P.T.F.
Figure 1
B" Weight
(mm) (mm)
20 1/16" 17.5 lbs
(868.0 mm) (508.8 mm)
33 11/16" 19.6 lbs
(855.6 mm)
IMPORTANT
3-7-03
2-24-04
(kg)
(7.9)
(8.9)
