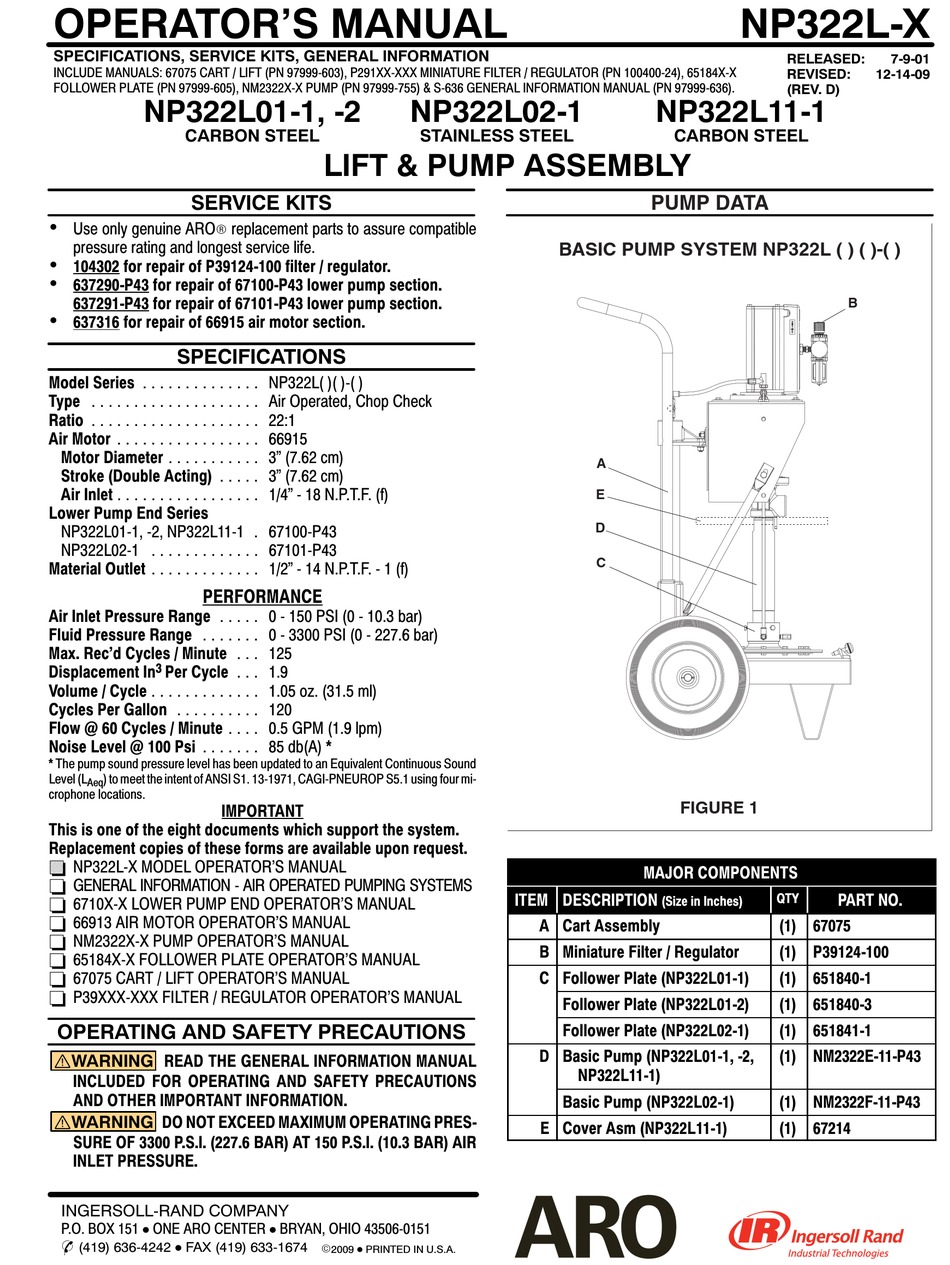

OPERATOR'S MANUAL
SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION
INCLUDE MANUALS: 67075 CART / LIFT (PN 97999-603), P291XX-XXX MINIATURE FILTER / REGULATOR (PN 100400-24), 65184X-X
FOLLOWER PLATE (PN 97999-605), NM2322X-X PUMP (PN 97999-755) & S-636 GENERAL INFORMATION MANUAL (PN 97999-636).
NP322L01-1, -2
CARBON STEEL
SERVICE KITS
•
Use only genuine ARO R
pressure rating and longest service life.
•
104302 for repair of P39124-100 filter / regulator.
•
637290-P43 for repair of 67100-P43 lower pump section.
637291-P43 for repair of 67101-P43 lower pump section.
•
637316 for repair of 66915 air motor section.

SPECIFICATIONS

Model Series . . . . . . . . . . . . . .
Type . . . . . . . . . . . . . . . . . . . .
Ratio . . . . . . . . . . . . . . . . . . . .
Air Motor . . . . . . . . . . . . . . . . .
Motor Diameter . . . . . . . . . . .
Stroke (Double Acting) . . . . .
Air Inlet . . . . . . . . . . . . . . . . .
Lower Pump End Series
NP322L01-1, -2, NP322L11-1
NP322L02-1 . . . . . . . . . . . . .
Material Outlet . . . . . . . . . . . . .
PERFORMANCE
Air Inlet Pressure Range . . . . .
Fluid Pressure Range . . . . . . .
Max. Rec'd Cycles / Minute
3
Displacement In Per Cycle
Volume / Cycle . . . . . . . . . . . . .
Cycles Per Gallon . . . . . . . . . .
Flow @ 60 Cycles / Minute . . . .
Noise Level @ 100 Psi . . . . . . .
* The pump sound pressure level has been updated to an Equivalent Continuous Sound
Level (L ) to meet the intent of ANSI S1. 13-1971, CAGI-PNEUROP S5.1 using four mi-
Aeq
crophone locations.
IMPORTANT
This is one of the eight documents which support the system.
Replacement copies of these forms are available upon request.
= NP322L-X MODEL OPERATOR'S MANUAL
- GENERAL INFORMATION - AIR OPERATED PUMPING SYSTEMS
- 6710X-X LOWER PUMP END OPERATOR'S MANUAL
- 66913 AIR MOTOR OPERATOR'S MANUAL
- NM2322X-X PUMP OPERATOR'S MANUAL
- 65184X-X FOLLOWER PLATE OPERATOR'S MANUAL
- 67075 CART / LIFT OPERATOR'S MANUAL
- P39XXX-XXX FILTER / REGULATOR OPERATOR'S MANUAL

OPERATING AND SAFETY PRECAUTIONS

WARNING READ THE GENERAL INFORMATION MANUAL
INCLUDED FOR OPERATING AND SAFETY PRECAUTIONS
AND OTHER IMPORTANT INFORMATION.
WARNING DO NOT EXCEED MAXIMUM OPERATING PRES-
SURE OF 3300 P.S.I. (227.6 BAR) AT 150 P.S.I. (10.3 BAR) AIR
INLET PRESSURE.
INGERSOLL-RAND COMPANY
P.O. BOX 151 ONE ARO CENTER
D
¥
(419) 636-4242 FAX (419) 633-1674
D
NP322L02-1
LIFT & PUMP ASSEMBLY
replacement parts to assure compatible
NP322L( )( )-( )
Air Operated, Chop Check
22:1
66915
3" (7.62 cm)
3" (7.62 cm)
1/4" - 18 N.P.T.F. (f)
. 67100-P43
67101-P43
1/2" - 14 N.P.T.F. - 1 (f)
0 - 150 PSI (0 - 10.3 bar)
0 - 3300 PSI (0 - 227.6 bar)
. . . 125
. . . 1.9
1.05 oz. (31.5 ml)
120
0.5 GPM (1.9 lpm)
85 db(A) *
BRYAN, OHIO 43506-0151
D
E
2009 D PRINTED IN U.S.A.
STAINLESS STEEL
BASIC PUMP SYSTEM NP322L ( ) ( )-( )
A
E
D
C
ITEM DESCRIPTION
A Cart Assembly
B Miniature Filter / Regulator
C Follower Plate (NP322L01-1)
Follower Plate (NP322L01-2)
Follower Plate (NP322L02-1)
D Basic Pump (NP322L01-1, -2,
NP322L11-1)
Basic Pump (NP322L02-1)
E Cover Asm (NP322L11-1)
NP322L-X
RELEASED:
REVISED:
(REV. D)
NP322L11-1
CARBON STEEL
PUMP DATA
FIGURE 1

MAJOR COMPONENTS

QTY
(Size in Inches)
(1) 67075
(1) P39124-100
(1) 651840-1
(1) 651840-3
(1) 651841-1
(1) NM2322E-11-P43
(1) NM2322F-11-P43
(1) 67214
7-9-01
12-14-09
B
PART NO.
