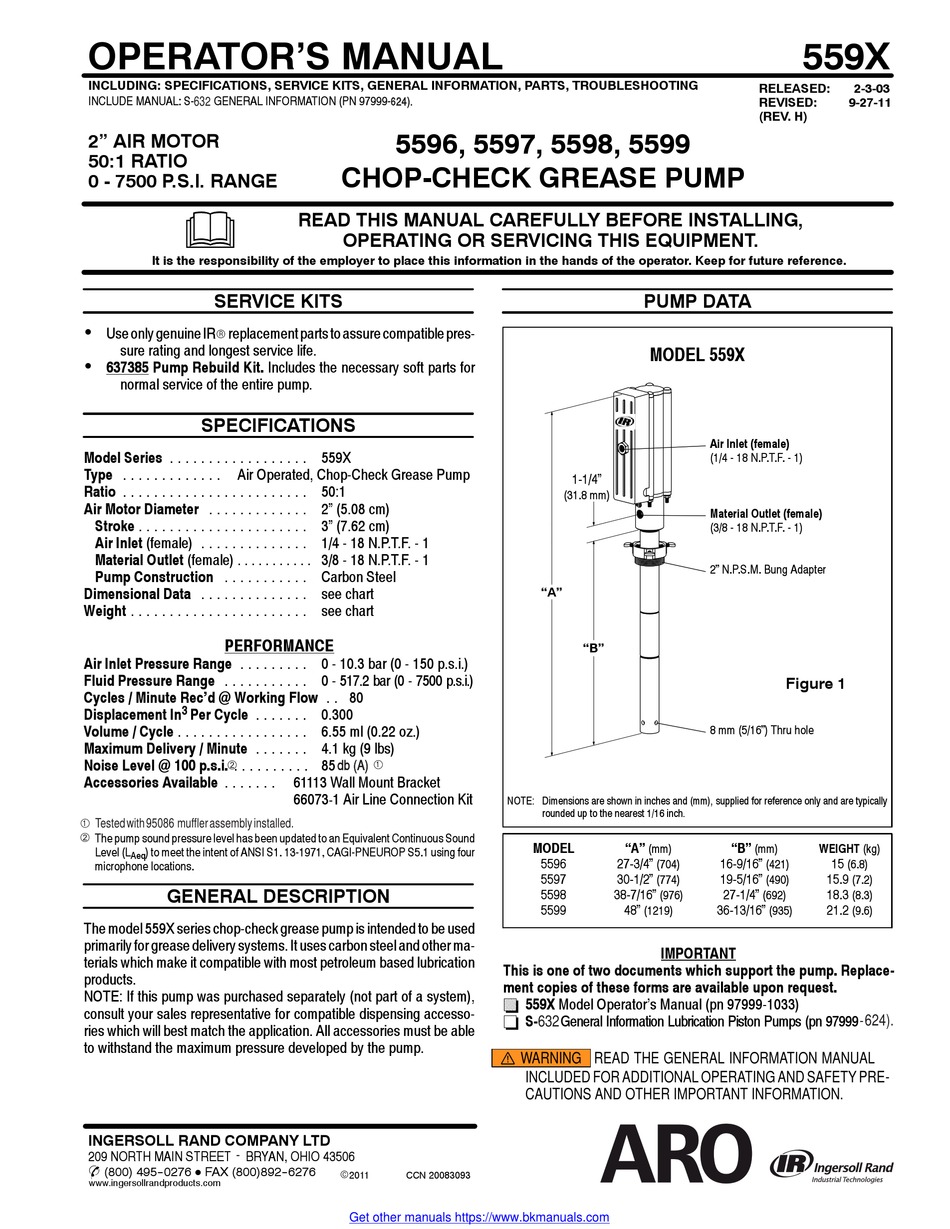

Ingersoll-Rand 559 Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, PARTS, TROUBLESHOOTING
INCLUDE MANUAL: S- GENERAL INFORMATION (PN 97999-
632
2" AIR MOTOR
50:1 RATIO
0 - 7500 P.S.I. RANGE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

SERVICE KITS

• Use only genuine IR replacement parts to assure compatible pres-
R
sure rating and longest service life.
• 637385 Pump Rebuild Kit. Includes the necessary soft parts for
normal service of the entire pump.

SPECIFICATIONS

Model Series . . . . . . . . . . . . . . . . . .
Type . . . . . . . . . . . . . Air Operated, Chop-Check Grease Pump
Ratio . . . . . . . . . . . . . . . . . . . . . . . .
Air Motor Diameter . . . . . . . . . . . . .
Stroke . . . . . . . . . . . . . . . . . . . . . .
Air Inlet (female) . . . . . . . . . . . . . .
Material Outlet (female)
. . . . . . . . . . .
Pump Construction . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . .
PERFORMANCE
Air Inlet Pressure Range . . . . . . . . .
. . . . . . . . . . .
Fluid Pressure Range
Cycles / Minute Rec'd @ Working Flow
3
. . . . . . .
Displacement In Per Cycle
. . . . . . . . . . . . . . . . .
Volume / Cycle
. . . . . . .
Maximum Delivery / Minute
. . . . . . . . . .
Noise Level @ 100 p.s.i.
. . . . . . .
Accessories Available
Tested with 95086 muffler assembly installed.
1
The pump sound pressure level has been updated to an Equivalent Continuous Sound
Level (L ) to meet the intent of ANSI S1. 13-1971, CAGI-PNEUROP S5.1 using four
Aeq
microphone locations.

GENERAL DESCRIPTION

The model 559X series chop-check grease pump is intended to be used
primarily for grease delivery systems. It uses carbon steel and other ma-
terials which make it compatible with most petroleum based lubrication
products.
NOTE: If this pump was purchased separately (not part of a system),
consult your sales representative for compatible dispensing accesso-
ries which will best match the application. All accessories must be able
to withstand the maximum pressure developed by the pump.
INGERSOLL RAND COMPANY LTD
-
209 NORTH MAIN STREET BRYAN, OHIO 43506
(800) 495--0276 FAX (800)892--6276
D
www.ingersollrandproducts.com
624).
5596, 5597, 5598, 5599
CHOP-CHECK GREASE PUMP
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
559X
50:1
2" (5.08 cm)
3" (7.62 cm)
1/4 - 18 N.P.T.F. - 1
3/8 - 18 N.P.T.F. - 1
Carbon Steel
see chart
see chart
0 - 10.3 bar (0 - 150 p.s.i.)
0 - 517.2 bar (0 - 7500 p.s.i.)
. . 80
0.300
6.55 ml (0.22 oz.)
4.1 kg (9 lbs)
85
db (A)
1
61113 Wall Mount Bracket
66073 1 Air Line Connection Kit
-
E 2011 CCN 20083093
Get other manuals https://www.bkmanuals.com

PUMP DATA

MODEL 559X
1-1/4"
(31.8 mm)
"A"
"B"
NOTE: Dimensions are shown in inches and (mm), supplied for reference only and are typically
rounded up to the nearest 1/16 inch.
MODEL "A"
(mm)
5596 27-3/4"
(704)
5597 30-1/2"
(774)
5598 38-7/16"
(976)
5599 48"
(1219)
IMPORTANT
This is one of two documents which support the pump. Replace-
ment copies of these forms are available upon request.
= 559X Model Operator's Manual (pn 97999-1033)
- S- General Information Lubrication Piston Pumps (pn 97999
632
WARNING READ THE GENERAL INFORMATION MANUAL
INCLUDED FOR ADDITIONAL OPERATING AND SAFETY PRE-
CAUTIONS AND OTHER IMPORTANT INFORMATION.
559X
RELEASED: 2-3-03
REVISED: 9-27-11
(REV. H)
Air Inlet (female)
(1/4 - 18 N.P.T.F. - 1)
Material Outlet (female)
(3/8 - 18 N.P.T.F. - 1)
2" N.P.S.M. Bung Adapter
Figure 1
8 mm (5/16") Thru hole
"B"
(mm) WEIGHT (kg)
16-9/16" 15
(421) (6.8)
19-5/16" 15.9
(490) (7.2)
27-1/4" 18.3
(692) (8.3)
36-13/16" 21.2
(935) (9.6)
