Summary of Contents for EK-Quantum Impulse 120mm FAN

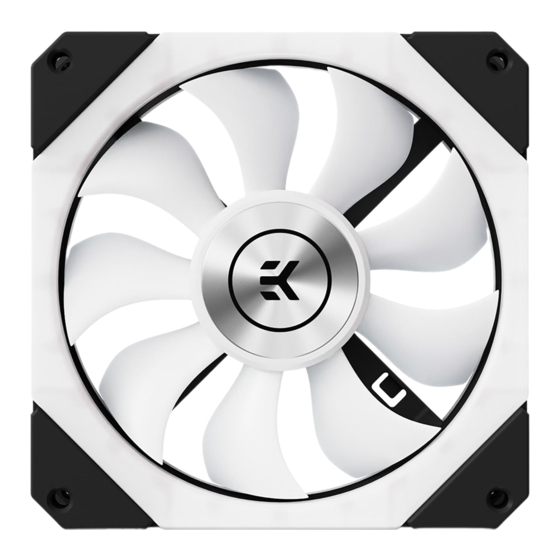

- Page 1 EK-Quantum Impulse 120mm FAN USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS TECHNICAL SPECIFICATIONS AND DIMENSIONS INSTALLING THE FAN DIRECTLY INSTALLING THE FAN ON THE RADIATOR EK-QUANTUM SURFACE RADIATOR CONNECTING THE FANS BASIC INFORMATION’S SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Extension cable (1 pc) FAN Self tapping screw (4 pcs) EK-Quantum Impulse 120mm FAN TECHNICAL SPECIFICATIONS AND DIMENSIONS Technical Specification: 29 mm 119.5 mm - Max Air Flow: 57.5CFM = 97.8m3/h 26 mm 105 mm - Static Pressure: 1.94mm-H2O - Noise Level: 24.3dBA (max. -
Page 5: Installing The Fan Directly
SCREW STEP 1 INSTALLING THE FAN ON THE RADIATOR EK-QUANTUM SURFACE RADIATOR In the case of using the EK-Quantum Surface radiators, it is M4 x 30 PHILLIPS recommended to select the M4 x 30 Screws (enclosed with the HEAD SCREW radiator) to secure the fans. -
Page 6: Connecting The Fans
CONNECTING THE FANS BASIC INFORMATION’S FEMALE CONNECTOR D-RGB CONNECTOR CONNECTOR MALE CONNECTOR FEMALE CONNECTOR - 6 -... - Page 7 STEP 1 Connect the female connector from the extension cable to the MALE CONNECTOR male connector from the fan. FEMALE CONNECTOR Make sure to turn the Female connector correctly. STEP 1 - 7 -...
- Page 8 STEP 1 *In case of using multiple fan-s, connect fan-s in series with the “daisy-chain”. Make sure to turn the female connector correctly. MALE CONNECTOR FEMALE CONNECTOR STEP 1 STEP 2 After connecting the extension cable with the fan, connect the 4-pin fan connector from the extension cable directly to the CPU FAN CONNECTOR fan header on the motherboard.
- Page 9 STEP 3 Plug the 3-pin D-RGB connector from the extension cable into the D-RGB header on the motherboard. Please ensure that the arrow indicated on the connector is plugged into the +5V line as indicated on your motherboard. D-RGB HEADER If you put LED Diode to the 12V RGB HEADER you can damage the LEDs.
-
Page 10: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
