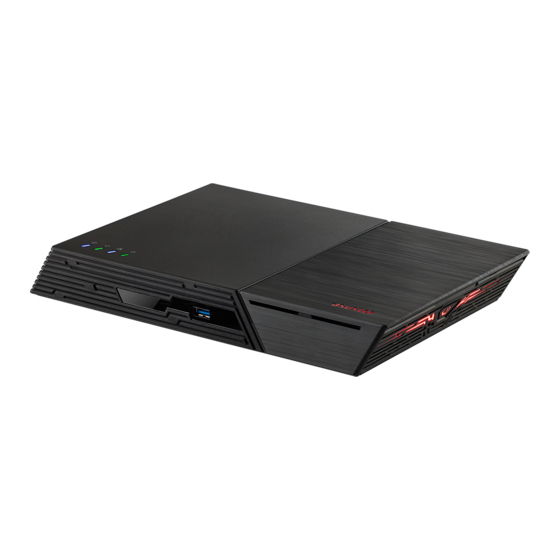

- Page 1 Quick Installation Guide Applicable Models FS6706T / FS6712X Ver. 4.2.0307(2023-3-7) Ver.2.3.0903 (2015-3-2)
-
Page 2: Table Of Contents
Table of Contents Notices ..............................3 Safety Precautions ........................... 4 1. Package Contents ..........................5 2. Optional Accessories ........................... 6 3. Hardware Installation Guide ....................... 7 Tools Required for M.2 SSD Installation ....................7 Installing M.2 SSDs ..........................7 Securing the Power Cord ........................11 Connecting and Powering on the NAS .................... -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. -
Page 4: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating. -
Page 5: Package Contents
1. Package Contents Applicable Models : FS6706T, FS6712X FS6706T FS6712X Model Name Power Cord Adapter RJ45 Network Cable Power Cord Tie Quick Installation Guide... -
Page 6: Optional Accessories
2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. -
Page 7: Hardware Installation Guide
At least one 2280 NVMe M.2 SSD. For a list of compatible M.2 SSDs, click here. Installing M.2 SSDs Installing SSDs in Slots 1-6 – FS6706T and FS6712X 1. Installed M.2 slots SSDs are numbered sequentially. 2. Use a Phillips screwdriver to remove the screws on the bottom cover. - Page 8 3. Slide the cover away from the NAS and lift upon release. 4. Align M-key M.2 SSD with the M-key notch of the slot and insert at a 45° angle. 5. Once inserted, push the SSD down so that it is flush with the motherboard while pushing SSD locking lever open to secure the SSD.
- Page 9 6. Return cover back to its original position by sliding it towards the NAS. 7. Use a Phillips screwdriver to restore screws. Installing SSDs into Slots 7-12 – FS6712X Only 1. M.2 slots for NVMe SSDs are numbered sequentially from 1 to 12 as shown below. These instructions...
- Page 10 2. Use a Phillips screwdriver to remove the screws of the top cover. 3. Please remove the cover in the direction of the arrow. 4. Align M-key M.2 SSD with the M-key notch of the slot and insert at a 45° angle. 5.
-
Page 11: Securing The Power Cord
6. Return cover back to its original position by sliding it towards the NAS. 7. Use a Phillips screwdriver to tighten the screws for the top cover. Securing the Power Cord Note: You can use the provided cord bracket to secure the power cord in place, if you are concerned about the NAS power cord becoming detached when the NAS is moved. -
Page 12: Connecting And Powering On The Nas
3. Fasten cable tie onto AC adapter cord. 4. Tighten buckle in the direction of the arrow. Connecting and Powering on the NAS Connect the NAS to its power supply. Connect the NAS to your router, switch or hub using an Ethernet cable. Press the power button on the right. -
Page 13: Upgrading System Memory
Your NAS and memory modules use high precision components and electronic connector technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: ✓ Memory for FS67 series devices may be purchased from local dealers or the online ASUSTOR Accessories Store (http://shop.asustor.com). - Page 14 Removing the Cover 1. Shutdown the NAS by selecting [Shut down] from the ADM User Menu. 2. Disconnect all cables and devices connected to the NAS including the power cord. FS6706T FS6712X...
- Page 15 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration. FS6706T FS6712X 4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis.
- Page 16 2. Gently push the DIMM down until both latches click into place. RAM should be flush with the motherboard. Replacing the Cover 1. Replace the cover and tighten the three screws that were removed previously. FS6706T FS6712X 2. Reconnect all cables including the power cord and then start up the NAS.
-
Page 17: Software Installation Guide
4. Software Installation Guide There are 3 different installation methods that you can choose from. You can go to the download section of the ASUSTOR website (http://www.asustor.com/service/downloads) to download the latest software. Download Center Installation Windows Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS... - Page 18 Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process. Mac Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices.
-
Page 19: Web Installation
Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process. Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. -
Page 20: Installation Using A Mobile Device
Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. Make sure that your mobile device is connected to the same local network that your NAS is connected to. Next, open AiMaster and then select the icon from the toolbar at the top of the screen. - Page 21 Select [Auto Discovery]. AiMaster will now scan the local network for your NAS. Select your NAS from the list that appears.
- Page 22 Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process.
-
Page 23: Appendix
LED night mode seconds System Flashing Powering on Status Green Steadily lit System ready FS6706T: 1G/100M Network port connected Blue Steadily lit FS6712X: 5G/2.5G/1G/100M Network port connected Network FS6706T: 2.5G Network port connected purple Steadily lit FS6712X: 10G Network port connected... -
Page 24: Rear Panel
Flashes every 10 Hibernation mode seconds Steadily lit Hard disk abnormality The F6712X does not support S3 sleep. Rear Panel FS6706T DC Input K-Lock HDMI Port S/PDIF USB 3.2 Gen 2 Port USB 2.0 Ports Power cord cable tie socket Reset Button 2.5G RJ45 Ports... -
Page 25: (Optional Step) Installing M.2 Ssd Heatsinks (Sold Separately)
(Optional Step) Installing M.2 SSD Heatsinks (Sold Separately) The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. 1. After installing M.2 drives, remove protective film from heatsink and align the M.2 heatsink with the screw holes on the motherboard and fasten the screws. -
Page 26: Shutting Down Your Nas
2. Up to three heatsinks can be installed per side. FS6706T FS6712X Shutting Down Your NAS 1. Confirm the function settings for the power button as shown in the graphic below. When the power button is held down for 1.5 seconds you can decide whether to shut down the NAS or have it entered into sleep mode. This setting may be access from within ADM by selecting: [Settings]→[Hardware] →... -
Page 27: Troubleshooting
Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network. - Page 28 Click on [Change adapter settings] in the left hand panel. Right-click on [Local Area Connection] and select [Properties].
- Page 29 Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties]. Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.10 and the [Subnet mask] to 255.255.0.0 and then click on [OK].
- Page 30 Open up ASUSTOR Control Center to scan for your NAS. 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer ASUSTOR Customer Service. You are also encouraged to browse through the ASUSTOR Knowledgebase.
