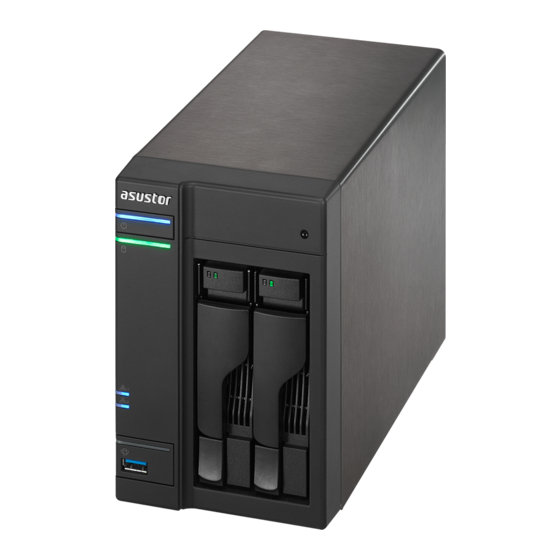

- Page 1 Quick Installation Guide Applicable Models AS6302T/AS6404T Ver.2.3.0903 (2015-3-2) Ver.3.0.0731(2017-7-31)
-
Page 2: Table Of Contents
Table of Contents Notices ............................ 3 Safety Precautions ........................4 1. Package Contents ......................5 2. Optional Accessories ......................7 3. Hardware Installation Guide ....................8 Tools Needed for Hard Disk Installation ................8 Hard Disk Installation ......................8 Securing the Power Cord....................10 Connecting and Powering on the NAS ................ -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating. -
Page 5: Package Contents
1. Package Contents Applicable Models: AS6302T, AS6404T Model Name AS6302T AS6404T Power Cord Adapter RJ45 Network Cable Power Cord Bracket Screws for use with 3.5” HDD Screws for use with 2.5” HDD Installation CD... - Page 6 Quick Start Guide...
-
Page 7: Optional Accessories
2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. -
Page 8: Hardware Installation Guide
At least one 2.5 or 3.5 inch SATA hard disk. (For a list of compatible hard disks, please see http://www.asustor.com/service/hd?id=hd) Hard Disk Installation 1. Press the button on the lower portion of the hard disk tray to release the latch. - Page 9 2.5-inch hard disks and SSD hard disks: Place the hard disk into the area of the disk tray outlined in red (see picture below). Make sure that the mounting holes on the bottom of the hard disk and disk tray are lined up.
-
Page 10: Securing The Power Cord
NAS power cord becoming detached when the NAS is moved. 1. Take the cord bracket out of the accessories box. 2. Attach the bracket to the power cord as shown in the graphic below. 3. Remove the fan screw by unscrewing it counter-clockwise. AS6302T AS6404T... -
Page 11: Connecting And Powering On The Nas
4. Position the bracket over the hole for the removed fan screw. Secure the bracket in place by replacing the fan screw. AS6302T AS6404T Connecting and Powering on the NAS Connect the NAS to its power supply. Connect the NAS to your router, switch or hub using an Ethernet cable. -
Page 12: Upgrading System Memory
Your NAS and memory modules use high precision components and electronic connector technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: Memory for AS63 and AS64 series devices may be purchased from local dealers or the online ASUSTOR Accessories Store (http://shop.asustor.com). - Page 13 ASUSTOR does not guarantee that third party memory modules will work in your NAS. Be sure to turn off your NAS and peripherals and disconnect all attachments and connection cables before adding or removing memory modules. To prevent damage from electrostatic discharge to memory modules, follow the instructions below: ...
- Page 14 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration. 4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis. Installing Memory When upgrading memory, please note that memory modules of the same size must be used.
- Page 15 2. For both memory modules, pull back the black protective covering, and then release the ejector clips by gently pulling them out to the sides. Remove the memory modules. 3. Diagonally slide the new memory module into slot No.1 (as shown in the graphic below) making sure that the memory module’s connectors are fully inserted into the slot.
- Page 16 2. For both memory modules, pull back the black protective covering, and then release the ejector clips by gently pulling them out to the sides. Remove the memory modules. 3. For each slot, diagonally slide in a new memory module (as shown in the graphic below) making sure that each memory module’s connectors are fully inserted into the slot.
- Page 17 Replacing the Cover 1. Replace the cover and tighten the three screws that were removed previously. 2. Reconnect all cables including the power cord and then start up the NAS.
-
Page 18: Software Installation Guide
There are 4 different installation methods that you can choose from. Please select the method most suitable for you. If you do not have a CD drive, you can go to the download section of the ASUSTOR website (http://www.asustor.com/service/downloads) to download the latest software. - Page 19 Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process.
- Page 20 Insert the installation CD into your computer’s CD drive and then select “Quick Install” from the autorun CD-menu. The installation wizard will install ASUSTOR Control Center onto your computer. At this time you can also choose whether or not you want to install Download Assistant. After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices.
-
Page 21: Web Installation
Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. Please follow the instructions from the installation wizard to complete the configuration process. -
Page 22: Installation Using A Mobile Device
Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. AiMaster for Android AiMaster for iOS Make sure that your mobile device is connected to the same local network that your NAS is connected to. - Page 23 Select your NAS from the list that appears. Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process.
-
Page 24: Installation Using The Lcd Display
Installation Using the LCD Display The LCD display will ask you whether or not you want initialize the NAS once it has detected that the NAS has not yet started to initialize. Please use the "↵” button found on the right side of the LCD display to confirm that you want to initialize the NAS. -
Page 25: Installation Using A Direct Connection
Initialization is complete when the NAS’s IP address is shown on the LCD display. NOTE: The password for the “admin” account will be set to “admin”. This installation method is only suitable for use on models with LCD Displays AS6404T. Installation Using a Direct Connection troubleshooting Please see section for installation instructions. -
Page 27: Appendix
5. Appendix LED Indicators AS6302T/AS6404T 1. Power LED Indicator 2. System Status LED Indicator 3. Network LED Indicator * 4. USB LED Indicator 5. Hard Disk LED Indicator Color Description State Indicator Steadily lit Power on Blue Flashing Waking from sleep mode (S3) -
Page 28: Rear Panel
Steadily lit Hard disk abnormality Rear Panel 1. USB 3.0 Type C Port 2. HDMI Port 3. USB 3.0 Port 4. RJ45 Port 5. S/PDIF Port 6. Reset Button 7. DC Input 8. K-lock 9. System Fan Operating the LCD Panel You can use the LCD panel to configure system settings and check system information. - Page 29 2. Network 3. Storage 4. Temperature 5. Operation 6. Configuration Press the [Up] or [Down] buttons to navigate through the menu items. Press the [Confirm] button to enter into any submenu. Press the [Back] button to return to the previous level. 1.
- Page 30 In the Temperature submenu you can use the [Up], [Down] and [Confirm] buttons to view the temperature for the items listed below. 4.1. CPU: The temperature of the CPU. 4.2. System: The temperature of the NAS system. 4.3. HDD: The temperature of the hard disks. 5.
-
Page 31: Troubleshooting
“No”. Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network. - Page 32 Right-click on [Local Area Connection] and select [Properties]. Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties].
- Page 33 Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.1 and the [Subnet mask] to 255.255.0.0 and then click on [OK].
- Page 34 Open up ASUSTOR Control Center to scan for your NAS. 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer or ASUSTOR Customer Service http://support.asustor.com.You are also encouraged ASUSTOR Knowledgebase. to browse through the...
