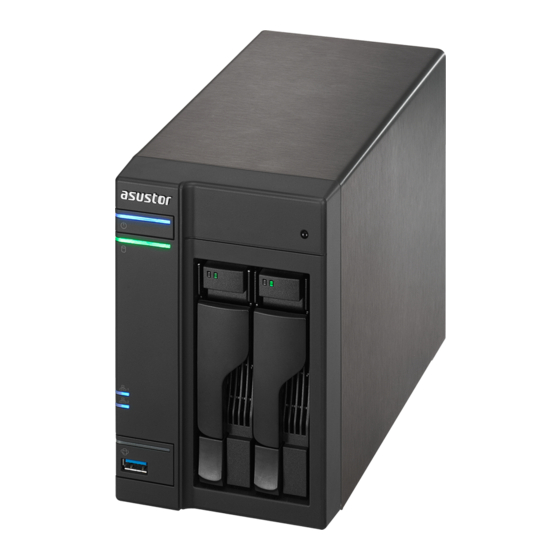

- Page 1 Memory Installation Guide For ASUSTOR AS63/64 Series NAS Ver. 2.7.1.0421...
-
Page 2: Table Of Contents
Parts and Tools Needed ..................3 Installation Guide ....................4 2.1. Removing the Cover ..................4 2.2. Installing Memory .................... 5 2.3. Replacing the Cover ..................8 Appendix ......................9 3.1. Troubleshooting ....................9 3.2. Contact ASUSTOR Technical Support ..............9 Page 2 of 9... -
Page 3: Introduction
Be careful not to injure your hands or fingers with sharp edges of the memory module, inner components, or circuit boards of your NAS. • ASUSTOR does not guarantee that third party memory modules will work in your NAS. • Be sure to turn off your NAS and peripherals and disconnect all attachments and connection cables before adding or removing memory modules. -
Page 4: Installation Guide
ASUSTOR NAS Memory Installation Guide 2.1. Removing the Cover • Shutdown the NAS by selecting [Shut down] from the ADM User Menu. • Disconnect all cables and devices connected to the NAS including the power cord. • Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration. -
Page 5: Installing Memory
ASUSTOR NAS Memory Installation Guide • Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis. 2.2. Installing Memory When upgrading memory, please note that memory modules of the same size must be used. - Page 6 ASUSTOR NAS Memory Installation Guide Diagonally slide the new memory module into slot No.1 (as shown in the graphic below) making sure that the memory module’s connectors are fully inserted into the slot. Using two fingers, carefully push down and then back on the memory module until it clicks into place.
- Page 7 ASUSTOR NAS Memory Installation Guide For each slot, diagonally slide in a new memory module (as shown in the graphic below) making sure that each memory module’s connectors are fully inserted into the slot. Using two fingers, carefully push down and then back on the memory module until it clicks into place.
-
Page 8: Replacing The Cover
ASUSTOR NAS Memory Installation Guide 2.3. Replacing the Cover 1. Replace the cover and tighten the three screws that were removed previously. 2. Reconnect all cables including the power cord and then start up the NAS. Page 8 of 9... -
Page 9: Appendix
ASUSTOR NAS Memory Installation Guide 3.1. Troubleshooting Q: After installing new memory my NAS won’t start. What’s wrong? A: Please follow the steps below to resolve this issue: 1. Check if the LED indicators, system buzzer, and LCD display panel are operating normally.
