ASUSTOR NAS Quick Start Guide Table of Contents Notices........................3 Safety Precautions ..................... 4 Package Contents ....................5 Hardware Installation Guide ................... 6 2.1. Hard Disk Installation ..................6 2.2. Connecting and Powering on the NAS ..............8 Software Installation Guide ..................9 3.1.
ASUSTOR NAS Quick Start Guide Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation.
ASUSTOR NAS Quick Start Guide Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical safety • Unplug this product from the power source before cleaning. • Use only the bundled power adapter. Using other power adapters may damage your device.

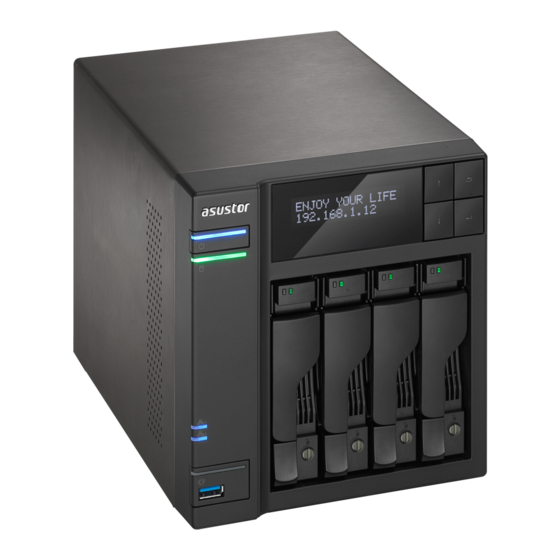

ASUSTOR NAS Quick Start Guide Applicable Models: AS-602T, AS-604T, AS-606T and AS-608T Contents AS-602T AS-604T AS-606T AS-608T NAS device Power cord Adapter RJ45 network cable Screws for use with 3.5” HDD Screws for use with 2.5” HDD Installation CD Page 5 of 16...
ASUSTOR NAS Quick Start Guide 2.1. Hard Disk Installation Press the button on the lower portion of the hard disk tray to release the latch. Using the latch, gently pull the disk tray out of the disk bay.
Page 7
ASUSTOR NAS Quick Start Guide Slide the disk tray onto the rails of the disk bay. Using the latch, gently push the disk tray all the way into the disk bay. Secure the disk tray in place by pushing down on the latch. The latch should close easily and snap in with an audible ‘click’.
ASUSTOR NAS Quick Start Guide 2.2. Connecting and Powering on the NAS Connect the NAS to its power supply. Connect the NAS to your router, switch or hub using an Ethernet cable. Press and hold down the power button for 1 – 2 seconds until the blue power LED indicator is ...
The installation wizard will install ASUSTOR Control Center onto your computer. After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the ...
Page 10
ASUSTOR NAS Quick Start Guide The installation wizard will install ASUSTOR Control Center onto your computer. At this time you can also choose whether or not you want to install Download Assistant. After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices.
Please follow the instructions from the installation wizard to complete the configuration process. 3.3. Installation Using the LCD Display Suitable for use with the AS-604T/606T/608T models The LCD display will ask you whether or not you want initialize the NAS once it has detected ...
ASUSTOR NAS Quick Start Guide 4.1. LED Indicators 1. Power LED Indicator 2. System Status LED Indicator 3. Network LED Indicator 4. USB LED Indicator 5. Hard Disk LED Indicator Color Description State Indicator Steadily lit Power on Blue Flashing...
3. Certification 4.4. Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: a. Make sure that your computer and your NAS are part of the same local area network.
Page 14
ASUSTOR NAS Quick Start Guide b. Click on [Change adapter settings] in the left hand panel. c. Right-click on [Local Area Connection] and select [Properties]. Page 14 of 16...
Page 15
ASUSTOR NAS Quick Start Guide d. Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties]. e. Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.1 and the [Subnet mask] to 255.255.0.0 and then click on [OK].
Page 16
ASUSTOR NAS Quick Start Guide Open up ASUSTOR Control Center to scan for your NAS. 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer or ASUSTOR Customer Service. Page 16 of 16...
