Summary of Contents for ASUSTOR AS3102T

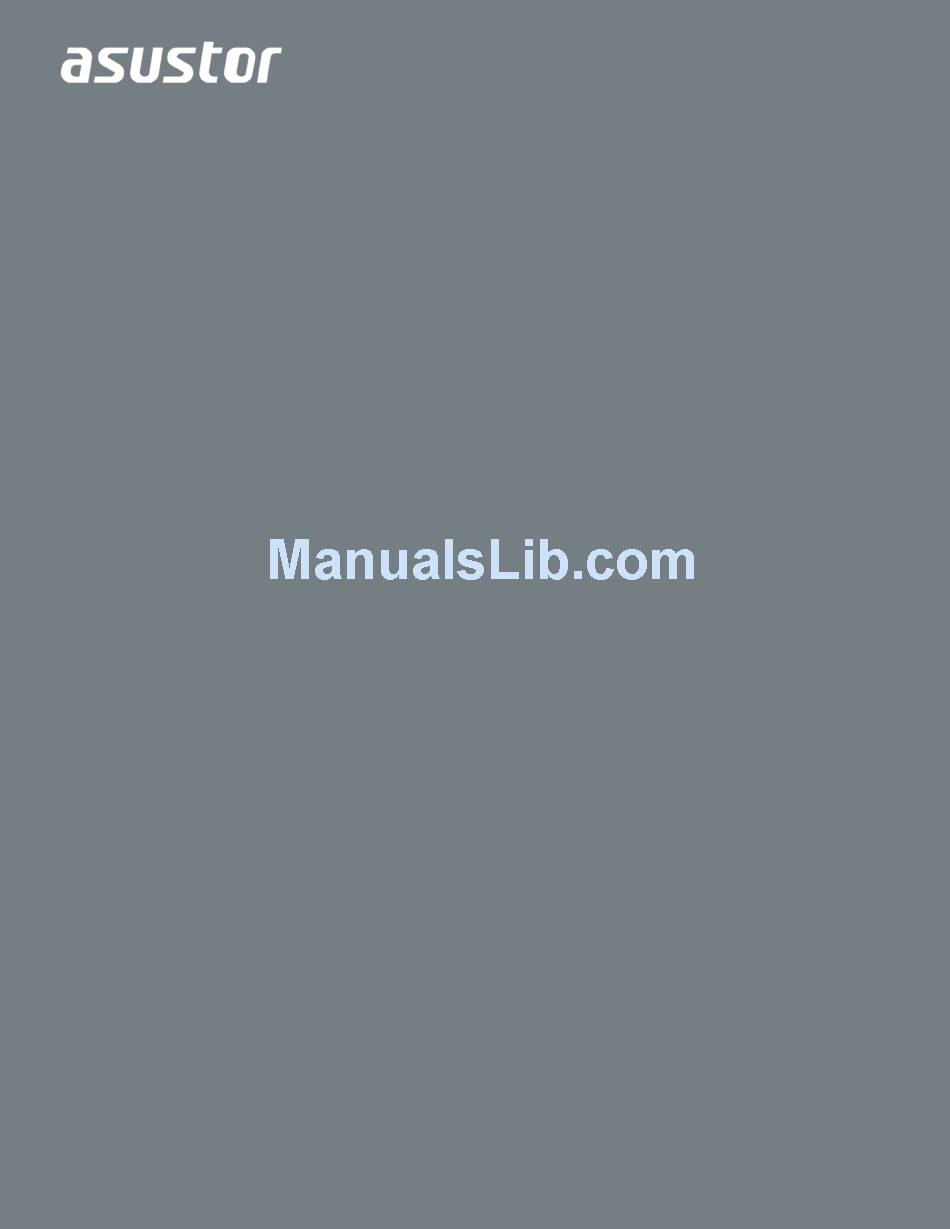

- Page 1 Quick Installation Guide Applicable Models: AS3102T/AS3104T/AS3202T/AS3204T Ver.2.5.0128 (2016-1-28)
-
Page 2: Table Of Contents
Table of Contents Notices ............................ 3 Safety Precautions ........................4 1. Package Contents ......................5 2. Optional Accessories ......................7 3. Hardware Installation Guide ....................8 Tools Needed for Hard Disk Installation ................8 Hard Disk Installation ......................8 Connecting and Powering on the NAS ................11 4. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating. -
Page 5: Package Contents
1. Package Contents Applicable Models: AS3102T, AS3202T, AS3104T, AS3204T Model Name AS3102T/AS3202T AS3104T/AS3204T Power Cord Adapter RJ45 Network Cable Screws for use with 3.5” HDD Installation CD... - Page 6 Quick Start Guide...
-
Page 7: Optional Accessories
2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. -
Page 8: Hardware Installation Guide
Hard Disk Installation Remove the screws from the rear of the NAS as shown in the graphic below. l AS3102T/AS3202T l AS3104T/AS3204T Place the device sideways on a flat surface. Note the wording indicating the directions for opening and closing the cover. - Page 9 AS3104T/AS3204T Installing 3.5 inch hard disks: Slide the hard disks all the way into the disk bay until they are firmly seated and connected with the SATA connector. l AS3102T/AS3202T l AS3104T/AS3204T...
- Page 10 Secure each hard disk with the screws provided as shown in the graphic below. l AS3102T/AS3202T Note: If you wish to utilize the RAID function, it is recommended that you use hard disks of the same capacity in order to fully utilize the capacity of all hard disks.
-
Page 11: Connecting And Powering On The Nas
l AS3104T/AS3204T Connecting and Powering on the NAS Connect the NAS to its power supply. Connect the NAS to your router, switch or hub using an Ethernet cable. Press and hold down the power button located on the back of the device for 1 – 2 seconds until the yellow power LED indicator is lit. - Page 12 AS3102T/AS3202T AS3104T/AS3204T...
-
Page 13: Software Installation Guide
There are 4 different installation methods that you can choose from. Please select the method most suitable for you. If you do not have a CD drive, you can go to the download section of the ASUSTOR website (http://www.asustor.com/service/downloads) to download the latest software. - Page 14 Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process.
-
Page 15: Mac Users
Insert the installation CD into your computer’s CD drive and then select “Quick Install” from the autorun CD-menu. The installation wizard will install ASUSTOR Control Center onto your computer. At this time you can also choose whether or not you want to install Download Assistant. After ASUSTOR Control Center has been... -
Page 16: Web Installation
Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process. Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. Please follow the instructions from the installation wizard to complete the configuration process. -
Page 17: Installation Using A Mobile Device
Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. AiMaster for Android AiMaster for iOS Make sure that your mobile device is connected to the same local network that your NAS is connected to. - Page 18 Select your NAS from the list that appears. Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process.
-
Page 19: Installation Using A Direct Connection
Installation Using a Direct Connection Troubleshooting Please see section for installation instructions. Shutting Down Your NAS 1. Confirm the function settings for the power button as shown in the graphic below. When the power button is held down for 1.5 seconds you can decide whether to shut down the NAS or have it enter into sleep mode. - Page 20 2. Hold down the power button for 1.5 seconds. You should be able to hear a “beep” from the system buzzer. Let go of the power button and the NAS will either shut down or enter sleep mode depending on your configuration.
-
Page 21: Appendix
5.Appendix LED Indicators AS3102T/AS3104T/AS3202T/AS3204T 1. Power LED Indicator 2. System Status LED Indicator 3. Network LED Indicator 4. Hard Disk LED Indicator Color Description State Indicator Yellow Steadily lit Power on Power Orange Flashes every 10 seconds LED night mode... -
Page 22: Rear Panel
8. System Fan Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network. - Page 23 Click on [Change adapter settings] in the left hand panel.
- Page 24 Right-click on [Local Area Connection] and select [Properties]. Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties].
- Page 25 Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.1 and the [Subnet mask] to 255.255.0.0 and then click on [OK]. Open up ASUSTOR Control Center to scan for your NAS. 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer or ASUSTOR Customer Service http://support.asustor.com.You are also encouraged...
