M.2 SSD Drive Installation Guide
Table of Contents
1. Introduction ................................................................................................................................................... 3
1.1. Notes and Precautions .......................................................................................................................... 3
1.2. Parts and Tools Needed ....................................................................................................................... 3
2. Installation Guide .......................................................................................................................................... 4
2.1. Removing the Cover ............................................................................................................................. 4

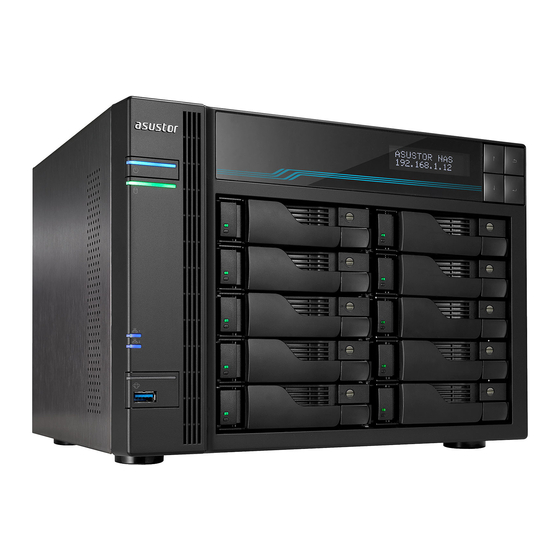

For ASUSTOR AS65 Series NAS
Ver.1.0.3.1105
Advertisement
Table of Contents
Related Manuals for ASUSTOR AS65 Series
Summary of Contents for ASUSTOR AS65 Series
- Page 1 M.2 SSD Drive Installation Guide For ASUSTOR AS65 Series NAS Ver.1.0.3.1105 Table of Contents 1. Introduction ..............................3 1.1. Notes and Precautions .......................... 3 1.2. Parts and Tools Needed ........................3 2. Installation Guide ............................4 2.1. Removing the Cover ..........................4...
- Page 2 ASUSTOR NAS M.2 SSD Drive Installation Guide 2.2. Installing M.2 SSD Drive ........................5 2.3. Replacing the Cover ..........................6 3. Appendix ............................... 8 3.1. Troubleshooting ............................ 8 3.2. Contact ASUSTOR Technical Support ....................8 Page 2 of 8...
-
Page 3: Notes And Precautions
ASUSTOR NAS M.2 SSD Drive Installation Guide 1.1. Notes and Precautions All AS65 Series NAS devices of M.2 SSD Drive. Before adding M.2 SSD Drive, please read the following precautions thoroughly. Your NAS and M.2 SSD Drive use high precision components and electronic connector technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: ... -
Page 4: Installation Guide
ASUSTOR NAS M.2 SSD Drive Installation Guide 2.1. Removing the Cover Shutdown the NAS by selecting [Shut down] from the ADM User Menu. Disconnect all cables and devices connected to the NAS including the power cord. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration. -
Page 5: Installing M.2 Ssd Drive
ASUSTOR NAS M.2 SSD Drive Installation Guide Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis. 2.2. Installing M.2 SSD Drives Insert M.2 SSD Drive at a 45° angle and gently push into slot. -
Page 6: Replacing The Cover
ASUSTOR NAS M.2 SSD Drive Installation Guide Adjust the standoff so that it matches the length of your SSD. Gently push the drive down as indicated by the arrow so that it is flush with the location of the standoff. Secure drive with included thumbscrew. - Page 7 ASUSTOR NAS M.2 SSD Drive Installation Guide Page 7 of 8...
-
Page 8: Appendix
3. If your NAS still does not operate normally, please remove the newly installed M.2 SSD Drive module, and then restart the NAS to see if it is able to operate normally. 4. If the previous steps have not solved your problem, please contact your local dealer or ASUSTOR customer service.
