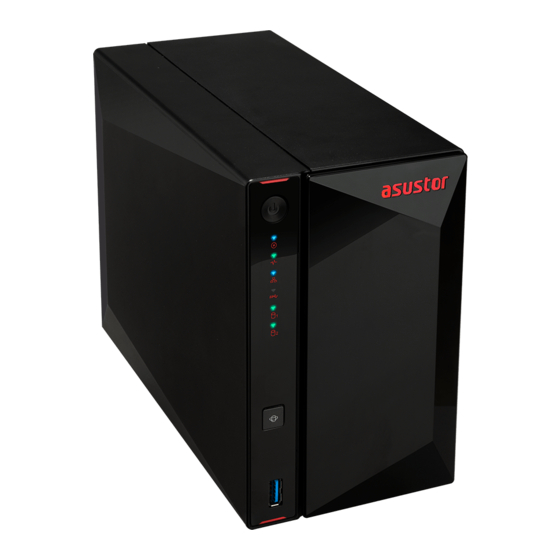

- Page 1 Quick Installation Guide Applicable Models AS5202T/AS5304T Ver.2.3.0903 (2015-3-2) Ver.3.3.0118 (2019-1-18)
-
Page 2: Table Of Contents
Table of Contents Notices ............................ 3 Safety Precautions ........................4 1. Package Contents ......................5 2. Optional Accessories ......................6 3. Hardware Installation Guide ....................7 Tools Needed for Hard Disk Installation ................7 Hard Disk Installation ......................7 Securing the Power Cord..................... 9 Connecting and Powering on the NAS ................ -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating. -
Page 5: Package Contents
1. Package Contents Applicable Models: AS5202T, AS5304T Model Name AS5202T AS5304T Power Cord Adapter RJ45 Network Cable Screws for use with 2.5” HDD Quick Installation Guide... -
Page 6: Optional Accessories
2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. -
Page 7: Hardware Installation Guide
At least one 2.5 or 3.5 inch SATA hard disk. (For a list of compatible hard disks, please see http://www.asustor.com/service/hd?id=hd) Hard Disk Installation 1. Remove the front panel as shown in the image below. AS5202T AS5304T 2. Using the latch, gently pull the disk tray out of the disk bay. AS5202T AS5304T 3. - Page 8 Secure the disk tray in place by pushing down on the latch. The latch should close easily and snap in with an audible ‘click’. Please make sure that the disk tray is pushed all the way into the disk bay before attempting to secure the latch. AS5202T AS5304T 5. Return the front panel.
-
Page 9: Securing The Power Cord
AS5202T AS5304T Securing the Power Cord Note: You can use the provided cord bracket to secure the power cord in place, if you are concerned about the NAS power cord becoming detached when the NAS is moved. Attach the bracket to the power cord as shown in the graphic below. -
Page 10: Upgrading System Memory
Your NAS and memory modules use high precision components and electronic connector technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: Memory for AS52 and AS53 series devices may be purchased from local dealers or the online ASUSTOR Accessories Store (http://shop.asustor.com). - Page 11 Do not remove or loosen screws that are not specified to be removed. Parts and Tools Needed Phillips head screwdriver Removing the Cover 1. Shutdown the NAS by selecting [Shut down] from the ADM User Menu. 2. Disconnect all cables and devices connected to the NAS including the power cord. AS5202T AS5304T...
- Page 12 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration. AS5202T AS5304T 4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis.
- Page 13 Diagonally slide the new memory module into slot No.1 (as shown in the graphic below) making sure that the memory module’s connectors are fully inserted into the slot. Using two fingers, carefully push down and then back on the memory module until it clicks into place. You should be able to hear an audible “click”. AS5202T AS5304T...
- Page 14 Replacing the Cover 1. Replace the cover and tighten the three screws that were removed previously. 2. Reconnect all cables including the power cord and then start up the NAS.
-
Page 15: Software Installation Guide
Download Center Installation Windows Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration... - Page 16 Mac Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process.
-
Page 17: Web Installation
Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. Please follow the instructions from the installation wizard to complete the configuration process. -
Page 18: Installation Using A Mobile Device
Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. AiMaster for Android AiMaster for iOS Make sure that your mobile device is connected to the same local network that your NAS is connected to. - Page 19 Select your NAS from the list that appears. Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process.
-
Page 20: Installation Using A Direct Connection
Installation Using a Direct Connection Troubleshooting Please see section for installation instructions. Shutting Down Your NAS 1. Confirm the function settings for the power button as shown in the graphic below. When the power button is held down for 1.5 seconds you can decide whether to shut down the NAS or have it enter into sleep mode. This setting may be access from within ADM by selecting: [Settings][Hardware] ... - Page 21 2. Hold down the power button for 1.5 seconds. You should be able to hear a “beep” from the system buzzer. Let go of the power button and the NAS will either shut down or enter sleep mode depending on your configuration. AS5202T AS5304T...
-
Page 22: Appendix
5. Appendix LED Indicators AS5202T 1. Power LED Indicator 2. System Status LED Indicator 3. Network LED Indicator * 4. USB LED Indicator 5. Hard Disk LED Indicator AS5304T 1. Power LED Indicator 2. System Status LED Indicator 3. Network LED Indicator * 4. -
Page 23: Rear Panel
Green Hard Disk Flashing Data access in progress Steadily lit Hard disk abnormality Rear Panel AS5202T 1. USB 3.2 Gen 1 Port 2. HDMI Port 3. 2.5 Gigabit RJ-45 Port 4. Reset Button 5. DC Input 6. K-lock 7. System Fan... -
Page 24: Troubleshooting
7. System Fan Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network. - Page 25 Click on [Change adapter settings] in the left hand panel.
- Page 26 Right-click on [Local Area Connection] and select [Properties]. Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties].
- Page 27 Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.1 and the [Subnet mask] to 255.255.0.0 and then click on [OK]. Open up ASUSTOR Control Center to scan for your NAS. 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer or ASUSTOR Customer Service http://support.asustor.com.You are also encouraged...
