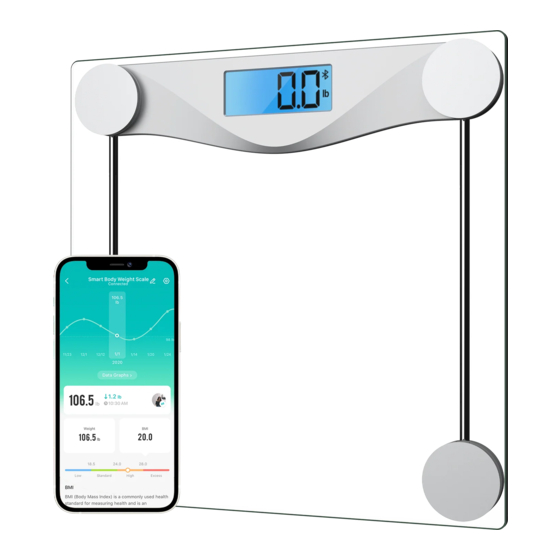

- Page 1 Smart Body Weight Scale User Manual Questions or Concerns? (855) 686-3835 • support@etekcity.com...
-
Page 2: Table Of Contents
Table of Contents Package Contents Specifications Safety Information Function Diagram Display Diagram Before First Use VeSync App Setup • Creating a User Using the Smart Scale • Converting Weight Units Maintenance • Clearing the Smart Scale • Cleaning the Smart Scale •... -
Page 3: Package Contents
1 x Smart Body Weight Scale 2 x 1.5V AAA Batteries (Pre-Installed) 1 x Quick Start Guide Specifications Models ESB4074C, ESB4074C-RBX Weight Capacity 400 lb / 28 st / 180 kg Increments 0.1 lb / 0.05 kg Weight Units lb / st / kg Platform Tempered Glass Battery 2 x 1.5V AAA Batteries (Pre-Installed) -
Page 4: Safety Information
READ AND SAVE THESE INSTRUCTIONS Safety Information Please read and follow all instructions and safety guidelines in this manual. Medical • This scale should not be used to diagnose or treat any medical condition. • Scale data should not be used as a substitute for medical advice from a healthcare professional. - Page 5 • Place the scale on a hard, flat surface to avoid tipping. • To weigh safely and accurately, stand with your feet shoulder- width apart while on the scale. Do not stand on the edge of the scale or jump on the scale. •...
-
Page 6: Function Diagram
Function Diagram Weighing Platform Anti-Skid Padding Display Unit Switching Button 4 High-Precision Sensors Battery Compartment... -
Page 7: Display Diagram
Display Diagram Weight Measurement Bluetooth Icon ® Weight Units... -
Page 8: Before First Use
Before First Use Open the battery compartment on the underside of the scale. Remove the included AAA batteries. Remove the plastic insulator strip from the battery compartment. Replace the batteries. Follow the guidelines in the battery compartment to match the –... -
Page 9: Vesync App Setup
VeSync App Setup Note: Due to app updates and improvements, the VeSync app may be slightly different than shown in the manual. In case of any differences, follow the in-app instructions. To download the free VeSync app, scan the QR code or search “VeSync”... - Page 10 Make sure you allow the app to have Bluetooth ® permissions and turn on Bluetooth. For Android users, make sure you allow access to nearby devices in your phone’s settings. Note: If your phone is running a version of Android older than 12.0, make sure you allow Location (GPS) permissions as well.
-
Page 11: Creating A User
Creating a User If you are a new user, you will need to enter physical information before weighing yourself for the first time so the scale can calculate your body metrics. Follow the in-app instructions to create a user profile. Note: •... -
Page 12: Using The Smart Scale
Using the Smart Scale Note: • To see your BMI measurement, you must connect the scale to the VeSync app (see page 9). • If you are pregnant, your BMI measurement may not be accurate. Place the scale on a hard, flat surface (not a carpet or mat). [Figure 1.1] Note: •... - Page 13 Step on, then step off the scale and wait for the LCD display to show “ 0.00 ” before weighing. Stand on the scale until the display flashes several times, showing your final measurement. [Figure 1.2] If you’ve set up your smart scale in the VeSync app, your results (weight and BMI) will show in the app.
-
Page 14: Converting Weight Units
Converting Weight Units • To change the unit of measurement (lb, st, or kg), step on the scale to turn it on. Then, turn the scale over and press the unit switching button. [Figure 2.1] Figure 2.1... - Page 15 • You can also adjust the unit of measurement in the VeSync app by going to the smart scale’s settings ( ). To keep settings consistent between the scale and the app, make sure the scale is connected to the VeSync app. [Figure 2.2] Device Home Page...
-
Page 16: Maintenance
Maintenance Clearing the Smart Scale If the scale has been moved or flipped upside down, it must be cleared to ensure accurate results. Place the scale on a hard, flat surface. Step on the scale with one foot until digits appear on the display, then step off. -
Page 17: Cleaning The Smart Scale
Cleaning the Smart Scale • Use a slightly damp cloth to clean the surface of the scale, followed by a soft, dry cloth to wipe away any remaining moisture. • Do not use chemical or abrasive cleaning agents to clean the scale. Replacing the Batteries The display will show “... -
Page 18: Common Display Codes
Common Display Codes No Bluetooth Connection Bluetooth Connection Clearing Overload Change Battery... -
Page 19: Troubleshooting
Troubleshooting The scale doesn’t turn on. • Check if the batteries are properly installed. If using the scale for the first time, remove the plastic insulator strip from the battery compartment. Information flashes on the display and then disappears. • The batteries are low and may need to be replaced. The smart scale doesn’t connect to the VeSync app. - Page 20 Try the following: • Enable Bluetooth on your phone. • Step on the scale to turn it on. • Open the Vesync App, tap and select your smart scale. Make sure you select the correct model. • Follow the in-app instructions to connect to your smart scale. Note: If your phone is running a version of Android older than 12.0, make sure you allow Location (GPS) permissions as well.
- Page 21 My scale will only measure my weight, not my BMI. • Make sure you set up your smart scale in the VeSync app and enter all your health information (including your height). Your weight will show on the scale display, and your weight and BMI will show in the app. •...
- Page 22 Android and Google Play are trademarks of Google LLC. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth ® SIG, Inc. and any use of such marks by Etekcity Corporation is under license. Other trademarks and trade names are those of their respective owners.
- Page 23 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 24: Warranty Information
During the Limited Warranty Period and subject to this limited Warranty Policy, Etekcity will, in its sole and exclusive discretion, either (i) refund the purchase price if the purchase was made directly from the online Etekcity store, (ii) repair any defects in material or workmanship, (iii) replace the product with another product of equal or greater value, or (iv) provide store credit in the amount of the purchase price. - Page 25 You can protect yourself and your products by making sure you only purchase from Etekcity or its authorized dealers.
- Page 26 NONCONFORMITY OF THE PRODUCT COVERED BY THIS LIMITED PRODUCT WARRANTY STATEMENT. THIS LIMITED WARRANTY IS EXCLUSIVE, AND IN LIEU OF ALL OTHER WARRANTIES. NO EMPLOYEE OF ETEKCITY CORPORATION OR ANY OTHER PARTY IS AUTHORIZED TO MAKE ANY WARRANTY IN ADDITION TO THE LIMITED WARRANTY IN THIS LIMITED PRODUCT WARRANTY STATEMENT.
- Page 27 PURCHASE PRICE PAID BY THE PURCHASER FOR SUCH PRODUCTS, OR (b) INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES EVEN IF ETEKCITY CORPORATION OR ONE OF ITS SUPPLIERS HAS BEEN ADVISED OF THE POSSIBILITY OR LIKELIHOOD OF SUCH DAMAGES. AND REGARDLESS OF WHETHER CAUSED BY TORT (INCLUDING NEGLIGENCE), BREACH OF CONTRACT, OR OTHERWISE.
- Page 28 UNDERSTAND YOUR RIGHTS FULLY. CHANGES TO THIS POLICY We may change the availability of this limited warranty at our discretion, but any changes will not be retroactive. This warranty is made by: Etekcity Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806...
-
Page 29: Customer Support
Customer Support If you have any questions or concerns about your new product, please contact our helpful Customer Support Team. Etekcity Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806 Email: support@etekcity.com Toll-Free: (855) 686-3835 Support Hours Mon–Fri, 9:00 am–5:00 pm PST/PDT *Please have your invoice and order ID ready before contacting Customer Support. - Page 30 DL041023AC_M1_ ESB4074C-RBX_us retail...
