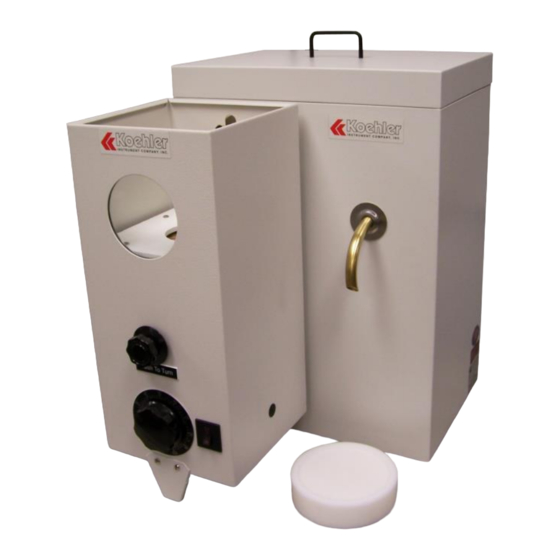

Front View Distillation Apparatus
Operation and Instruction Manual
REV B
Koehler Instrument Company, Inc.
1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA
Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815
http://www.koehlerinstrument.com • e-mail: info@koehlerinstrument.com
Petroleum Testing & Analysis Instrumentation • Custom Design & Manufacturing
Advertisement
Table of Contents
Related Manuals for Koehler K45 Series
Summary of Contents for Koehler K45 Series
- Page 1 Front View Distillation Apparatus Operation and Instruction Manual REV B Koehler Instrument Company, Inc. 1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815 http://www.koehlerinstrument.com •...
- Page 3 NF M 07-002 This unit is tested before it leaves the factory, to ensure total functionality and compliance to the above specifications and ASTM standards. Test and inspection records are on file for verification. Jesse Kelly Application Engineer Koehler Instrument Company...
-
Page 5: Table Of Contents
K45XXX Front View Distillation Apparatus Operation and Instruction Manual Table of Contents 1 Introduction ........................2 1.1 Koehler's Commitment to Our Customers ..................... 2 1.2 Recommended Resources and Publications ..................2 1.3 Instrument Specifications ........................3 2 Safety Information and Warnings ................. 3 3 Getting Started ....................... -
Page 6: Introduction
K45XXX Front View Distillation Apparatus Operation and Instruction Manual 1 Introduction solutions. You can depend on Koehler for a full range of accurate and reliable instrumentation The Koehler K45XXX Front View Distillation as well as support for your laboratory testing Apparatus is the latest design for distillation of programs. -
Page 7: Instrument Specifications
K45XXX Front View Distillation Apparatus Operation and Instruction Manual Tel: 41 22 749 01 11 Electrical Fax: 41 22 733 34 30 Requirements: 115V 60Hz http://www.iso.org 220-240V 50/60Hz ISO Publication: ISO 115V 60Hz 3405: Petroleum Products- 220-240V 50/60Hz Determination Distillation Characteristics at Atmospheric Pressure Capacity: One (1) Sample... -
Page 8: Getting Started
Flask C 200mL by making minor turning adjustments to the feet located at the base of the unit. Please note that 332-003-005 Flask D 250mL Koehler does not supply a level with this equipment. 332-002-013 Graduate A 25mL 332-002-003 Graduate B 100mL Ventilation. -
Page 9: Descriptions
K45XXX Front View Distillation Apparatus Operation and Instruction Manual bath is filled with the proper medium; otherwise damage may occur to the unit and the warranty will be void. 4 Descriptions Figure 2: Distillation Flask Figure 1: Apparatus (Front) 1) Graduated Cylinder Base Figure 3: Centering Stopper 2) Graduated Cylinder (Receiving) 3) Condenser Tube... -
Page 10: Assembling Test Equipment
6.2.2 Spare Parts for all 8 Units (including personal injury or death. If you have any Group 4) questions about maintaining your equipment, please do not hesitate to contact the Koehler following spare parts used technical service department. -
Page 11: Troubleshooting
3. Using a pair of diagonal cutters or pliers, Please do not hesitate to contact Koehler for remove the roll pin from the shaft and assistance. -
Page 12: Heater Assembly Drawings
K45XXX Front View Distillation Apparatus Operation and Instruction Manual 9 Heater Assembly Drawings “Drawing A” Side View K45XXX-Manual... - Page 13 K45XXX Front View Distillation Apparatus Operation and Instruction Manual “Drawing B” Top View K45XXX-Manual...
-
Page 14: Wiring Diagrams
K45XXX Front View Distillation Apparatus Operation and Instruction Manual Wiring Diagrams 10.1 K45000 (Group 1-3, 115V, Right Hand Model) K45XXX-Manual... -
Page 15: K45090 (Groups 1-3, 220-240V, Right Hand Model)
K45XXX Front View Distillation Apparatus Operation and Instruction Manual 10.2 K45090 (Groups 1-3, 220-240V, Right Hand Model) -10- K45XXX-Manual... -
Page 16: K45200 (Group 4, 115V, Right Hand Model)
K45XXX Front View Distillation Apparatus Operation and Instruction Manual 10.3 K45200 (Group 4, 115V, Right Hand Model) -11- K45XXX-Manual... -
Page 17: K45290 (Group 4, 220-240V, Right Hand Model)
K45XXX Front View Distillation Apparatus Operation and Instruction Manual 10.4 K45290 (Group 4, 220-240V, Right Hand Model) -12- K45XXX-Manual... -
Page 18: Storage
Returns will be subject to a restocking charge, the application of which will depend Warranty upon the circumstances necessitating the return. We, at Koehler, would like to thank you for Some returns cannot be authorized, including your equipment purchase, which is protected by certain... -
Page 19: Notes
K45XXX Front View Distillation Apparatus Operation and Instruction Manual Notes -14- K45XXX-Manual... - Page 20 K45XXX Front View Distillation Apparatus Operation and Instruction Manual Notes -15- K45XXX-Manual...
