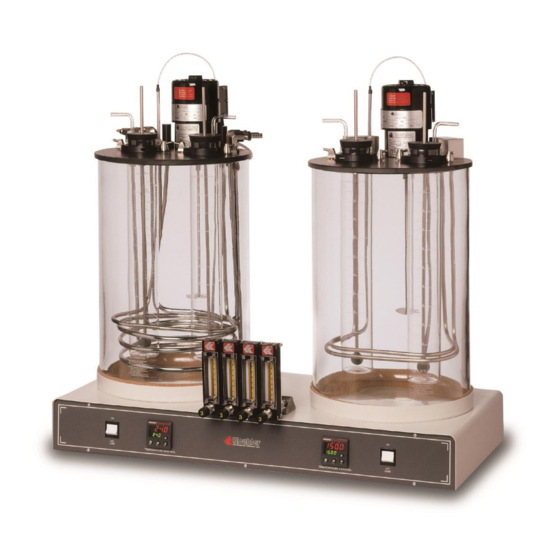

K430X2
Dual Twin Foaming
Characteristics Test Apparatus
Operation and Instruction Manual
REV C
Koehler Instrument Company, Inc.
1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA
Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815
http://www.koehlerinstrument.com • e-mail: info@koehlerinstrument.com
Petroleum Testing & Analysis Instrumentation • Custom Design & Manufacturing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K430X2 and is the answer not in the manual?

Questions and answers

Related Manuals for Koehler K430X2

Summary of Contents for Koehler K430X2

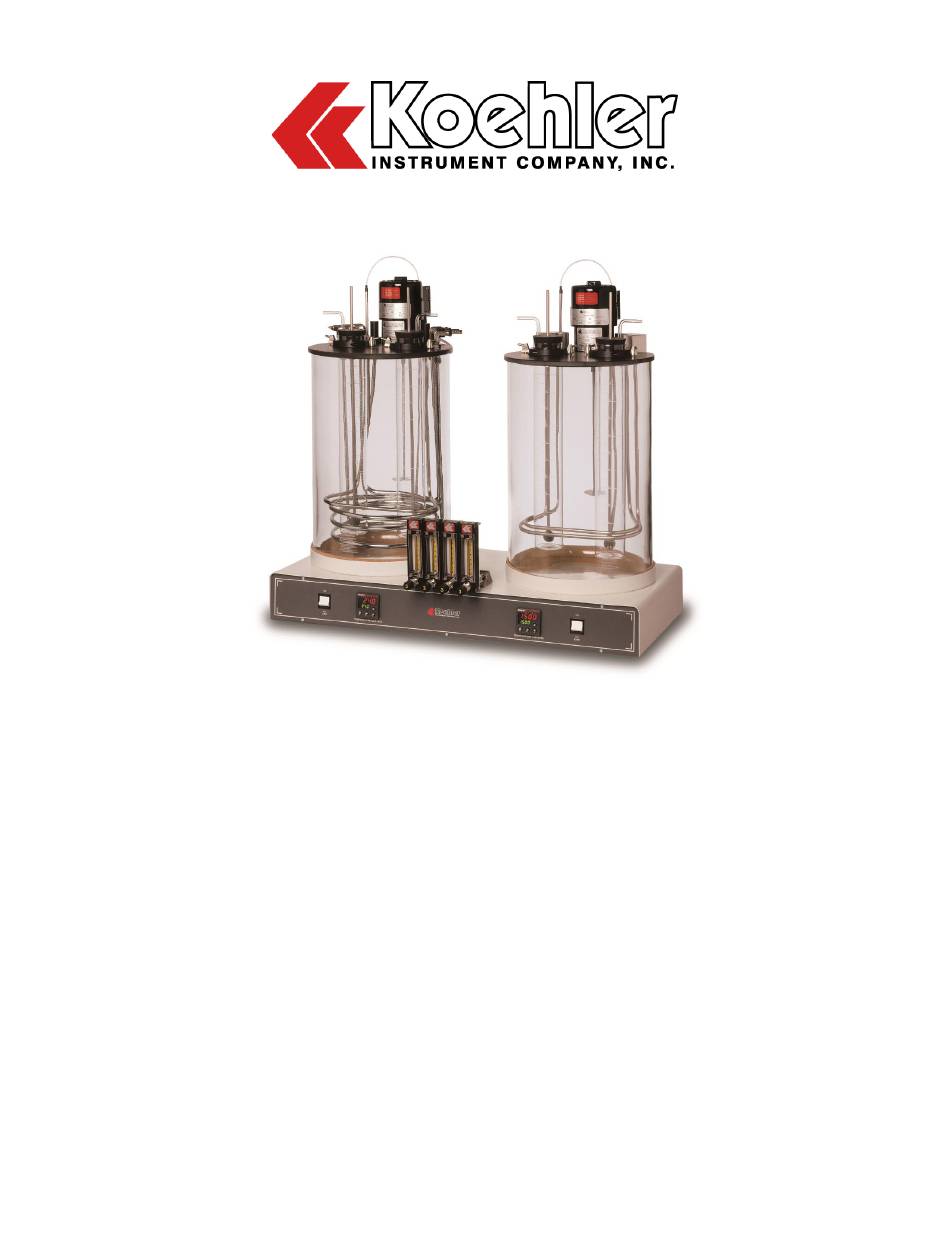

  • Page 1 Characteristics Test Apparatus Operation and Instruction Manual REV C Koehler Instrument Company, Inc. 1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815 http://www.koehlerinstrument.com •...
  • Page 3 CERTIFICATE OF CONFORMANCE Liquid Foaming Characteristics Apparatus K430X2 This certificate verifies that part number K430X2, Liquid Foaming Characteristics Apparatus, was manufactured in conformance with the applicable standards set forth in this certification. Specifications: ASTM D892 IP 146 DIN 51566 FTM 791-3211...
  • Page 5 K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual K430X2-Manual...
  • Page 6 K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual K430X2-Manual...
  • Page 7 Responsibility for Registration and Annual Reporting: Koehler will not sell directly to end users in the EU and so has no responsibility to register within each EU state and to make annual reports. Koehler declares that this responsibility is born by the importer who is the first level of the distribution chain and is subject to producer responsibility.
  • Page 8 WEEE Marking Since Koehler products are subject to the WEEE Directive we must display the WEEE symbol shown above in accordance with European Standard EN 50419 on the equipment. It must be indelible, at least 5mm in height, and clearly legible.

  • Page 9: Table Of Contents

    K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual Table of Contents 1 Introduction ........................7 1.1 Koehler’s Commitment to Our Customers ..................... 7 1.2 Recommended Resources and Publications ..................7 1.3 Instrument Specifications ........................8 1.4 Software Specifications .......................... 8 2 Safety Information and Warnings ................
  • Page 10 K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual 12 Warranty ........................17 13 Returned Goods Policy ....................18 Notes ..........................19 K430X2-Manual...

  • Page 11: Introduction

     DIN 51566 provide you with the best solutions. You can depend on Koehler for a full range of accurate and 4. Federal Test Method (FTM) reliable instrumentation as well as support for your laboratory testing programs. Please do not...

  • Page 12: Instrument Specifications

    K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual Instrument Specifications 2 Safety Information and Warnings Models: K43002 Safety Considerations. this K43092 equipment may involve hazardous materials and operations. This manual does not purport to Electrical address all of the safety problems associated with Requirements: 115V, 60Hz, 15.6A...

  • Page 13: Getting Started

    Please note that Koehler does not supply a level with this equipment. 2. Check labeling for correct orientation of instrument.

  • Page 14: Descriptions

    K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual 4 Descriptions  Temperature Range: 5 to 40°C Main Instrument Controls  Elevation to 2000 meters  Relative Humidity: < 80% Ventilation. A fume hood or exhaust system is required when operating the unit.

  • Page 15: Flowmeter Setup And Operation

    K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual diffuser located at the bottom of the Test 90.8 Cylinder. 77.8 66.0 8. Cold Bath. For performing Sequence I and III 56.0 test procedures. 46.5 38.3 9. Hot Bath. For performing Sequence II test 30.5...
  • Page 16 K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual parameters needed for any particular set point IMPORTANT NOTE: digital temperature. This operation should be done temperature controller for the unit comes when installing a new unit, after replacing or pre-programmed from the Koehler factory.

  • Page 17: Operation

    K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual 5 Operation changed. See Draining instructions in section 7.3 of this document. When a decision is made to Bath discard this material, dispose of this material and its container to a hazardous of special waste Fill each bath with the appropriate heat transfer collection point.

  • Page 18: Safety Features

    K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual 6 Safety Features 7 Maintenance The Koehler K430X2 Dual Twin Foaming Test Bath equipped with several safety and WARNING. Disconnect power to the unit protection features, which are described in the before servicing to avoid exposure to high following sections.

  • Page 19: Replacement Parts

    K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual Replacement Parts Part Number Description 090-120-010 Relay, 120V 091-120-001 Solid State Relay, 120V 091-240-004 Solid State Relay, 240V Thermometer / Probe Holder 265-400-002 RTD Temperature Probe 275-103-044 Temperature Controller, 100-240V, 50/60Hz 7A...

  • Page 20: Wiring Diagrams

    K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual 8 Wiring Diagrams Unit Wiring -16- K430X2-Manual...

  • Page 21: Troubleshooting

    Make sure the connector plug on the rear panel is firmly plugged in. Warranty Unit is on but bath does not heat up We, at Koehler, would like to thank you for your  equipment purchase, which is protected by the Make sure that the actual temperature following warranty.
  • Page 22 K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual DISCLAIMS OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE. Please save shipping carton in the event the equipment needs to be returned to the factory for warranty repair. If the carton is discarded, it will be the purchaser’s...
  • Page 23 K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual Notes -19- K430X2-Manual...
  • Page 24 K430X2 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual Notes -20- K430X2-Manual...
