- Page 1 Liquid Foam Test Bath Operation and Instruction Manual REV B Koehler Instrument Company, Inc. 1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815 http://www.koehlerinstrument.com •...
- Page 3 CERTIFICATE OF CONFORMANCE Liquid Foaming Characteristics Apparatus K4304X This certificate verifies that part number K4304X, Liquid Foaming Characteristics Apparatus, was manufactured in conformance with the applicable standards set forth in this certification. Specifications: ASTM D6082 IP 146 DIN 51566 FTM 791-3211...
-
Page 5: Table Of Contents
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual Table of Contents 1 Introduction ........................3 1.1 Koehler’s Commitment to Our Customers ..................... 3 1.2 Recommended Resources and Publications ..................3 1.3 Instrument Specifications ........................3 1.4 Software Specifications .......................... - Page 6 K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual 12 Warranty ........................11 13 Returned Goods Policy ....................12 Notes ..........................13 Notes ..........................14 K4304X-Manual...
-
Page 7: Introduction

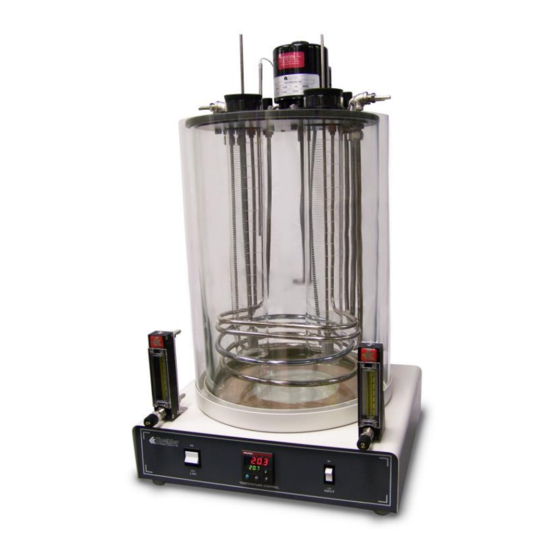

K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual 1 Introduction Recommended Resources Publications Koehler K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath is the latest 1. American Society for Testing and Materials design for determining foaming characteristics of... -
Page 8: Safety Information And Warnings
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual 2 Safety Information and Warnings 3 Getting Started Safety Considerations. this The instructions for preparing the equipment equipment may involve hazardous materials and assume that the user is aware of the contents of operations. -
Page 9: Descriptions
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual Install the RTD probes in the bath top with the cork 1. Line Switch. This switch controls the power to / thermometer probe holder provided motor and heater / temperature controller. -
Page 10: Top Plate Descriptions
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual Top Plate Descriptions tubing from the flowmeter outlet when the aeration period as elapsed. Flowmeter Calibration Data K43002-4-12 Flow Rate 200 mL/min Float Material: Carboloy Float Density: 14.98 g/ml... - Page 11 K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual point with the up and down keys. The set point will be displayed in the lower green Set Point LED display and the actual temperature will be displayed in the upper red Process LED display.
-
Page 12: Operation
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual b. Press the up and down arrow buttons 3. Place the two 1000 ml test cylinders into the simultaneously for about 5 seconds. When tops & lock in place with the four clamps Auto Tune is active, the lower green LED provided on the top plate. -
Page 13: Routine Maintenance
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual WARNING. Disconnect power to the unit before servicing to avoid exposure to high voltages and/or temperatures which may result in personal injury or death. If you have any questions about... -
Page 14: Wiring Diagrams
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual 8 Wiring Diagrams Unit Wiring -10- K4304X-Manual... -
Page 15: Troubleshooting
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual 9 Troubleshooting Service Under normal operating conditions and with WARNING: Troubleshooting procedures involve routine maintenance, K4304X High working with high voltages and/or temperatures Temperature Sequence IV Liquid Foam Test Bath which may result in personal injury or death, and should not require service. -
Page 16: Returned Goods Policy
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual KOEHLER INSTRUMENT COMPANY, INC. DISCLAIMS OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE. Please save shipping carton in the event the equipment needs to be returned to the factory for warranty repair. -
Page 17: Notes
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual Notes -13- K4304X-Manual... -
Page 18: Notes
K4304X High Temperature 'Sequence IV' Liquid Foam Test Bath Operation and Instruction Manual Notes -14- K4304X-Manual...
