K1223X

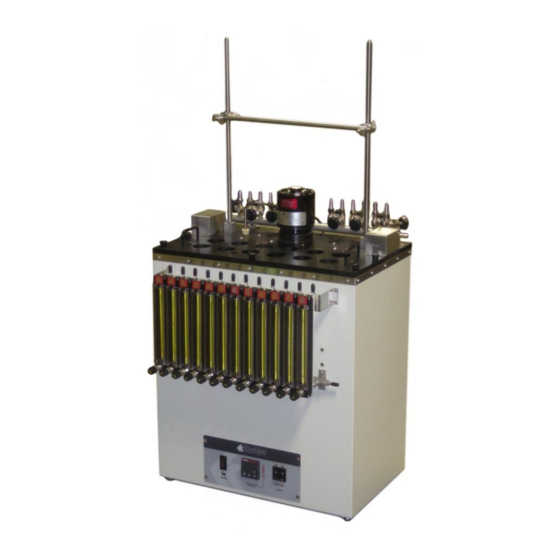

High Temperature Convertible Oxidation
Bath
Operation and Instruction Manual
REV C
Koehler Instrument Company, Inc.
1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA
Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815
http://www.koehlerinstrument.com • e-mail: info@koehlerinstrument.com
Petroleum Testing & Analysis Instrumentation • Custom Design & Manufacturing
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Koehler K1223 Series
Summary of Contents for Koehler K1223 Series
- Page 1 Bath Operation and Instruction Manual REV C Koehler Instrument Company, Inc. 1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815 http://www.koehlerinstrument.com • e-mail: info@koehlerinstrument.com...
- Page 3 NF T 60-150 This unit is tested before it leaves the factory, to ensure total functionality and compliance to the above specifications and ASTM standards. Test and inspection records are on file for verification. Jesse Kelly Application Engineer Koehler Instrument Company K1223X-Manual...
- Page 4 K1223X High Temperature Convertible Oxidation Bath Operation and Instruction Manual K1223X-Manual...
-
Page 5: Table Of Contents
K1223X High Temperature Convertible Oxidation Bath Operation and Instruction Manual Table of Contents 1 Introduction ........................5 1.1 Koehler’s Commitment to Our Customers ..................... 5 1.2 Recommended Resources and Publications ..................5 1.3 Instrument Specifications ........................6 2 Safety Information and Warnings ................6 3 Getting Started....................... - Page 6 K1223X High Temperature Convertible Oxidation Bath Operation and Instruction Manual 12 Warranty ........................16 13 Returned Goods Policy ....................17 Notes ..........................18 K1223X-Manual...
-
Page 7: Introduction
Case postale 56 provide you with the best solutions. You can CH-1211 Geneva 20, Switzerland depend on Koehler for a full range of accurate and Tel: 41 22 749 01 11 reliable instrumentation as well as support for your Fax: 41 22 733 34 30 laboratory testing programs. -
Page 8: Instrument Specifications
K1223X High Temperature Convertible Oxidation Bath Operation and Instruction Manual – Bath Medium: Silicone Heat Transfer 12205: Petroleum Products Fluid Determination of the Oxidation Stability of Middle Distillate Fuels Dimensions: 25.5 x 24 x 42 (w x d x h, in.(cm)) (65 x 61 x 107) 3. -
Page 9: Getting Started
When submitting a claim for shipping damage, request that the carrier inspect the shipping container and equipment. Do not return goods to Koehler without written authorization. Setup Equipment Placement. Place the instrument on a firm, level table in an area with adequate ventilation or in a hood. -
Page 10: Descriptions
K1223X High Temperature Convertible Oxidation Bath Operation and Instruction Manual 4 Descriptions contacted with oxygen in the presence of water and an iron-copper catalyst at an Instrument Controls elevated temperature. 8. Water Outlet. Water exit location of internal oxygen cooling manifold system. - Page 11 K1223X High Temperature Convertible Oxidation Bath Operation and Instruction Manual 250-000-40C ASTM 40C Thermometer For ASTM D2893: Range: 72 to 126°C Part Number Description K122-0-18 Oxygen Delivery Tube 380-100-001 Silicone Carbide Paper Used to polish steel and copper K122-0-19 Oxidation Test Tube wire prior to winding into catalyst coils.
-
Page 12: Temperature Controller Operation
Operation and Instruction Manual required, please do not hesitate to contact Temperature Controller Operation the Koehler technical service department. Setting the Temperature. Set the desired operating temperature by adjusting the set point with the up and down keys. The set point... -
Page 13: Operation
Nevertheless, it is Above 110°C Koehler supplies a clear silicone heat recommended that the flowmeter settings be transfer fluid (part # 355-001-002) with checked periodically. -
Page 14: Safety Features
Operation and Instruction Manual Barometric Pressure 764.0 mm of Hg 6 Safety Features Scale Reading (mm) Flow (mL/min) The Koehler K12230 / K12239 Convertible 73.0 Oxidation Bath is equipped with several safety and 63.7 protection features, which are described in the 56.8 following sections. -
Page 15: Maintenance
If you have any questions about maintaining your equipment, then please do not hesitate to contact the Koehler technical service department. Routine Maintenance The K12330 / K12339 Convertible Oxidation Bath requires little routine maintenance to provide many years of continuous service. -
Page 16: Wiring Diagrams
K1223X High Temperature Convertible Oxidation Bath Operation and Instruction Manual 8 Wiring Diagrams K12230 Unit Wiring K1223X-Manual... -
Page 17: K12239 Unit Wiring
K1223X High Temperature Convertible Oxidation Bath Operation and Instruction Manual K12239 Unit Wiring K1223X-Manual... -
Page 18: Troubleshooting
Make sure the connector plug on the rear panel is firmly plugged in. Warranty Unit is on but bath does not heat up We, at Koehler, would like to thank you for your equipment purchase, which is protected by the Make sure that the actual temperature following warranty. - Page 19 If the carton is discarded, it will be the purchaser’s responsibility to provide an appropriate shipping carton. Returned Goods Policy To return products for credit or replacement, please contact Koehler Customer Service with your purchase order number, packing list/invoice number, the item(s) to be returned and the reason for the return.
- Page 20 K1223X High Temperature Convertible Oxidation Bath Operation and Instruction Manual Notes K1223X-Manual...
