K430X5
D892 and D6082 Dual Twin

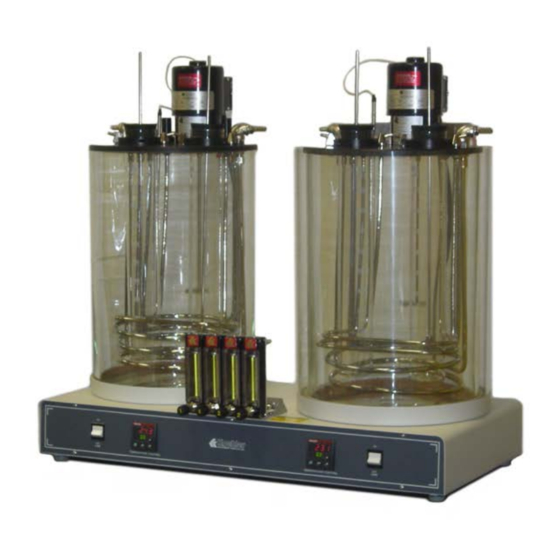

Foaming Characteristics Test Apparatus
Operation and Instruction Manual
REV C
Koehler Instrument Company, Inc.
1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA
Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815
http://www.koehlerinstrument.com • e-mail: info@koehlerinstrument.com
Petroleum Testing & Analysis Instrumentation • Custom Design & Manufacturing
Advertisement
Table of Contents
Related Manuals for Koehler K430 5 Series
Summary of Contents for Koehler K430 5 Series
- Page 1 Foaming Characteristics Test Apparatus Operation and Instruction Manual REV C Koehler Instrument Company, Inc. 1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815 http://www.koehlerinstrument.com •...
- Page 3 NF T 60-129 This unit is tested before it leaves the factory, to ensure total functionality and compliance to the above specifications and ASTM standards. Test and inspection records are on file for verification. Jesse Kelly Application Engineer Koehler Instrument Company...
-
Page 5: Table Of Contents
K430X5 D892/D6082 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual Table of Contents 1 Introduction ........................3 1.1 Koehler’s Commitment to Our Customers ..................... 3 1.2 Recommended Resources and Publications ..................3 1.3 Instrument Specifications ........................4 1.4 Software Specifications .......................... 4 2 Safety Information and Warnings ................ - Page 6 K430X5 D892/D6082 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual 12 Warranty ........................13 13 Returned Goods Policy ....................14 Notes ..........................15 K430X5-Manual...
-
Page 7: Introduction
3. Deutsche International Norm (DIN) to better understand your requirements and http://www.din.de provide you with the best solutions. You can depend on Koehler for a full range of accurate and DIN Publication: reliable instrumentation as well as support for your •... -
Page 8: Instrument Specifications
K430X5 D892/D6082 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual Instrument Specifications health practices and determine the applicability of regulatory limitations prior to use. Models: K43005, K43095 Equipment Modifications and Replacement Electrical Parts. Any modification or alteration of this Requirements: 115V, 60Hz, 15.6A equipment from that of factory specifications is not... -
Page 9: Getting Started
The unit may be leveled by making minor turning adjustments to the feet located at the base of the unit. Please note that Koehler does not supply a level with this equipment. Install the borosilicate test jars. Fill each jar with appropriate bath medium as per ASTM D892 and D6082. -
Page 10: Descriptions
K430X5 D892/D6082 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual 4 Descriptions cleaning and/or servicing, please be sure to disconnect unit power to avoid possible injury. Main Instrument Controls 5. Heat Shield. An 18” safety shield is provided to protect the user from accidentally touching the “Hot”... -
Page 11: Hot Bath Top Plate
K430X5 D892/D6082 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual 13. Conditioning Coil for Sample 2. Connect to for the sequence I,II and III procedures and low flow rate flowmeter. Air then flows through set the two left most flowmeters to this value. coil located within bath set at test temperature. -
Page 12: Temperature Controller Operation
IMPORTANT NOTE: digital 60.4 temperature controller for the unit comes 45.0 pre-programmed from the Koehler factory. 32.3 Please do NOT attempt to re-program the 22.0 digital temperature controller as this will void the product warranty. If assistance is Temperature Controller Operation required, please do not hesitate to contact the Koehler technical service department. -
Page 13: Operation
Auto Tune. This routine allows the digital temperature control to learn the heating Above 110°C Koehler supplies a clear silicone heat parameters needed for any particular set point transfer fluid (part # 355-001-002) with temperature. This operation should be done high oxidation resistance and low volatility. -
Page 14: Safety Features
If you have any questions about The Koehler K430X5 D892/D6082 Dual Twin maintaining your equipment, then please do not Foaming Test Bath is equipped with several safety hesitate to contact the Koehler technical service and protection features, which are described in the department. following sections. -
Page 15: Replacement Parts
K430X5 D892/D6082 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual 7.2 Replacement Parts Part Number Description 091-240-004 Solid State Relay, 240V Thermometer / Probe Holder 265-400-002 RTD Temperature Probe 275-103-044 Temperature Controller, 100-240V, 50/60Hz 7A 278-001-002 Fuse, 1A, Slo-Blo, 5 X 20 mm 332-001-003 12 x 18 Borosilicate Bath Jar K23425-03000... -
Page 16: Wiring Diagrams
K430X5 D892/D6082 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual 8 Wiring Diagrams Unit Wiring -12- K430X5-Manual... -
Page 17: Troubleshooting
Warranty Unit is on but bath does not heat up We, at Koehler, would like to thank you for your • Make sure that the actual temperature equipment purchase, which is protected by the reading is not higher than the set-point following warranty. - Page 18 If the carton is discarded, it will be the purchaser’s responsibility to provide an appropriate shipping carton. Returned Goods Policy To return products for credit or replacement, please contact Koehler Customer Service with your purchase order number, packing list/invoice number, the item(s) to be returned and the reason for the return.
- Page 19 K430X5 D892/D6082 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual Notes -15- K430X5-Manual...
- Page 20 K430X5 D892/D6082 Dual Twin Foaming Characteristics Test Bath Operation and Instruction Manual Notes -16- K430X5-Manual...
