K19404 / K19494

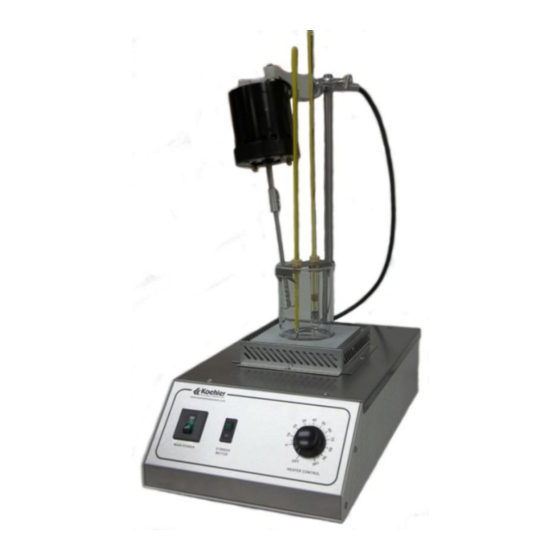

Dropping Point Apparatus
Operation and Instruction Manual
REV A
Koehler Instrument Company, Inc.
1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA
Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815
http://www.koehlerinstrument.com • e-mail: info@koehlerinstrument.com
Petroleum Testing & Analysis Instrumentation • Custom Design & Manufacturing
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Koehler K19404
Summary of Contents for Koehler K19404
- Page 1 K19404 / K19494 Dropping Point Apparatus Operation and Instruction Manual REV A Koehler Instrument Company, Inc. 1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815 http://www.koehlerinstrument.com •...
- Page 3 CERTIFICATE OF CONFORMANCE Dropping Point Apparatus K19404, K19494 This certificate verifies that part number K19404, K19494, Dropping Point Apparatus, was manufactured in conformance with the applicable standards set forth in this certification. Specifications: ASTM D566 ASTM D4950 IP 132 ISO 2176...
- Page 5 K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual K19404, K19494-Manual...
- Page 6 K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual K19404, K19494-Manual...
- Page 7 Responsibility for Registration and Annual Reporting: Koehler will not sell directly to end users in the EU and so has no responsibility to register within each EU state and to make annual reports. Koehler declares that this responsibility is born by the importer who is the first level of the distribution chain and is subject to producer responsibility.
- Page 8 WEEE Marking Since Koehler products are subject to the WEEE Directive we must display the WEEE symbol shown above in accordance with European Standard EN 50419 on the equipment. It must be indelible, at least 5mm in height, and clearly legible.
-
Page 9: Table Of Contents
K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual Table of Contents 1 Introduction ........................6 1.1 Koehler's Commitment to Our Customers .................... 6 1.2 Recommended Resources and Publications ..................6 1.3 Instrument Specifications ........................7 2 Safety Information and Warnings ................. 7 3 Getting Started ....................... -
Page 10: Introduction
61 New Cavendish Street provide you with the best solutions. You can London, WIM 8AR, United Kingdom depend on Koehler for a full range of accurate and Tel: 44 (0)20 7467 7100 reliable instrumentation as well as support for your Fax: 44 (0)20 7255 1472 laboratory testing programs. -
Page 11: Instrument Specifications
K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual Instrument Specifications Models: K19404 2 Safety Information and Warnings K19494 Safety Considerations. this Electrical equipment may involve hazardous materials and Requirements: 115V 60Hz operations. This manual does not purport to 220-240V 50/60Hz address all of the safety problems associated with the use of this equipment. -
Page 12: Getting Started
We will assist you with your claim, if requested. When submitting a claim for shipping damage, request that the carrier inspect the shipping container and Figure 1: Packing List Components equipment. Do not return goods to Koehler without written authorization. K19404, K19494-Manual... -
Page 13: Setup
Plate. the feet located at the base of the unit. Please note that Koehler does not supply a level with this 3. Fill the Beaker with the specified heat transfer equipment. fluid to the prescribed level as stated in the standard test method. - Page 14 K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual WARNING: Be sure to completely Power Off instrument prior to performing any service of the instrument. This can only be done by switching the Power Switch to the OFF position. Turning the heating control dial to the...
-
Page 15: Operation
K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual the correct voltage as indicated on the serial 1. Place the smaller of the corks with groove plate on the back of the unit. (Figure 1, Item 6) and the cork ring guide (Figure 1, Item 5) on the thermometer to be 13. - Page 16 K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual 1. Suspend the fully prepared and assembled test tube apparatus in the oil bath through the tube 5. Turn the Temperature Control Dial (Figure 2, and thermometer support (Figure 1, Item 9) Item 3) Clockwise to begin heating the sample.
-
Page 17: Safety Features
Koehler technical Allow adequate time for heating coils to completely service department. cool before cleaning. -
Page 18: Troubleshooting
11 Warranty Check if Overpower Protection circuitry located We, at Koehler, would like to thank you for your equipment purchase, which is protected by the directly behind the temperature controller inside following warranty. If within one (1) year from the the front tray has been activated. -
Page 19: Returned Goods Policy
K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual 12 Returned Goods Policy To return products for credit or replacement, please contact Koehler Customer Service with your purchase order number, packing list/invoice number, the item(s) to be returned and the reason for the return. You will be issued a... -
Page 20: Notes
K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual Notes -16- K19404, K19494-Manual... - Page 21 K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual Notes -17- K19404, K19494-Manual...
- Page 22 K19404, K19494 Dropping Point Apparatus Operation and Instruction Manual Notes -18- K19404, K19494-Manual...
