UseR MANUAL
Mobility set for steeplechase barrier
type ZK-S0329
File: 2014-02-03
PRODUCT SUPPORT
Pawel Ciechanowski
p.ciechanowski@polanik.comm
Advertisement
Table of Contents
Related Manuals for Polanik ZK-S0329
Summary of Contents for Polanik ZK-S0329

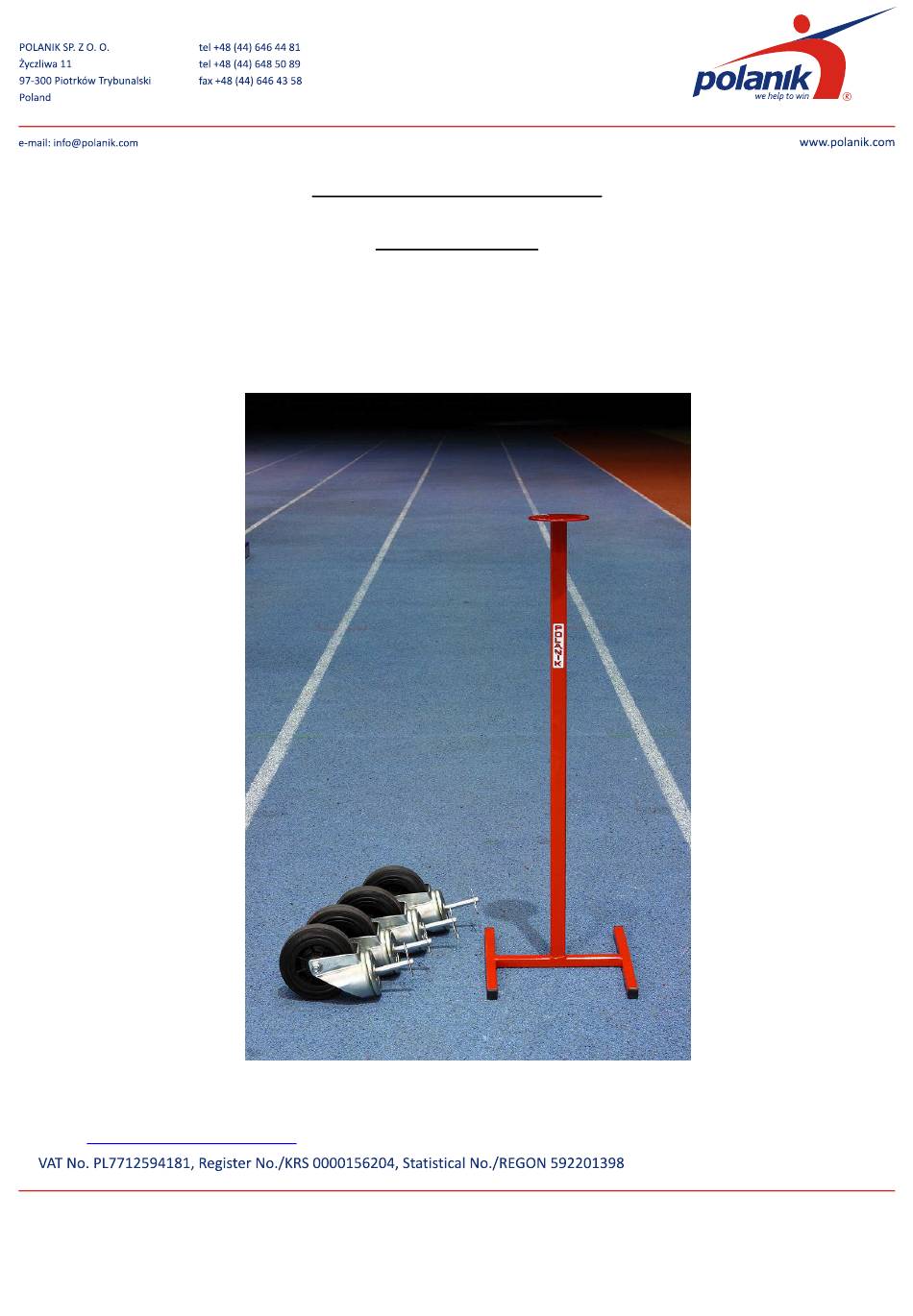

- Page 1 TECHNICAL SPECIFICATION USER MANUAL Mobility set for steeplechase barrier type ZK-S0329 File: 2014-02-03 PRODUCT SUPPORT Pawel Ciechanowski p.ciechanowski@polanik.comm...
- Page 2 I. General use and description Mobility set for steeplechase barrier ZK- S0329 is designed for fast and easy steeplechase barriers’ transport while taking a competition or training for a steeplechase race. It is destined to transport barriers type PP-366, PP-396, PP-500. Thanks to the bearing one person is able to transport the steeplechase barrier. II.
- Page 3 Take off the cotter pin and put the wheel’s axis in a hole in a steeplechase barrier’s foot. Then fasten the wheel using the cotter pin. Repeat the described above activities mount second wheel. Take off the steeplechase barrier of the bearing and support its second end(using bearing).
- Page 4 The steeplechase barrier is ready to transport. To dismount wheels use the bearing again. Take off cotter pins and put wheels’ axes out. The steeplechase barrier is ready to use. The set is packed in foil, gross weight 10 kg. IV.
