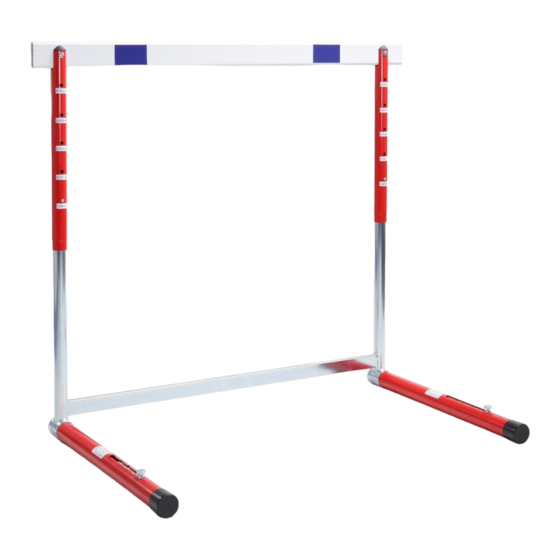

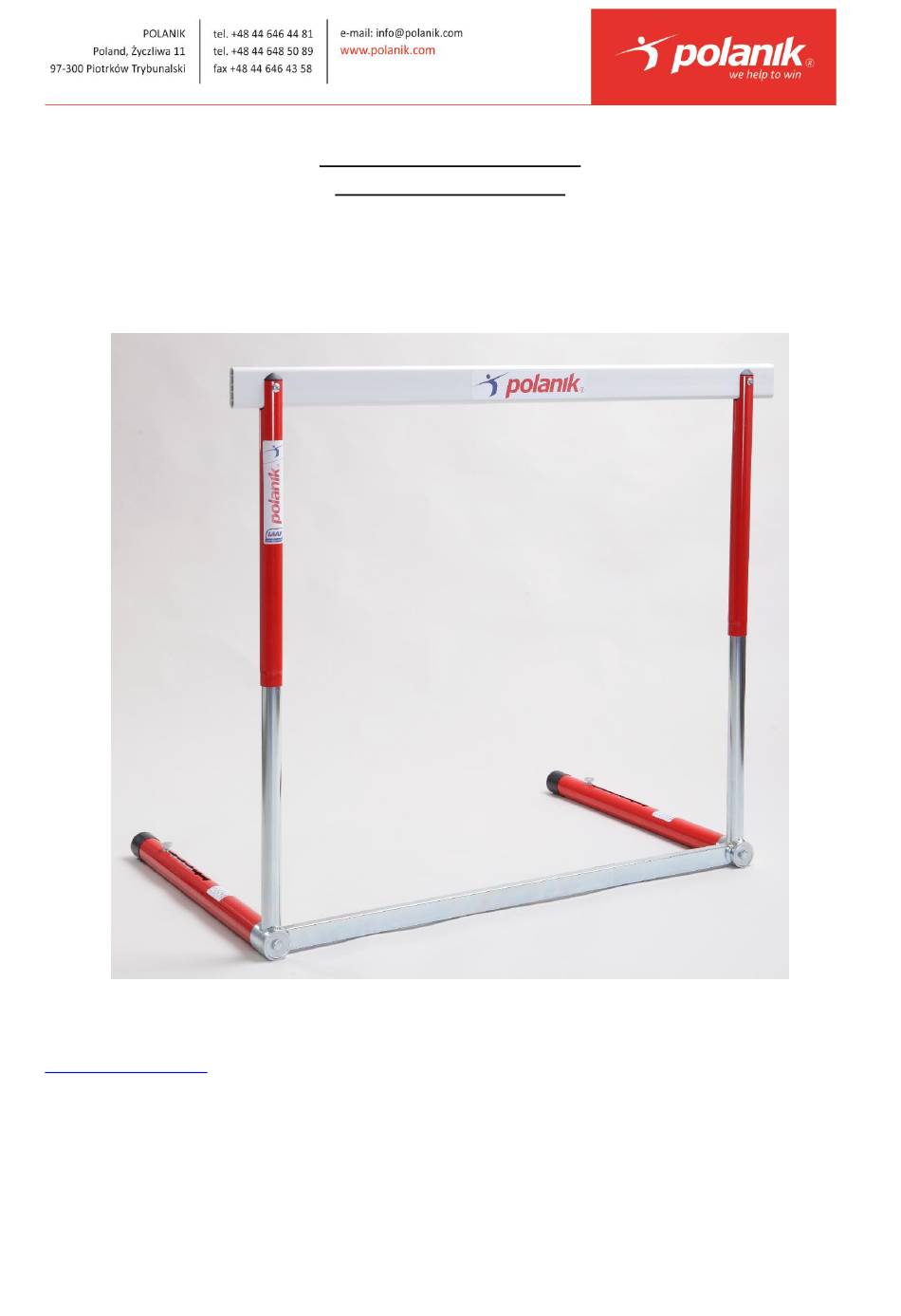

- Page 1 TECHNICAL SPECIFICATION INSTRUCTION MANUAL Competition steel-aluminium collapsible hurdle PP-171/6d File: 2019-02-26 PRODUCT SUPPORT Pawel Ciechanowski p.ciechanowski@polanik.com...
- Page 2 I. General description and use PP-171/6d is a resistant to weather, inexpensive in transport and high quality competition hurdle, which is designed for national and international competitions. Tech. specification and instruction manual PP-171 /6d 2 / 9...
- Page 3 II. Technical specification Code PP-171/6d Hurdle type competition collapsible certified Top board plastic, with inside ribbing aluminium anodized or powder painted* in red, spring-loaded button system of height Telescope tube adjustment Frame steel galvanized aluminium anodized or powder painted* in red, spring-loaded button system of counterweight...
- Page 4 III. Packing and transport The hurdles are put on pallets in parts (frames, feet Package type foiled pallet and foot screws separately) and wrapped with foil. contents 18 pcs length Dim. [cm] width height Volume m 0,96 Gross weight [kg] IV.
- Page 5 The main goal of the hurdle collapsible construction is to assure easy and cheap transport. Note that once you screw the feet down, the hurdle is practically non-dismountable. Therefore we do not recommend unscrewing the hurdle feet during idle periods. Removing the feet without proper tools can cause serious hurdle damages which Polanik shall not be liable for.
- Page 6 During idle periods the hurdles must be stored in a roofed dry place. For optimal performance they should be stored and transported on Polanik hurdle carts: HC-23 and HC-34. After every athletics season the hurdles must be cleaned from sand (mud, dust and etc). Special attention is required for the counterweight sliding mechanisms, which should be dismounted, cleaned and greased.
- Page 7 Before you begin the maintenance work, your should gather the following items: ▪ hurdle foot plastic plug for PP-171 (2 pcs for each hurdle) code: S-0008-001-00-00-05, ▪ grease (approx. 50g for each foot), ▪ wrench 19, ▪ hex key 5. The counterweight disassembly is done as follows: push down the foot catch and slide it toward the plastic plug, put hex key into the bolt M6 through the technological hole under the foot,...
- Page 8 slide out the counterweight carefully – pay attention to the stainless steel bearing balls installed in the bottom of the counterweight – they may fall out , and remove the bolt M6, Foot catch bolt Hurdle foot Spring Counterweight Foot plastic plug Bolt M6 g) take out the balls from their sockets, h) the counterweight, the ball sockets and the inside of the foot tube should be cleaned from dirt and old grease,...
- Page 9 VII. IAAF Certificate Tech. specification and instruction manual PP-171 /6d 9 / 9...
