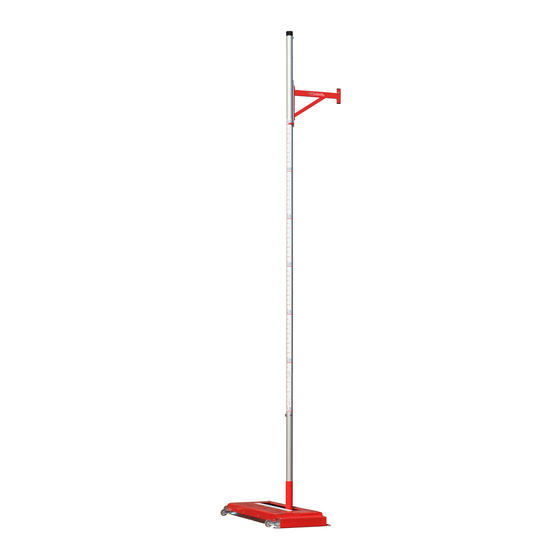

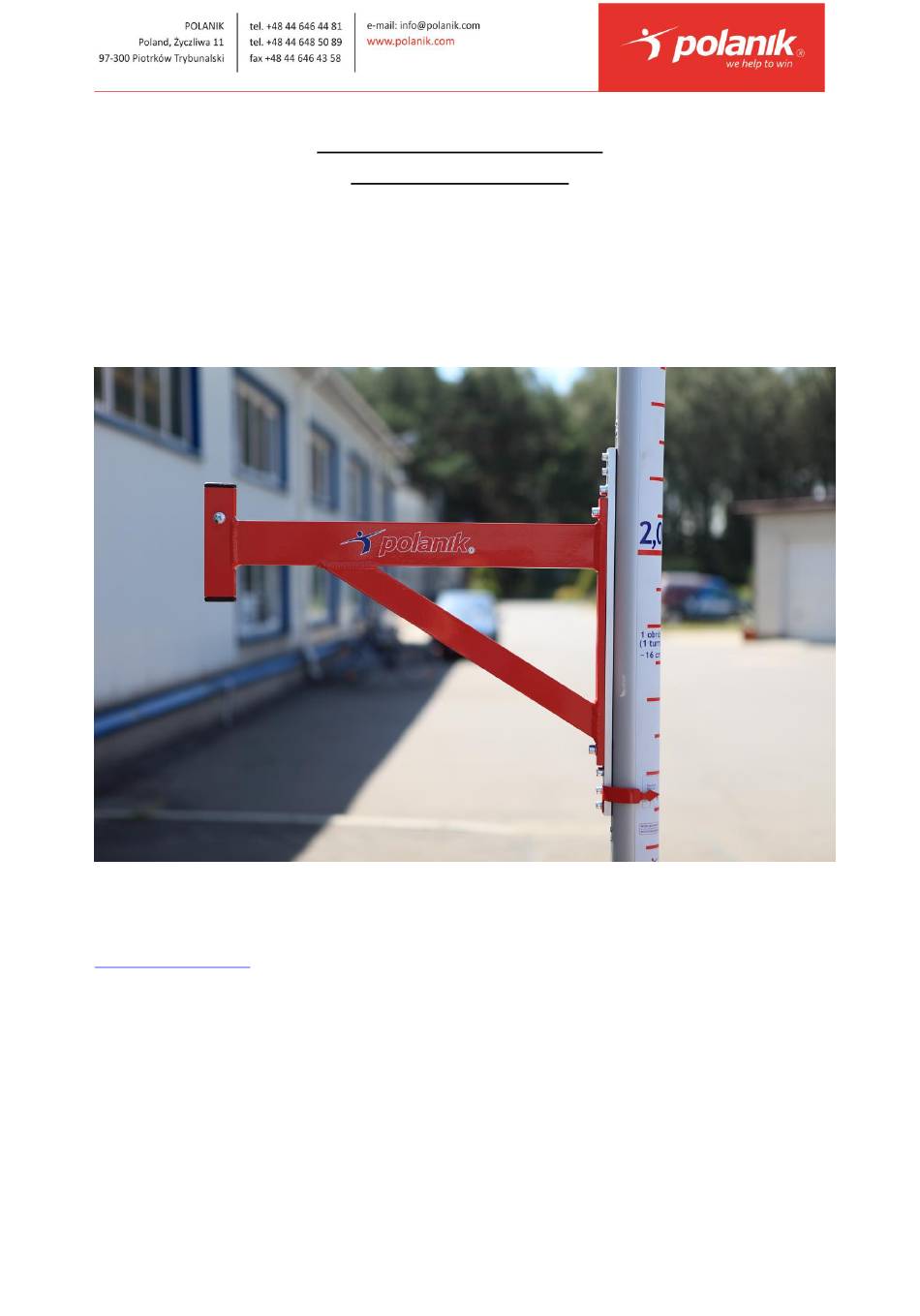

- Page 1 TECHNICAL SPECIFICATION ASSEMBLY MANUAL Pole vault training stands STT60-S295 STT45-S293 File: 20117-11-28 PRODUCT SUPPORT Paweł Ciechanowski p.ciechanowski@polanik.com...
- Page 2 In no event shall Polanik be liable for any special, incidental, indirect or consequential damages in connection with the purchase or use of POLANIK products or costs over the original cost of the product. Unauthorized copying of this manual, in whole or in part, is prohibited.
- Page 3 I. General use and description STT60-S295 and STT45-S293 are complete pole vault training stands sets. Both sets include the following elements: Q-ty Part/set description Part/set sketch Pcs. Base (s-0293-021-01-00-00 right; s-0293-022-01-00-00 left) Crossbar support (S-0293-021-07-00-00 right; S-0293-022-07-00-00 left) Post (S-0293-021-05-01-00 right;...
- Page 4 6,65 x 0,35 x 0,35 [m]- post packed in foil 6,65 x 0,35 x 0,35 [m]- post packed in foil 1,70 x 0,85 x 0,65 [m]- bases and crossbar supports on a pallet Gross weight - 160 kg. Technical specification/Assembly manual STT60-S295 STT45-S293 4/14...
- Page 5 STT45-S293 [mm] STT60-S295 Technical specification/Assembly manual STT60-S295 STT45-S293 5/14...
- Page 6 III. Assembly Step Description Image Unpack the product: remove a foil from a pallet and using two 19 wrenches unscrew nuts on each pallet’s corner, remove a foil from posts. Read all marks carefully. Technical specification/Assembly manual STT60-S295 STT45-S293 6/14...
- Page 7 Step Description Image Ease the screws using a metric wrench no. Put in the post. Tighten the screws using a wrench no. Fasten the crossbar support using a hex key no. 6. Technical specification/Assembly manual STT60-S295 STT45-S293 7/14...
- Page 8 Change the crank lever’s position from “transport position” to “work position”: unscrew a fastening nut, rearrange the crank lever, home the nut using a metric wrench no. 17. Transport assembled stands to the place of exploitation. Technical specification/Assembly manual STT60-S295 STT45-S293 8/14...
- Page 9 The concrete layer is to be dry and non-cracked. and result in serious For the installation of the anchors please see their producer’s instruction. accident or damages. Recommended concrete foundations are shown below: [mm] The stand bases situated in the foundations: [mm] Technical specification/Assembly manual STT60-S295 STT45-S293 9/14...
- Page 10 (not included). When the summer athletics season ends the stands (including the bases) must be dismounted and stored in a dry and roofed place. Technical specification/Assembly manual STT60-S295 STT45-S293 10/14...
- Page 11 BUYER and USER Signed for and in behalf of: POLANIK 2014-07 17 Piotrkow Tryb. (Date and place of issue) Pawel Ciechanowski Product Manager 6) ……………………………………… …………………………………………………………………………… (Name, function) (Signature or equivalent authorized by the issuer) Technical specification/Assembly manual STT60-S295 STT45-S293 11/14...
- Page 12 BUYER and USER Signed for and in behalf of: POLANIK 2014-07-17 Piotrkow Tryb. (Date and place of issue) Pawel Ciechanowski Product Manager 6) ……………………………………… …………………………………………………………………………… (Name, function) (Signature or equivalent authorized by the issuer) Technical specification/Assembly manual STT60-S295 STT45-S293 12/14...
- Page 13 VII. Images STT45-S293 © 2017 Polanik Technical specification/Assembly manual STT60-S295 STT45-S293 13/14...
- Page 14 STT60-S295 © 2017 Polanik Technical specification/Assembly manual STT60-S295 STT45-S293 14/14...
