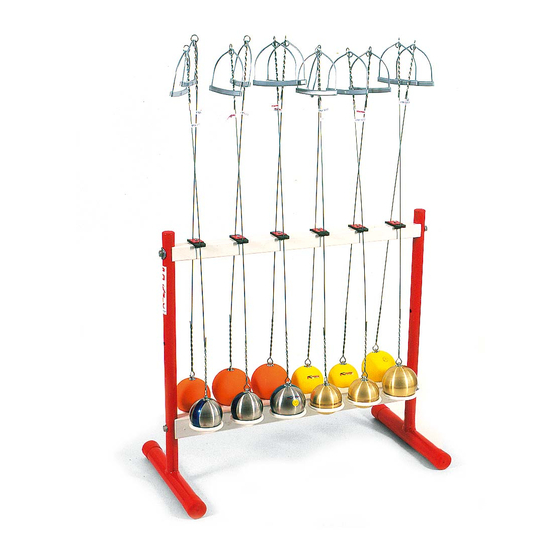

Polanik HR-12 Assembly Manual

Hammer racks

TECHNICAL SPECIFICATION

Hammer racks

HR-12

HR-12-w

File: 2014-07-15

PRODUCT SUPPORT

Paweł Ciechanowski

p.ciechanowski@polanik.com

Table of Contents

Do you have a question about the HR-12 and is the answer not in the manual?

Page 1 TECHNICAL SPECIFICATION ASSEMBLY MANUAL Hammer racks HR-12 HR-12-w File: 2014-07-15 PRODUCT SUPPORT Paweł Ciechanowski p.ciechanowski@polanik.com...
Page 2 Material Model Capacity[pcs] length/width/height [mm] steel powder HR-12 8,30 820/420/760 stationary painted HR-12-W 10,00 820/420/760 steel powder on wheels painted III. Packing and transport The rack is delivered in parts, packed in a cartoon box Technical specification/Assembly manual HR-12 HR-12-W...
Page 3 IV. Assembly The HR-12 rack should be screwed using M6x35 screws and pads Ø8. The rack HR-12-W should be screwed in the way the picture below shows. V. Operation and maintenance The rack should be stored in a roofed and dry place.
Page 4 VI. Declaration 1) No. 2013-12-04 2) Issuer’s name: POLANIK Sp. z o. o. Issuer’s address: Życzliwa 11, 97-300 Piotrków Tryb. 3) Declared items Name Code Stationary hammer rack HR-12 Hammer rack on wheels HR-12-W 4) Technical specification described above is in accordance with the factory’s internal engineering standard.
