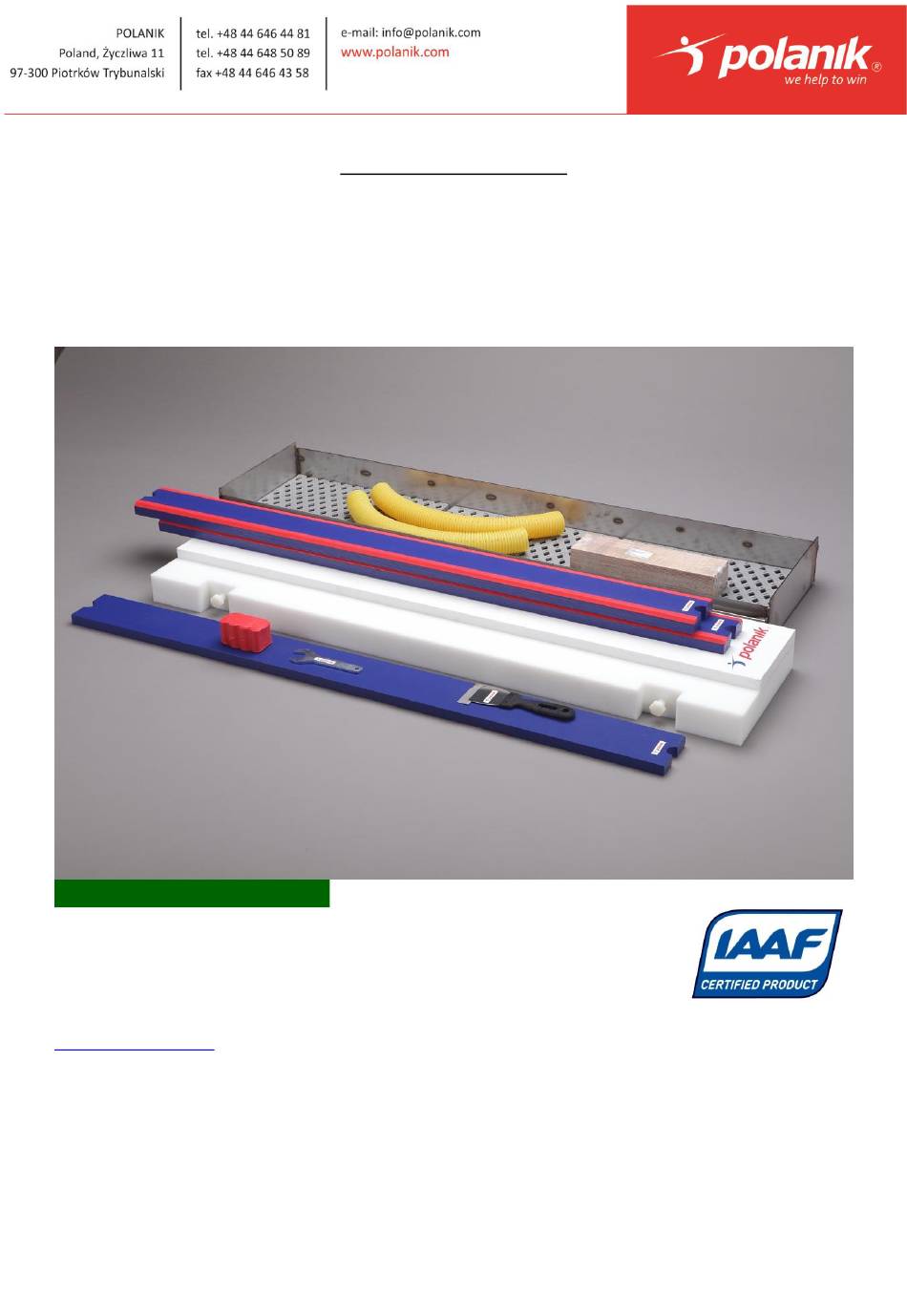

- Page 1 INSTRUCTION MANUAL Competition long jump and triple jump take-off board set with stainless steel foundation tray and plastic base board S14-250 (ver. 2017) SAFER JUMPS TECHNOLOGY File: 2018-02-13 PRODUCT SUPPORT Pawel Ciechanowski p.ciechanowski@polanik.com...
-
Page 2: Table Of Contents
VII. IAAF certificate I. General characteristics The take-off board S14-250 is designed for conducting sports events and training programs of horizontal jumps. Main features of the take-off board: construction according to the latest safety recommendations – no metal elements in take-off zone, so... -
Page 3: Parts List (Part Sets)
(draining tubes and spacing boards) K3-250 PCV base board K5-250 White take-off board with screws K1-250 Indicator plasticine board S-250-02-00 Training indicator board without plasticine S-250-02-03 Plasticine 300 g S-250-02-01 Instruction manual S14-250 ver. 2017 3/11... -
Page 4: Assembly And Installation
For any other competition, the distance shall be adjusted to competitors` level. The installation point of the tray (item 1) of the take-off board is presented below. Drawing no. 1. Installing the take-off board – general view Instruction manual S14-250 ver. 2017 4/11... - Page 5 1 and drawing no. 2), so that it does not deform while placing concrete. Deformations can make the plasticine board (item 4) or training board (item 5) block inside the tray. Image 1. Installed tray secured with spacing boards Instruction manual S14-250 ver. 2017 5/11...
- Page 6 During the embedding process of the tray (item 1), draining tubes can stick out over the foundation tray bottom. After the concrete setting, the sticking tube ends are to be cut off as close to the tray bottom as possible to ensure the correct water outflow. Instruction manual S14-250 ver. 2017 6/11...
- Page 7 (item 8). The bolts should be turned counterclockwise until the perceptible resistance occurs. When the plastic base board (item 2) is properly mounted, the indicator board (item 4 or item 5) can be put into the tray. Instruction manual S14-250 ver. 2017 7/11...
-
Page 8: Remarks On Maintenance And Operating
Even the best technical solutions cannot substitute for common sense. The usage of the product must take place under the supervision of qualified sports arena staff and trainers. The producer shall not be liable for any incidents caused by the improper take-off board installation, assembly or its misuse. Instruction manual S14-250 ver. 2017 8/11... -
Page 9: Technical Drawing - Installed Take-Off Board
– white take-off board (item 3) e – synthetic base board (item 2) f – athletics synthetic surface g – concrete h – plastic grid (item 9) i – ground j – draining tube Instruction manual S14-250 ver. 2017 9/11... -
Page 10: Additional Equipment, Available Separately
Set of 8 red plasticine straps, specially shaped, ready to be put into the indicator board recess, designed for the competition take-off boards. Rubber indicator board for competition board LG15-250 black full rubber indicator board designed for training Instruction manual S14-250 ver. 2017 10/11... -
Page 11: Iaaf Certificate
VII. IAAF certificate Instruction manual S14-250 ver. 2017 11/11...
