Summary of Contents for Polanik S14-250

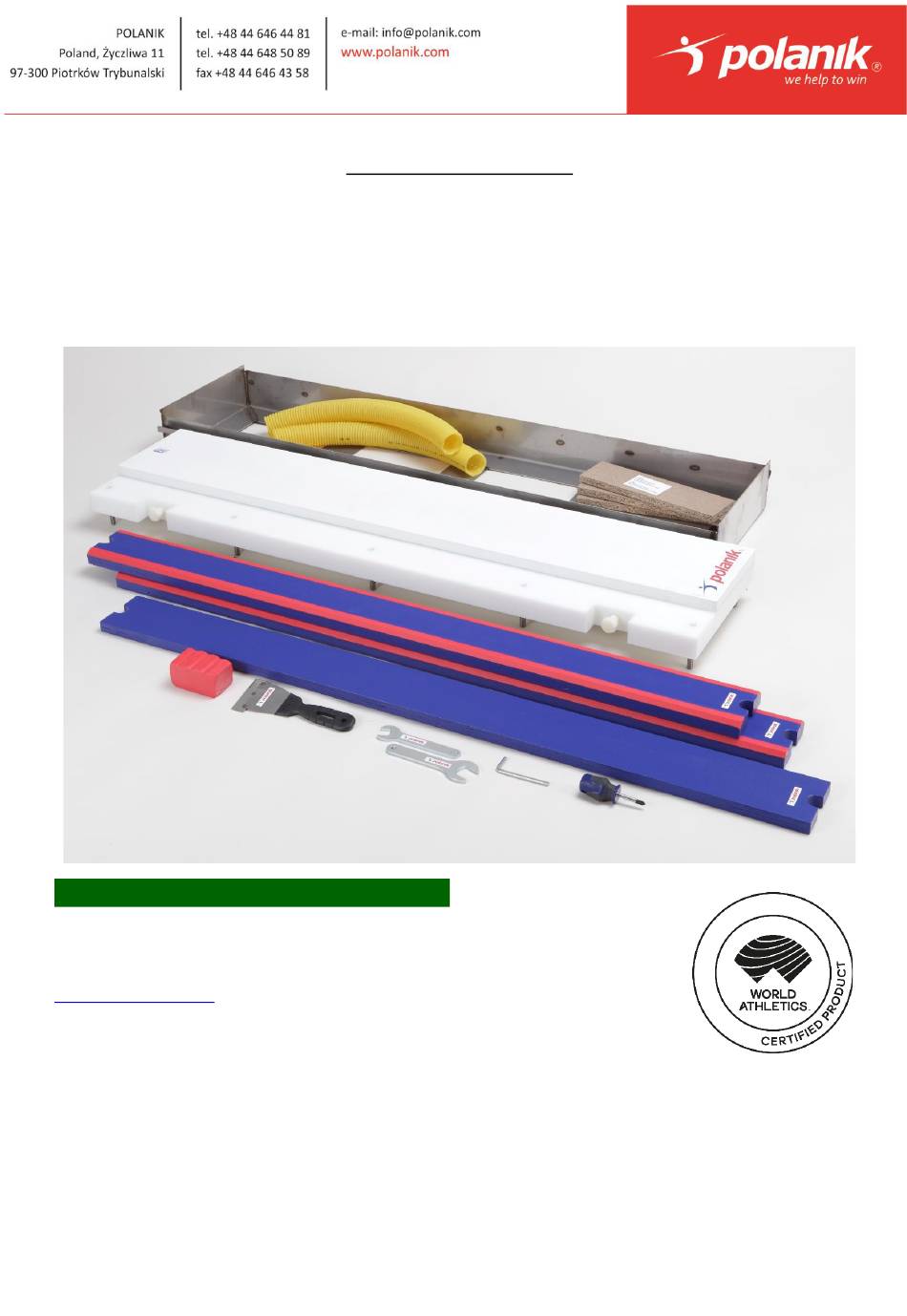

- Page 1 INSTRUCTION MANUAL Competition long jump and triple jump take-off board set with stainless steel foundation tray and synthetic adjustable base board S14-250 (ver. XI 2020) NEW TECHNOLOGY – EASIER OPERATION File: 2021-03-27 PRODUCT SUPPORT Pawel Ciechanowski p.ciechanowski@polanik.com...
-
Page 2: Table Of Contents
• Before you start to assemble and use the product please read this manual carefully and store the manual in a safe place for further reference. Polanik shall not be liable for any cage damages which are the result of the failure to follow this manual. -
Page 3: General Characteristics
1. General characteristics The take-off board S14-250 is designed for conducting sports events and training programs of horizontal jumps. Main features of the take-off board: • high safety – construction according to the latest recommendations – no metal elements in take-off zone,... - Page 4 Wrench - to block the supporting board in the tray Hex key to Tool set adjust the feet S-0250-ZM3- S14-250R Wrench - to block the feet Screwdriver to fasten white take-off board to base board Instruction manual S14-250 ver. 2020 4/15...
-
Page 5: Assembly And Installation
The long side edges (B) of the foundation tray are 13 mm lower, they should be covered by synthetic surface. short side edges (A) are to be flash with the top surface of the synthetic surface. Instruction manual S14-250 ver. 2020 5/15... - Page 6 2.), so that it does not deform while placing concrete. Deformations can make the plasticine board (item 4) or training board (item 5) block inside the tray. Image 1. Installed tray secured with spacing boards Instruction manual S14-250 ver. 2020 6/15...
- Page 7 During the embedding process of the tray (item 1), draining tubes can stick out over the foundation tray bottom. After the concrete setting, the sticking tube ends are to be cut off as close to the tray bottom as possible to ensure the correct water outflow. Instruction manual S14-250 ver. 2020 7/15...
-
Page 8: Installing The Take-Off Board Set In The Foundation Tray
3) of the base board (item 2) need to be re-regulated, so please do the following: - take out the whole set from the tray, - unscrew the white take-off board (item 3) from the base board (item 2) using the included screwdriver (item 11), Instruction manual S14-250 ver. 2020 8/15... - Page 9 - if the white take-off board is on the correct level, use the wrench to screw down the counter nuts to block the feet, - if the level of the white take-off board is still incorrect, continue to adjust the feet. Instruction manual S14-250 ver. 2020 9/15...
-
Page 10: Installing Indicator Boards
Put the plasticine indicator board (item 4) or training indicator board (item 5) into the tray next to the white take-off board (item 3) and the set is ready for use. Image 2. Set ready for use, mounted in the runway Instruction manual S14-250 ver. 2020 10/15... - Page 11 – screw to fasten white take-off board g – adjustable foot h – concrete foundation i – ground j – draining tube (item 1) k – synthetic surface of runway Drawing. 3. Installed take-off board set in embedded tray Instruction manual S14-250 ver. 2020 11/15...
-
Page 12: Remarks On Maintenance And Operating
Even the best technical solutions cannot substitute for common sense. The usage of the product must take place under the supervision of qualified sports arena staff and trainers. The producer shall not be liable for any incidents caused by the improper take-off board installation, assembly or its misuse. Instruction manual S14-250 ver. 2020 12/15... -
Page 13: Take-Off Board Set - Scheme Of Construction And Dimensions
– plasticine indicator board (item 4) d – white take-off board (item 3) e – synthetic base board with adjustable feet (item 2) f – screw to fasten white take-off board g – adjustable foot [mm] Instruction manual S14-250 ver. 2020 13/15... -
Page 14: Additional Equipment, Available Separately
Set of 8 red plasticine straps, specially shaped, ready to be put into the indicator board recess, designed for the competition take-off boards. Rubber indicator board for competition board LG15-250 black full rubber indicator board designed for training Instruction manual S14-250 ver. 2020 14/15... -
Page 15: Iaaf Certificate
7. IAAF certificate Instruction manual S14-250 ver. 2020 15/15...
