1M23N36902
6-Axis Flight Control
Instruction Manual
Instruction Manual
Before using your new gyro, please read this manual thoroughly and use the
gyro properly and safely. After reading this manual, store it in a safe place.
• No part of this manual may be reproduced in any form without prior permission.
• The contents of this manual are subject to change without prior notice.
• Futaba is not liable for any potential damage (accidental or otherwise) that may oc-
cur after installation.

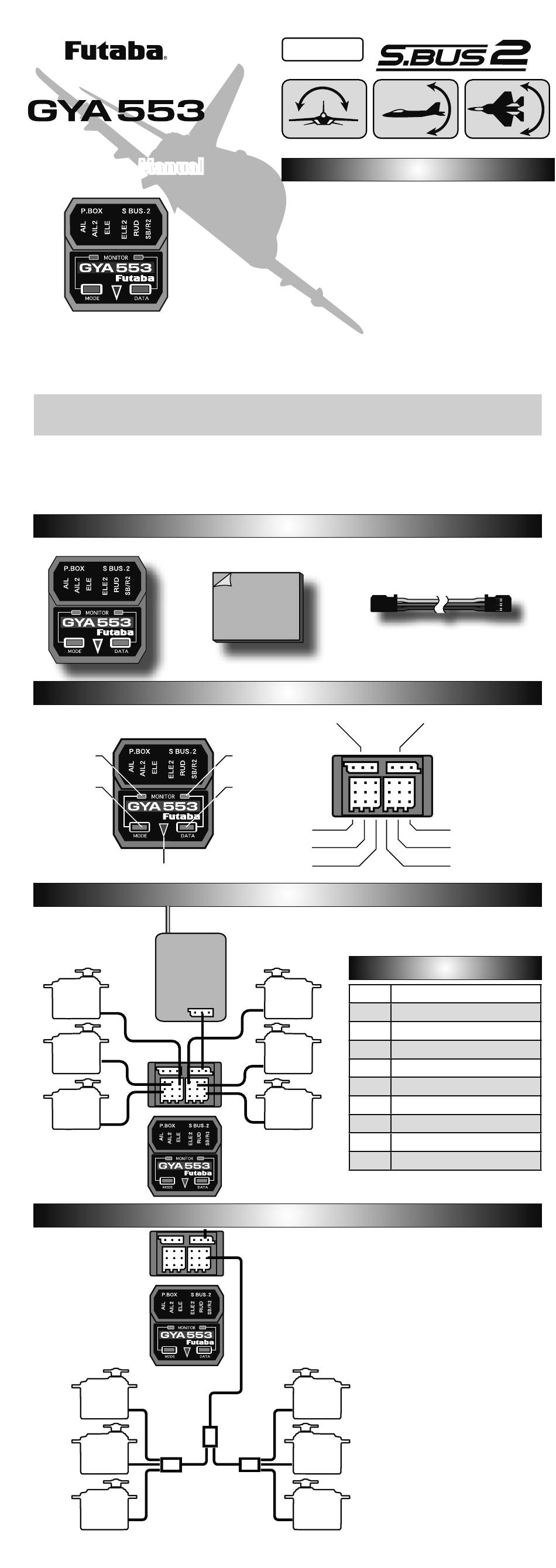

① GYA553 ×１
MODE LED
MODE SW
Head direction mark
・Connect to S.BUS 2
with the receiver con-
nection cable.
Elevator
Aileron 2
Aileron
Elevator
Aileron 2
Aileron
(Integrated sensor type rate gyro)
• Gyro sensor: MEMS vibrating structure gyro
• Operating voltage: DC 3.8 V to 8.4 V
• Current drain: 27 mA (excluding a servo)
• Operating temperature range: -10ºC to +45º
• Dimensions: 28 x 26 x 16 mm
                             (1.10 x 1.02 x 0.63 in)
• Weight: 8.5 g  (0.30 oz)
Set Contents
Set Contents
② Double-sided tape × 2
Each Part
Each Part
DATA LED
DATA SW
Aileron 1
Aileron 2
Elevator
Connection
Connection
S.BUS 2  Receiver
Elevator
S.BUS 2
Rudder
Rudder 2
*SB / R2 port switch-
ing is required when
using RUD 2
Servo S.BUS
Servo S.BUS
to SB/R2
For models
GYD553 Ratings
GYD553 Ratings
③ Receiver connection cable × 1
Program box
Transmitter function
Transmitter function
CH1
2
CH2
CH4
CH5
CH6
CH7
CH8
CH9
CH10 Recovery mode ON/OFF
CH11
・  18-channel S.BUS signal output terminal.
Servos other than gyro channels can also be
connected.
・  High-speed S.BUS output brings out gyro
performance.
Elevator
2
Rudder
Rudder 2
④ Manual × 1
S.BUS 2
S.BUS/Rudder 2
Rudder
Elevator 2
Aileron
Elevator
Rudder
Aileron Gain
Aileron 2
Elevator Gain
Rudder Gain
Elevator 2
Rudder 2
